Background

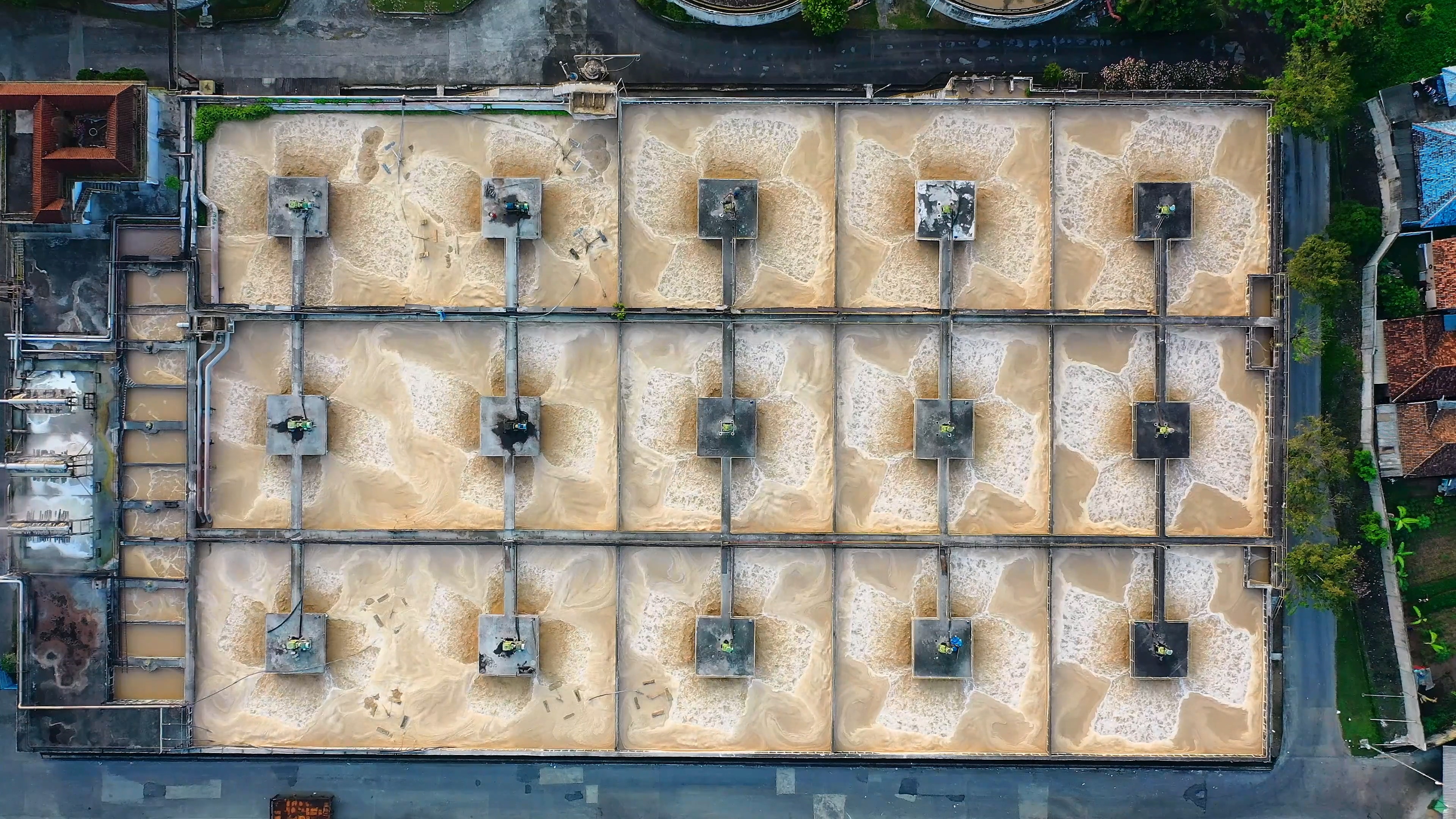

In the complex operational system of wastewater treatment plants, precise and efficient fluid control is crucial to ensure water quality compliance and smooth processes. GRAT’s IoT mini electric actuator and UPVC ball valve offer exceptional performance, making them a reliable assistant in wastewater treatment.
Operating Conitions
Valve Body Material: UPVC
Medium: Flocculant (PAC) / Sodium Acetate Solution (Carbon Source)
Medium Temperature: Normal
Voltage: AC 220V
Connection: Internal Thread
Operation Mode: Proportional control
Control Signal: 4-20 mA with feedback
Commissioning Date: December 2023
Expected Lifespan: 5 years
GRAT IoT Mini Actuator
This actuator is specifically designed for ball valves of DN25 and below, offering the following features:
- Powerful Drive and Energy Efficiency: Rated torque up to 20 NM, supports wide voltage input of AC220V/DC24V, with a rated power consumption of only 10W, combining energy savings with strong power.
- Precise Control and Excellent Performance: Utilizes PWM stepless speed regulation and encoder adjustment, enabling precise control within a range of 30%-100% with a control accuracy of up to 0.5%, ensuring fine-tuning of flow and pressure.
- Stable and Reliable Core Power: Equipped with a high-performance brushless motor, built-in overload protection, ensuring more stable operation, longer lifespan, and lower maintenance costs.
- Flexible Integration and Smart Communication: Supports Modbus communication protocol, allowing flexible integration into control systems for real-time remote command reception and valve status feedback.
- User-Friendly Interface and Emergency Handling: Features an OLED Chinese display for intuitive real-time monitoring of operational status and parameters; supports manual operation with a hex key, facilitating debugging and emergency handling.
- Rapid Adaptation to Complex Environments: Stroke time requires only 15s-25s, ensuring quick response and tolerance to humid environments, fully suited for the complex working conditions of wastewater treatment plants.
GRAT UPVC Ball Valve
In various stages of wastewater treatment, UPVC ball valves have become an ideal choice for ensuring stable and efficient operation due to their corrosion resistance, cost-effectiveness, and fluid control characteristics:
- Influent Stage: Rapidly responds to changes in water quality and quantity, precisely adjusts the opening degree, ensures stable influent flow, and effectively prevents corrosion of the valve body by corrosive media.
- Pretreatment Stage: Reasonably distributes flow to various units, adjusts flow velocity based on grid status, prevents clogging, ensures effectiveness, and significantly reduces maintenance costs.
- Biological Treatment Stage: Precisely controls aeration and chemical dosing flow based on IoT signals, optimizes dissolved oxygen and dosing amounts, and enhances treatment efficiency.
- Drainage Stage: With its sealing performance and smooth passage design, ensures stable discharge flow and pressure, integrates with monitoring equipment, and guarantees real-time compliance of drainage water quality.
The GRAT IoT mini ball valve is not only a precise breakthrough in fluid control technology but also a significant response to the era of smart water management. In today’s pursuit of green, low-carbon, and sustainable development, GRAT IoT mini ball valve provides solid support for promoting water resource recycling and improving environmental governance, making it an ideal choice for the wastewater treatment sector to face future challenges.With its stable and reliable operational performance and highly automated control capabilities, GRAT deeply integrates into the entire process chain of wastewater treatment, continuously empowering plants to achieve refined and intelligent operations.
