AC/DC Powered Compact Actuator for Intelligent Control and Accurate Positioning
Product Description:

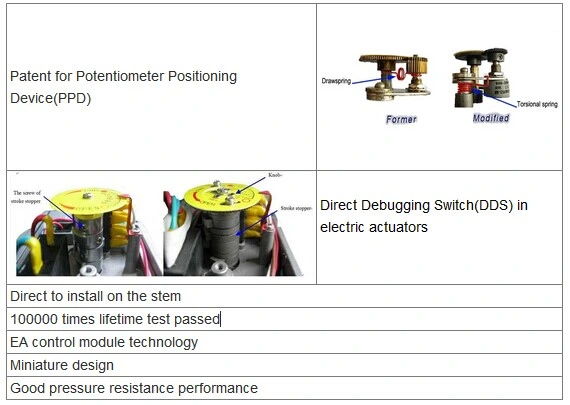

AC/DC Powered Compact Actuator / IP67/PPD /DDS
Description:
In automated regulation systems, the intelligent angular stroke electric actuator responds to signals from regulating instruments, executing precise 0-90° rotations to control valve openings. It offers remote control via RS485 communication and manual control options. Powered by AC or DC, it accepts digital signals from computers or instruments, as well as standard 4-20mADC or 0-10VDC analog signals, enabling intelligent control and accurate valve positioning. Compatible with various angular stroke valves like ball valves, butterfly valves, and plug valves, it integrates seamlessly to form electric control valves, electric ball valves, electric butterfly valves, and other industrial automatic control electric valves.
Specification:
| Type | 20 | 50 | 100 | 200 | 400 | 600 | 1000 | 1500 | 2000 | |
| Characteristics | ||||||||||
| Output torque | 20NM | 50NM | 100NM | 200NM | 400NM | 600NM | 1000NM | 1500NM | 2000NM | |
| Action time(S) | 10/20 | 4/10 20/60 |
4/7 15/30/60 |
6/15 30/60 |
6/15 30/60 |
45 | 15/30 | 48 | 60/75 | |
| Gyration angle | 0-90° 0-360° |
0-90° 0-360° |
0-90° 0-360° |
0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | |
| Motor power(W) | AC220V | 6 | 10 | 25 | 40 | 90 | 90 | 120 | 140 | 140 |
| AC380V | ------- | 6 | 15 | 30 | 40 | 40 | 90 | 100 | -------- | |
| DC24V | 8 | 13 | 25 | 35 | 70 | 70 | --------- | --------- | ---------- | |
| Rated current(A) | AC220V | 0.16 | 0.16 | 0.32 | 0.35 | 0.54 | 0.64 | 0.96 | 0.98 | 1.03 |
| AC380V | --------- | 0.07 | 0.1 | 0.15 | 0.29 | 0.29 | 0.45 | 0.46 | --------- | |
| DC24V | 0.7 | 1.28 | 2.03 | 3.57 | 5.13 | 3.04 | --------- | -------- | -------- | |
| Weight(Kg) | 1.2 | 2.5 | 3.5 | 8 | 8.5 | 9 | 17 | 18 | 20 | |
| Power | AC 220V±10% 50HZ/60HZ, AC 380V±10% 50HZ/60HZ, DC24V | |||||||||
| Insulation resistance | 100MΩ/500VDC | |||||||||
| Anti-pressure level | 1500VAC 1Min | |||||||||
| Protection level | IP67(It is no leakage in water about 20 meters deep) | |||||||||
| Limited component | Power-driven: Fully open and close, limit switch. Manual: Mechanical stopper. |
|||||||||
| Protector | Overheat protector(self-recovery) | |||||||||
| Installation position | Any direction from 0 to 360 degree | |||||||||
| Electrical connection | M20*1.5 Waterproof cable connection, power wire, signal wire | |||||||||
| Ambient Temp. | -30ºC--60ºC | |||||||||

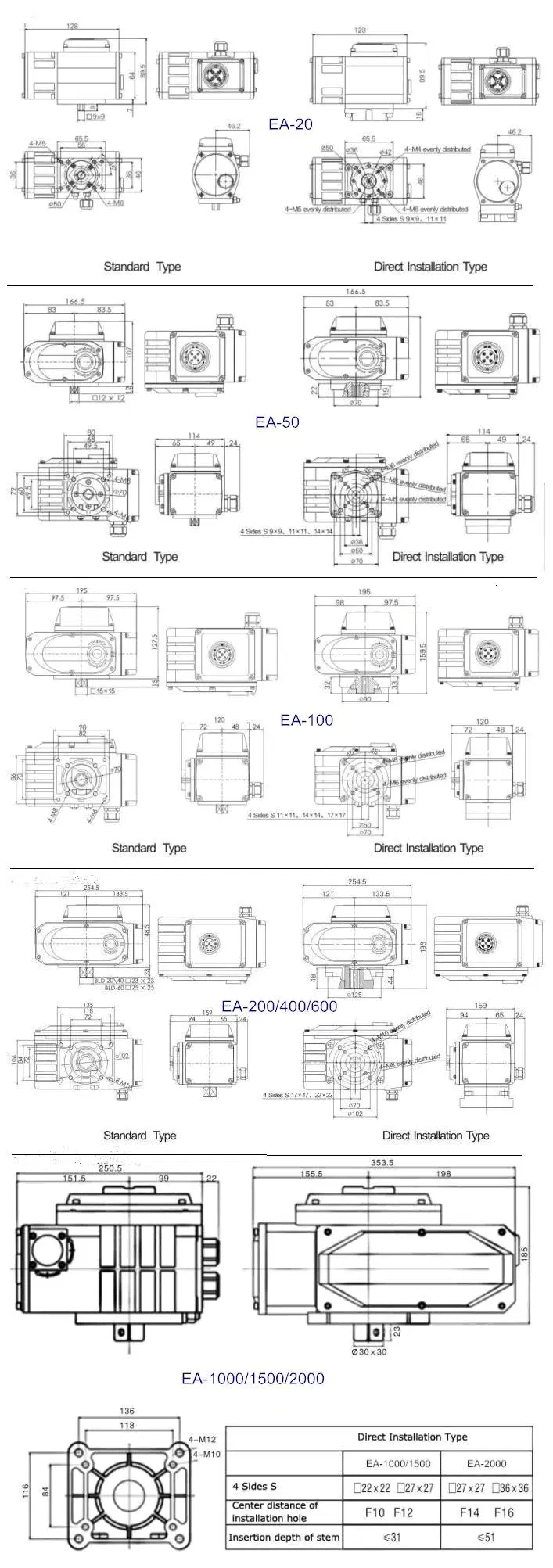

Installation Diagram

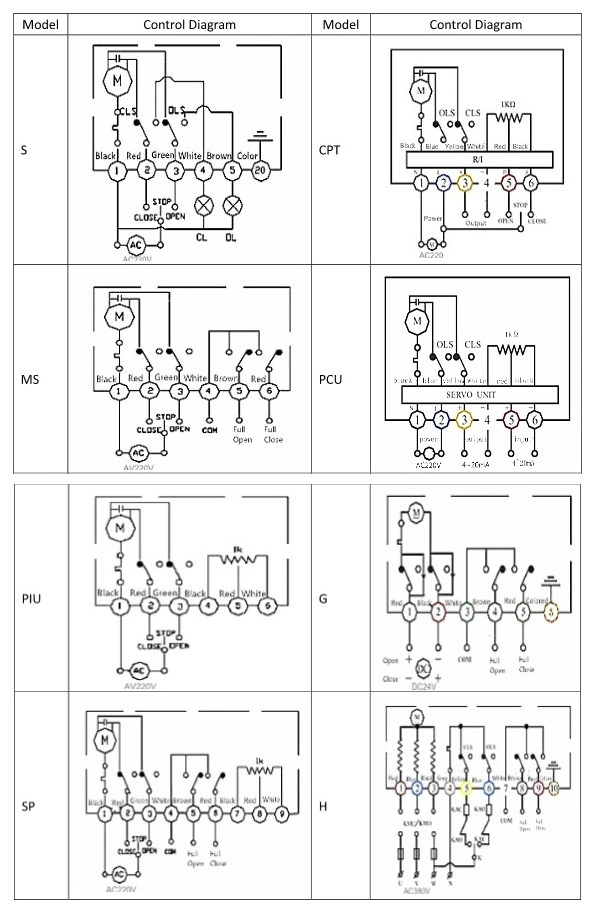

Control Diagram
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
| PIU | ON/OFF,output 0~1000Ω signal | G | ON/OFF,output passive contact signal |
| SP | ON/OFF,middle position control | H | ON/OFF,output passive contact signal |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
