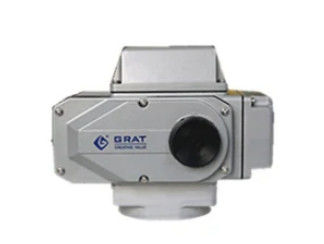

IP68 Stainless Steel Electronic Actuator With PPD Positioning Technology

Product Details

Place of Origin: Wuhan, Hubei, China

Brand Name: Grat

Certification: IP68,CCC, ISO, CE

Model Number: E20-2000NM

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: To Be Negotiated

Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case

Delivery Time: 3 working days

Payment Terms: L/C, T/T, D/P, PayPal, Western Union

Supply Ability: 1000PCS/Month

Get Best Price
Product Details
Highlight:

Stainless Steel Electronic Actuator

,

IP68 Electronic Actuator

Brand Name:
GRAT
Certifications:
IP68/CCC/ISO/CE
Minimum Order Quantity:
1 Pc
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Power Supply:
AC220V
Power Source:
Electric Power
Temperature:
Low Temperature
Connection:
Flange
Material:
Stainless Steel
Action Angle:
180 Is The Maximum Gyration Angle
Control Signal:
4-20mA Switch Energy
Modulation Accuracy:
0.3%
Connections:
Bracket And Shaft Sleeve Fix Actuator
Specification:
20-2000NM
Place Of Origin:
Wuhan, Hubei, China
Packaging Details:
Carton/Wooden Box
Delivery Time:
3 Working Days
Brand Name:
GRAT
Certifications:
IP68/CCC/ISO/CE
Minimum Order Quantity:
1 Pc
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Power Supply:
AC220V
Power Source:
Electric Power
Temperature:
Low Temperature
Connection:
Flange
Material:
Stainless Steel
Action Angle:
180 Is The Maximum Gyration Angle
Control Signal:
4-20mA Switch Energy
Modulation Accuracy:
0.3%
Connections:
Bracket And Shaft Sleeve Fix Actuator
Specification:
20-2000NM
Place Of Origin:
Wuhan, Hubei, China
Packaging Details:
Carton/Wooden Box
Delivery Time:
3 Working Days
Product Description

EA Series Electric Control Valve with PPD Positioning Technology for Simple Set-up



Product Description:



EA series electronic actuator/ IP67/Low Temperature



Description:

Grat Brand Series Compact Electric Actuator



EA series electronic actuator provides for simple safe and easy set-up via a built-in EA control module and

the unique PPD positioning technology patent.



Specification:



   Type 20 50 100 200 400 600 1000 1500 2000
 Characteristics
Output torque 20NM 50NM 100NM 200NM 400NM 600NM 1000NM 1500NM 2000NM
Action time(S) 10/20 4/10
20/60
4/7
15/30/60
6/15
30/60
6/15
30/60
45 15/30 48 60/75
Gyration angle 0-90°
0-360°
0-90°
0-360°
0-90°
0-360°
0-90° 0-90° 0-90° 0-90° 0-90° 0-90°
Motor power(W) AC220V 6 10 25 40 90 90 120 140 140
AC380V   ------- 6 15 30 40 40 90 100  --------
DC24V 8 13 25 35 70 70 --------- --------- ----------
Rated current(A) AC220V 0.16 0.16 0.32 0.35 0.54 0.64 0.96 0.98 1.03
AC380V --------- 0.07 0.1 0.15 0.29 0.29 0.45 0.46  ---------
DC24V 0.7 1.28 2.03 3.57 5.13 3.04 --------- --------  --------
Weight(Kg) 1.2 2.5 3.5 8 8.5 9 17 18 20
Power   AC 220V±10% 50HZ/60HZ,  AC 380V±10% 50HZ/60HZ, DC24V
Insulation resistance   100MΩ/500VDC
Anti-pressure level   1500VAC 1Min
Protection level   IP67(It is no leakage in water about 20 meters deep)
Limited component   Power-driven: Fully open and close, limit switch.
  Manual: Mechanical stopper.
Protector   Overheat protector(self-recovery)
Installation position   Any direction from 0 to 360 degree
Electrical connection   M20*1.5 Waterproof cable connection, power wire, signal wire
Ambient Temp.   -30ºC--60ºC

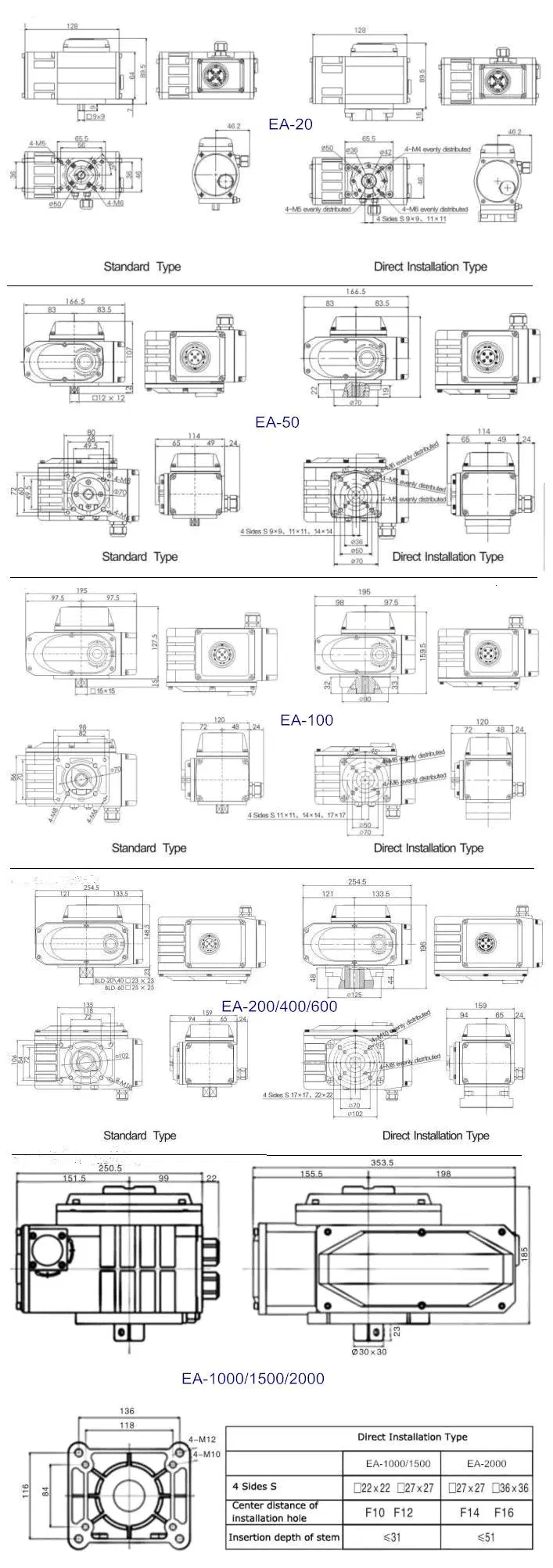

Installation Diagram


Ea Series Electronic Actuator

Control Diagram
Ea Series Electronic Actuator

Model Circuit Model Circuit
S ON/OFF,no output signal CPT ON/OFF,output 4~20mA signal
MS ON/OFF,output passive contact signal PCU Regulation,output 4~20mA signal
PIU ON/OFF,output 0~1000Ω signal G ON/OFF,output passive contact signal
SP ON/OFF,middle position control H ON/OFF,output passive contact signal



Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
