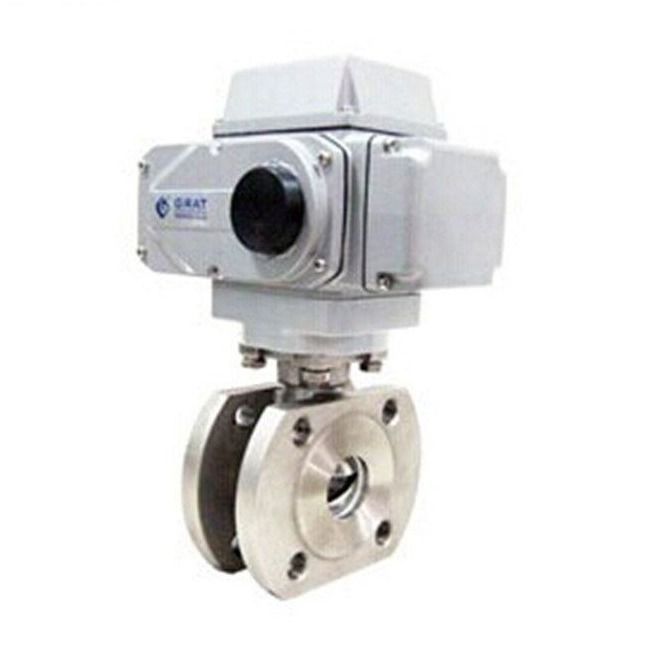

Quick Switch Electric Ball Valve
Product Description:
Quick Switch Electric Ball Valve/Flexible Ball Valve/Relief Valve
Description:
Specification:
| Valve size | DN15~DN100 | |
| Power supply | AC220V,AC380V, DC24V | |
| Temp. | ≤220ºC | |
| Ambient temp. | -30ºC-60ºC | |
| Body rating | 0.1~4.0MPa | |
| Purpose | Quick open and close | |
| Action time | 4S/7S(optional) | |
| Applicable medium | Water,Oil,Gas | |
| End connection | Flange, thread | |
| Seal type | two-sided sphere seal(zero leakage) | |
| Test pressure | Body test | 1.76MPa |
| Seal test | 2.4MPa | |
| Body material | WCB,SUS304,SUS316 | |
| Seal ring material | EPDM,PTFE,PPL,metal seat | |
| Protection level | IP67 | |
| Manufacturing standard | GB12237-89 AP16D | |
| Flange standard | JB79 GB9113 ANSI B16.5 JIS B2212 | |
| Structure and length standard | GB1221-89 | |
| Inspection standards | JB/T 9092 API598 | |
