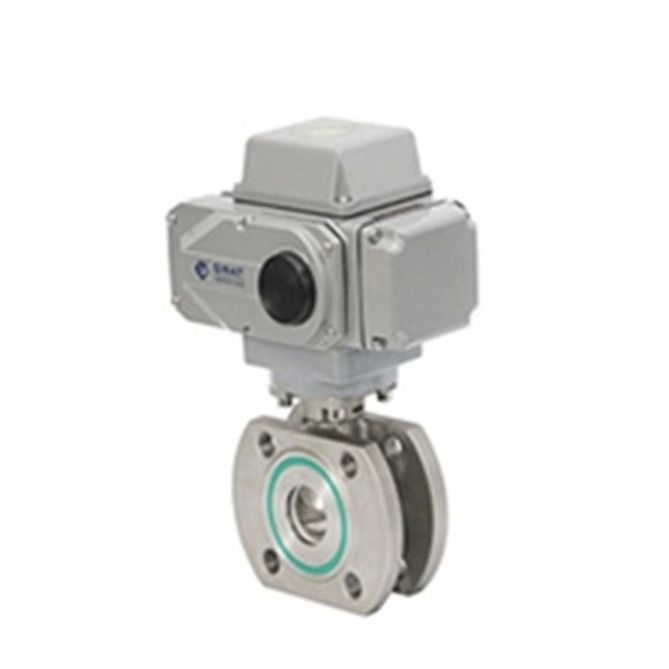

Vacuum Aspiration V-Notch Cut Control Ball Valve
Vacuum Aspiration V-Notch Cut Control Ball Valve
Basic Properties
Country Of Origin
Wuhan, Hubei, China
Brand Name
Grat
Certificate
CCC, ISO, CE
PRODUCT MODEL
EV-SERIES
Trading Properties
MOQ
1pc
Unit Price
USD $300.00-1000.00/ Piece
Payment Method
L/C, T/T, D/P, PayPal, Western Union
Supply Capacity
1000PCS/Month
Product Summary
Vacuum Aspiration V-Notch Cut Control Ball Valve Product Description: Vacuum Aspiration V-Notch Cut Control Ball Valve/Electric ball valve/V-type Description: The electric vacuum v-type ball valve is a kind of valve that control by the electric device to drive the body to do the rotary movement and ...
Product Details
Highlight:
Vacuum Aspiration Ball Valve
Brand Name:
GRAT
Certifications:
CE/ISO/CNAS
Minimum Order Quantity:
1 Pc
Delivery Time:
3 Working Days
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Gas
Material:
Stainless Steel
Connection Form:
Flange
Driving Mode:
Electric
Nominal Pressure:
PN1.0-32.0MPa
Channel:
Straight Through Type
Type:
Fixed Ball Valve
Temperature:
Normal Temperature
Application:
Industrial Usage, Water Industrial Usage, Household Usage
Place Of Origin:
Wuhan, Hubei, China
Structure:
Flexible Ball Valve
Function:
Relief Valve
Standard:
Jb/T 9092 API598
Applicable Medium:
Water, Oil, Gas
Packaging Details:
Carton/Wooden Box
HS Code:
8537109090
Product Description
Vacuum Aspiration V-Notch Cut Control Ball Valve
Product Description:
Vacuum Aspiration V-Notch Cut Control Ball Valve/Electric ball valve/V-type
Description:
The electric vacuum v-type ball valve is a kind of valve that control by the electric device to drive
the body to do the rotary movement and achieves the purpose of connecting or cutting off the air flow.
It has the characteristics of high flow conductivity and various connection forms and is a kind of
valve that can be used for both vacuum and pressure condition.
Suitable medium is air and weak corrosive gas dairy wine industry biological engineering food
pharmaceutical beverage chemical cosmetics and other fields often choose valve.And has been widely
used in the new energy industry and semiconductor industry.
Specification:
| Suited range | 16×105~6.7×10-4Pa (Thread connection ) 6×105~6.7×10-4Pa (Thread connection) 40×105~6.7×10-4Pa (Thread connection) 105~6.7×10-4 (Flange) |
| Leakage rate | ≤6.7×10-5Pa.L/S |
| Medium Temp. | -30~+150ºC(PTFE) -30~+260ºC(PPL) |
| Action time | 4S,10S,20S,30S |
| Installation mode | Install it in any angle |
| Power supply | Standard:AC220V/50HZ Optional:AC110V,DC24V |
| Feedback signal | Standard :Valve position indicator Optional:Intelligent(Control signal4-20mA) |
Product parameters
| Valve body caprod | Stainless steel |
| seal material | PTFE PPL. fluororubber |
Electric Vacuum V-type Ball Valve CV value
| Size | mm | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 |
| inch | 2" | 2.5" | 3" | 4" | 5" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" | 28" | 32" | 36" | 40" | 48" | |
| CV value Full 90°Open |
135 | 220 | 302 | 600 | 1022 | 1579 | 3136 | 5340 | 8250 | 11917 | 16388 | 21705 | 27908 | 43116 | 49500 | 68250 | 86375 | 119750 | 187300 | |
Size |
DN | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| inch | 1" | 1.25" | 1.5" | 2" | 2.5" | 3" | 4" | 5" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | |
| CV value | 36 | 56 | 94 | 152 | 262 | 358 | 540 | 906 | 1424 | 2176 | 3532 | 5732 | 8245 | 10651 | 12878 | 16343 | |
Wire Connection Diagram
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
