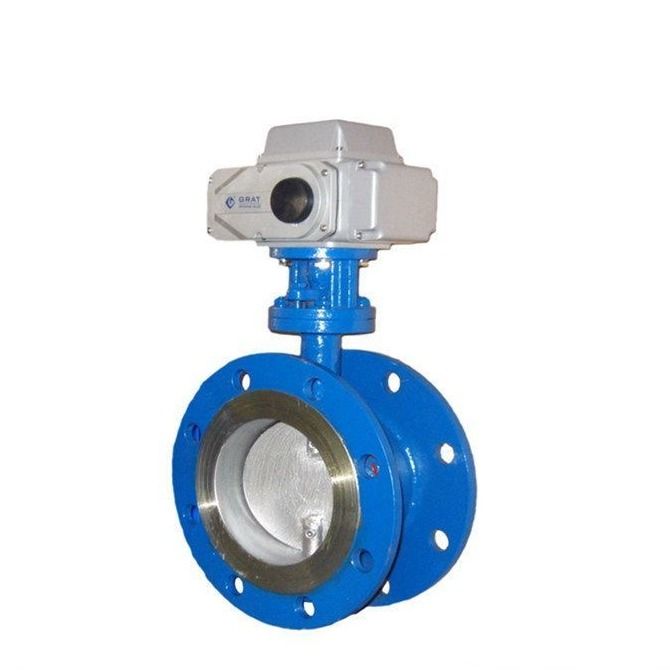

Gas Low Load Electric Actuated Butterfly Valve DIN Standard Single Eccentric Sealing
Gas Low Load Electric Actuated Butterfly Valve DIN Standard Single Eccentric Sealing
Basic Properties
Country Of Origin
Wuhan, Hubei, China
Brand Name
Grat
Certificate
CCC, ISO, CE, TUV
PRODUCT MODEL
EB-00008
Trading Properties
MOQ
1pc
Unit Price
USD $150.00/ Piece
Payment Method
L/C, T/T, D/P, PayPal, Western Union
Supply Capacity
1000PCS/Month
Product Summary
Gas Low-Load Electric Butterfly Valve Product Description: Gas Low-Load Electric Butterfly Valve/IP68 Description: As a gas modulation device & a two-way switch device, gas low-load electric butterfly valve is suitable to ventilation and dust removing pipeline in the industrial fields of metallurgy, ...
Product Details
Highlight:
Gas Electric Actuated Butterfly Valve
,Low Load Electric Actuated Butterfly Valve
,DIN Single Eccentric Butterfly Valve
Brand Name:
GRAT
Certifications:
CE/ISO/CNAS
Minimum Order Quantity:
1 Pc
Delivery Time:
7 Working Days
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Gas
Driving Mode::
Electric
Connection Form:
Wafer
Structure:
Single-Eccentric Sealing
Seal Form:
Auto Sealed
Valve Stem:
Normal
Working Temperature:
Low Temperature (-100°C
Valve Body:
Casting
Application:
Industrial Usage, Water Industrial Usage
Medium:
Vitriol, Acid, Chlorine, Alkali, Aqua Regia And Ot
Work Pressure:
Low Pressure (Pn<1.6mpa)
Material Of Seal Surface:
Soft Sealed
Standard:
DIN
Size:
Dn40-1000
Place Of Origin:
Wuhan, Hubei, China
Packaging Details:
Carton/Wooden Box
HS Code:
8481804090
Product Description
Gas Low-Load Electric Butterfly Valve
Product Description:
Gas Low-Load Electric Butterfly Valve/IP68
Description:
As a gas modulation device & a two-way switch device, gas low-load electric butterfly valve is
suitable to ventilation and dust removing pipeline in the industrial fields of metallurgy, mineral, cement,
chemical-engineering, power generation, industrial furnace and so on.
Specification:
| Power supply | AC220V 50/60HZ |
| Operating temperature | 0-450 Celsius degree (Optional) |
| Imput signal | 4-20mA |
| Output signal | 4-20mA |
| Body connections | Wafer /Flange(Optional) |
| Flow characteristics | Approximate EQ% |
| Body material | A3 Steel, Heat-resistance steel |
| Disc material | A3, Heat-resistant steel, SUS304 Stainless steel, SUS316 Stainless steel |
| Seal type | Open type, back-seated type (ultra high temperature application), sealed oblique plate type (room temperature application). |
| Valve size | DN100~DN2000 |
| Body ratings | 0.1~0.6MPa |
| Test pressure | Sealed 0.15Mpa; Body 0.11Mpa |
| Applicable temperature | < 200 Celsius degree Special: < 450 Celsius degree |
| Applicable medium | Smoke, air, gas |
| Manufacturing standards | JB/T8692-1998 |

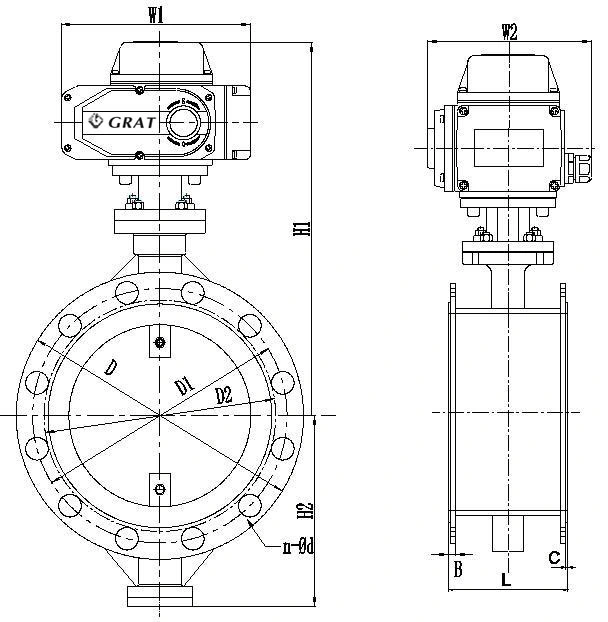

Installation Diagram
The material of main parts
Part name |
Body |
Disc |
Stuffing box |
Gland ring |
Seat |
Packing |
Stem |
Material trademark |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
WCB Stainless steel or lining |
WCB 40Cr ZG 1Cr18Ni9Ti |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
FEP |
FEP |
2Cr13 |
Applicable channelizing medium
Medium state |
Medium Temp. |
Medium pressure |
Medium characteristics |
Medium concentration |
Medium name |
Liquid |
-50ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
unlimited |
Acid, alkali, salt, chlorine gas, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reductant. |
Gas |
-50ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
unlimited |
|
Mixture of liquid and gas |
-50ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
<60% |
Control Diagram
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
