Wuhan Grat Control Valve Co., Ltd. nukiz@grat.com.cn 86-027-6070-6977
Product Details
Place of Origin: Wuhan, Hubei, China
Brand Name: Grat
Certification: CCC, ISO, CE, CNAS
Model Number: EB-00005
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD $100.00/ Piece
Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case
Delivery Time: 3 working days
Payment Terms: L/C, T/T, D/P, PayPal, Western Union
Supply Ability: 1000PCS/Month
Brand Name: |
GRAT |
Certifications: |
CE/ISO/CNAS |
Minimum Order Quantity: |
1 Pc |
Delivery Time: |
3 Working Days |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Water |
Driving Mode: |
Electric |
Connection Form: |
Wafer |
Structure: |
Centre Sealing |
Seal Form: |
Auto Sealed |
Valve Stem: |
Normal |
Channel: |
Straight Through Type |
Working Temperature: |
Normal Temperature (-40°C |
Valve Body: |
Casting |
Application: |
Industrial Usage, Water Industrial Usage |
Work Pressure: |
Pn1.6MPa- Pn2.5MPa |
Material Of Seal Surface: |
Soft Sealed |
Standard: |
DIN |
Place Of Origin: |
Wuhan, Hubei, China |
Packaging Details: |
Carton/Wooden Box |
HS Code: |
8481804090 |
Brand Name: |
GRAT |
Certifications: |
CE/ISO/CNAS |
Minimum Order Quantity: |
1 Pc |
Delivery Time: |
3 Working Days |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Water |
Driving Mode: |
Electric |
Connection Form: |
Wafer |
Structure: |
Centre Sealing |
Seal Form: |
Auto Sealed |
Valve Stem: |
Normal |
Channel: |
Straight Through Type |
Working Temperature: |
Normal Temperature (-40°C |
Valve Body: |
Casting |
Application: |
Industrial Usage, Water Industrial Usage |
Work Pressure: |
Pn1.6MPa- Pn2.5MPa |
Material Of Seal Surface: |
Soft Sealed |
Standard: |
DIN |
Place Of Origin: |
Wuhan, Hubei, China |
Packaging Details: |
Carton/Wooden Box |
HS Code: |
8481804090 |

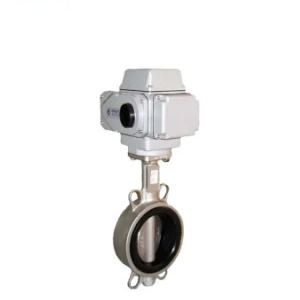

Wafer Stainless Steel Electric Control Butterfly Valve
Product Description:
Wafer Stainless Steel Electric Control Butterfly Valve/Wafer
Description:
Wafer stainless steel electric control butterfly valve supports non-pin structure to effectively
avoid the pin break off in a long- term operation, as a modulation device to control and cut off
the various industrial medium of water and oil to realize temperature, pressure and flow control,
This valve is suited to the pipeline and container of non corrosive gas, liquid, semi-liquid and
solid powder, and applied in the industrial fields of petroleum, chemical, food, medicine, textile,
papermaking, power, ship, city feed water and drainage, smelting energy and so on.
Features:
* Small volume and light weight, easy to disassemble and maintain, and can be installed in any position.
* Small pressure drops, Large flow capability.

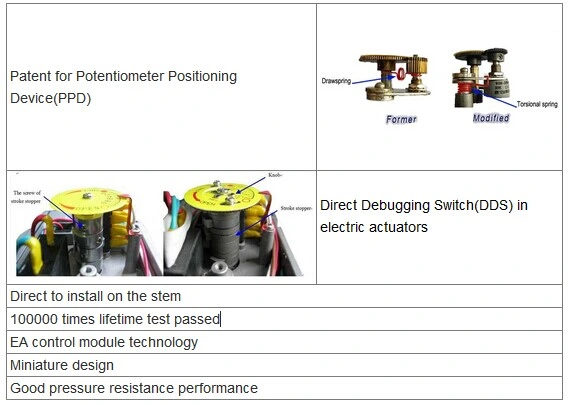

* The patent positioning technology.
* Small operating torque, energy saving.
* Linearity flow characteristics, the best control performance.
* Simple and compact structure, 90° gyration to open quickly.
* Long service life, good seal performance.
Specification:
| Body ratings | N1.0/PN1.6Mpa |
| Valve size | DN40-DN600 |
| Seal materia | Nitrile rubber/EPDM PTFE |
| Stem seal | NBR,HNBR,PTFE |
| Body material | SUS304/SUS316L/CF8/CF8L ;Stainless steel |
| Disc material | SUS304/SUS316L/CF8/CF8L ;Stainless steel |
| Body connections | Wafer |
| Power supply | AC220V |
| Control signal | 4~20mA 0~5V |
| Output signal | 4~20mA 0~5V |
| Operating pressure | PN1.6Mpa PN2.5Mpa |
| Medium Temp | ≤120ºC( The higher level of temperature resistance is prepared) |
| Ambient Temp. | ≤50ºC |
| Flow coefficient | Please download the data on our website for reference Custom flow coefficient depends on the customer's requirement. |
| Applicable medium | Water, oil, gas, corrosive medium. |

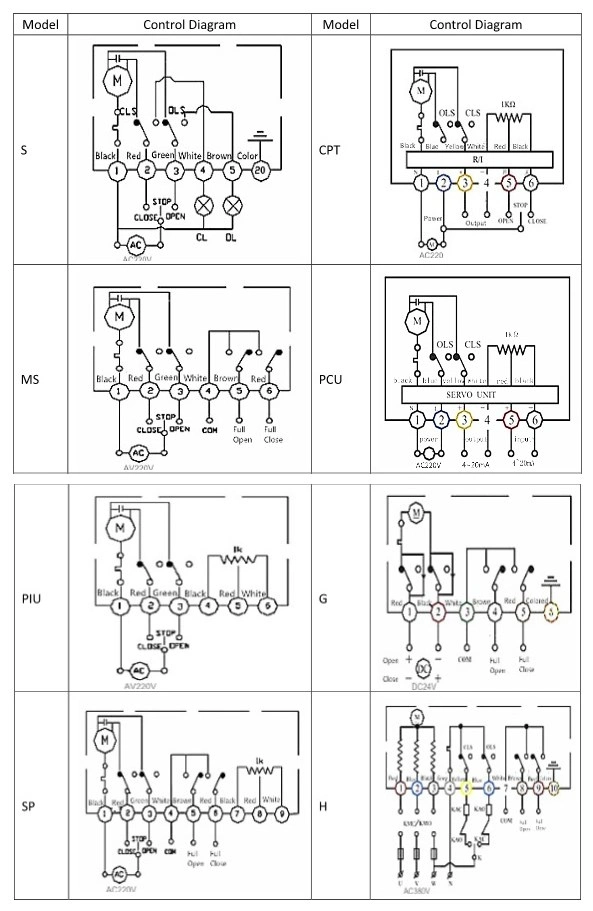

Installation Diagram
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
