Wuhan Grat Control Valve Co., Ltd. nukiz@grat.com.cn 86-027-6070-6977
Product Details
Place of Origin: Wuhan, Hubei, China
Brand Name: Grat
Certification: IP68,CCC, ISO, CE, IAF, Cans
Model Number: MA-series
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD $250.00-1000.00/ Piece
Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case
Delivery Time: 3 working days
Payment Terms: L/C, T/T, D/P, PayPal, Western Union
Supply Ability: 1000PCS/Month
Explosion-Proof Rating: |
Exd Ⅱ CT6 Gb |
Certifications: |
CCC, ISO, CE, IAF, Cans |
Power Supply: |
220V AC |
Power Source: |
Electric Power |
Temperature: |
Ordinary Temperature |
Connection: |
Standard/Stem Direct-Connected |
Material: |
Aluminum Alloy Enclosure |
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Delivery Time: |
3 Working Days |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Control Signal: |
Bus Communication, Analog Signal |
Torque: |
50n.M-200n.M |
Warranty Period: |
One Year |
HS Code: |
8481804090 |
Type: |
On/off, Regulating |
Multi-Turns: |
25 Turns |
Suited Valve Type: |
Ball Valve, V Type, Butterfly, Ventilation Valve |
Specification: |
<21KG |
Packaging Details: |
Carton/Wooden Box |
Place Of Origin: |
Wuhan, Hubei, China |
Explosion-Proof Rating: |
Exd Ⅱ CT6 Gb |
Certifications: |
CCC, ISO, CE, IAF, Cans |
Power Supply: |
220V AC |
Power Source: |
Electric Power |
Temperature: |
Ordinary Temperature |
Connection: |
Standard/Stem Direct-Connected |
Material: |
Aluminum Alloy Enclosure |
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Delivery Time: |
3 Working Days |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Control Signal: |
Bus Communication, Analog Signal |
Torque: |
50n.M-200n.M |
Warranty Period: |
One Year |
HS Code: |
8481804090 |
Type: |
On/off, Regulating |
Multi-Turns: |
25 Turns |
Suited Valve Type: |
Ball Valve, V Type, Butterfly, Ventilation Valve |
Specification: |
<21KG |
Packaging Details: |
Carton/Wooden Box |
Place Of Origin: |
Wuhan, Hubei, China |
Multi-Turn Explosion-Proof Electric Control Valve Actuator Standard Type, Stem Direct Cconnected Type
PRODUCT DESCRIPTION:
Multi-Turn Explosion-Proof Electric Control Valve Actuator/ IP68 / Multi-Turn
Description:
Multi-turn explosion-proof series electric actuators is the latest innovation of light miniaturization explosion-proof actuators. Explosion-proof electric actuator product level Exd II BT4 protective IP68 machine shell with maximum 25 turns by 0-360° worm wheel .
The products are exquisite and unique in appearance, small in size, light in weight , stable and reliable in performance.It is the ideal choice for gate valve, ball valve, diaphragm valve, ventilation valve ,damper ,fan, dynamic balancing valve, plug valve, gyrating valve and mechanical positioning rotation system.
Features:
* All electrical and mechanical components are sealed in aluminum alloy shell with high instant explosion resistance pressure of 1.6MPa isolating the ignition source effectively.
* With "o "ring seal up to protection grade IP68, Each explosion-proof surface adopts circular clearance and CNC precision machining to achieve stable and reliable explosion-proof performance

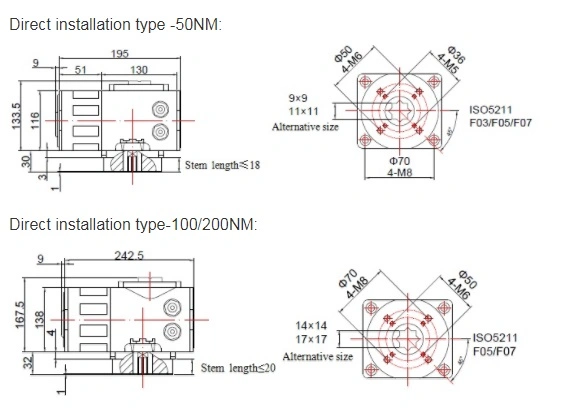

* Stem Direct-Connected type refer to IS05211
* Powered by 1-phase, 3-phase or DC power supplies
* Bus communication, Analog signal control are available for customization
* Permanently lubricated and maintenance free drive train
Specification:
| Type | Exm05 | Exm10 | Exm20 | ||||||
| Power supply | AC110/380 | AC110/380 | AC110/380 | ||||||
| Motor power | 25W | 70W | 140W | ||||||
| Rated current | 2.12/0.10A | 8.0/0.29A | 1.75/0.48A | ||||||
| Standard Torque | 50Nm 5r/min | 100Nm 5r/min | 200Nm 5.6r/min | ||||||
| Optional Torque | 80Nm 5r/min | -- | 100Nm 11.2r/min | ||||||
| Turns | 25 turns | 25 turns | 25 turns | ||||||
| Weight | 8KG | 13KG | 25KG | ||||||
| Hystersis | < 0.3% | ||||||||
| Dead band | 0.4%~1.5% adjustable | ||||||||
| Damping characteristics | 0 times | ||||||||
| Repeatability error | 0% | ||||||||
| Isolation resistance | 100MΩ/500VDC | ||||||||
| Anti-pressure level | 1500VAC 1min | ||||||||
| Protection level | IP68 | ||||||||
| Installation position | 360°adjustable | ||||||||
| Electrical connection | M20*1.5 explosion-proof cable connection, power wire, signal wire | ||||||||
| Ambient Temp. | -30ºC~+60ºC | ||||||||
| Optional accessories | Torque limiter / Remote control Dehumidifying heater / Passive contact switch |
||||||||

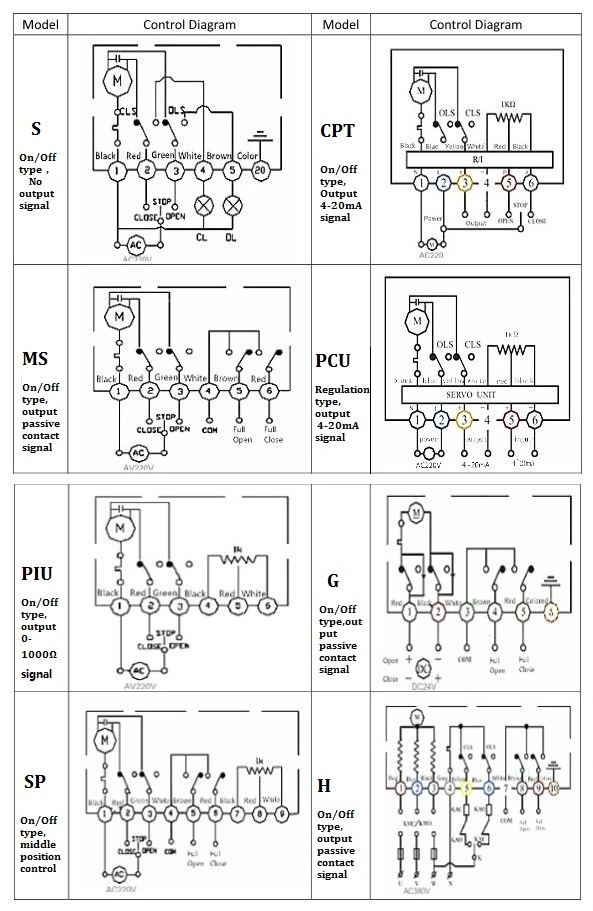

Wire Connnection diagram
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
