DN40 - DN1000 Explosion Proof Electric Actuator PTFE Flange Type For Butterfly Valve

Name: DN40 - DN1000 Explosion Proof Electric Actuator PTFE Flange Type For Butterfly Valve
Brand: Wuhan Grat Control Valve Co., Ltd.
SKU: EB-000038
Price: 50.00 USD
Availability: InStock

Basic Properties

Country Of Origin

Wuhan, Hubei, China

Brand Name

Grat

Certificate

IP67,CCC, ISO, CE,TUV

PRODUCT MODEL

EB-000038

Trading Properties

MOQ

1pc

Unit Price

USD $50.00/ Piece

Payment Method

L/C, T/T, D/P, PayPal, Western Union

Supply Capacity

1000PCS/Week

Product Summary

PTFE Flange Type Explosion-Proof Electric Butterfly Valve Product Description: PTFE Flange Type Explosion-Proof Electric Butterfly Valve/ IP67 / Centre Sealing Description: The soft-sealed electric butterfly valve is the most commonly used suitable medium in the electric butterfly valve product ...

Product Details

Highlight:

DN1000 Explosion Proof Electric Actuator

DN40 Explosion Proof Electric Actuator

DN40 Electric Butterfly Valve Actuator

Certifications: CCC, ISO, CE, IAF, Cans

Brand Name: GRAT

Minimum Order Quantity: 1 Pc

Delivery Time: 3 Working Days

Payment Terms: LC, T/T, D/P, PayPal, Western Union

Media: Water

Driving Mode:: Electric

Connection Form:: Wafer

Structure: Centre Sealing

Seal Form:: Auto Sealed

Valve Stem: Normal

Working Temperature: Normal Temperature (-40°C

Valve Body: Casting

Application: Industrial Usage, Water Industrial Usage

Valve Size: DN40-1000

Body Material: Wcb, Qt450-10, Ht200, Ht250

Applicable Medium: Vitriol, Hydrofluoric Acid, Phosphoric Acid, Chlor

Explosion-Proof Grade: Exd II Bt4

Work Pressure: Low Pressure (Pn<1.6mpa)

Material Of Seal Surface: Metal Hard Sealed

Standard: DIN

Connection: Wafer/Flang

Actuator Material: Casting Aluminum Alloy

Seal Ring: PTFE

Torque: 50n.M-200n.M

Warranty Period: One Year

Type: On/off, Regulating

Multi-Turns: 25 Turns

Suited Valve Type: Ball Valve, V Type, Butterfly, Ventilation Valve

Specification: <21KG

Packaging Details: Carton

Place Of Origin: Wuhan, Hubei, China

HS Code: 8481804090

Product Description

PTFE Flange Type Explosion-Proof Electric Butterfly Valve

Product Description:

PTFE Flange Type Explosion-Proof Electric Butterfly Valve/ IP67 / Centre Sealing

Description:
Flange Type Explosion-Proof Electric Butterfly Valve

The soft-sealed electric butterfly valve is the most commonly used suitable medium in the electric butterfly valve product category: water, oil and other liquid media.

The electric butterfly plate adopts a frame structure, which has the characteristics of high strength, large flow area, small flow resistance, etc.; the integral baking paint can effectively prevent rust and can be used in different media as long as the sealing valve seat sealing material is replaced.

Features:

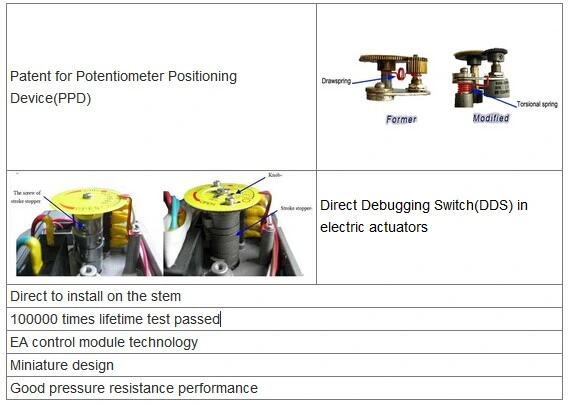

* GRAT new technology patent for Potentiometer Positioning Device(PPD).
* The new technology for Direct Debugging Switch(DDS) in electric actuators.
* Small opening torque, good seal performance, long service life.
* Beautiful appearance, simple and compact structure, high strength, zero leakage.
* Strong corrosion resistance, a broad scope of application.
* Diversified performance, suitable for large pressure drops services and large temperature drops services, convenient to install.
* The patent positioning technology.
* Simple structure, small flow resistance, easy operation, high cost-effective.

Specification:

Power supply	AC220V
Valve size	DN40-1000
Medium Temp	-50ºC~160ºC(no congelation)
Operating pressure	PN1.0~1.6(MPa)
Action mode	Switch to cut off, 0-90° gyration
Action time	4 ~ 30S
Body connections	Flange, wafer
Body material	WCB,QT450-10, HT200, HT250
Disc material	WCB,QT450-10, HT200, HT250
Seal ring	PTFE
Actuator material	Casting aluminum alloy
Design specification	GB/T 12238 / API 609 / MSS SP-67
Applicable medium	Vitriol, hydrofluoric acid, phosphoric acid, chlorine, alkali, aqua regia and other strong corrosive media

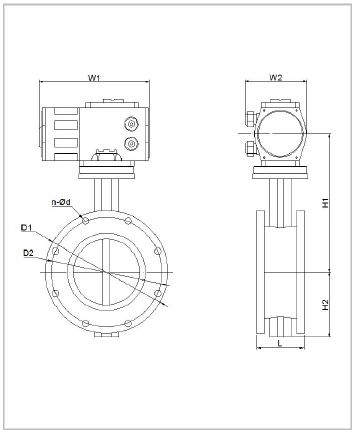

Flange Type Explosion-Proof Electric Butterfly Valve

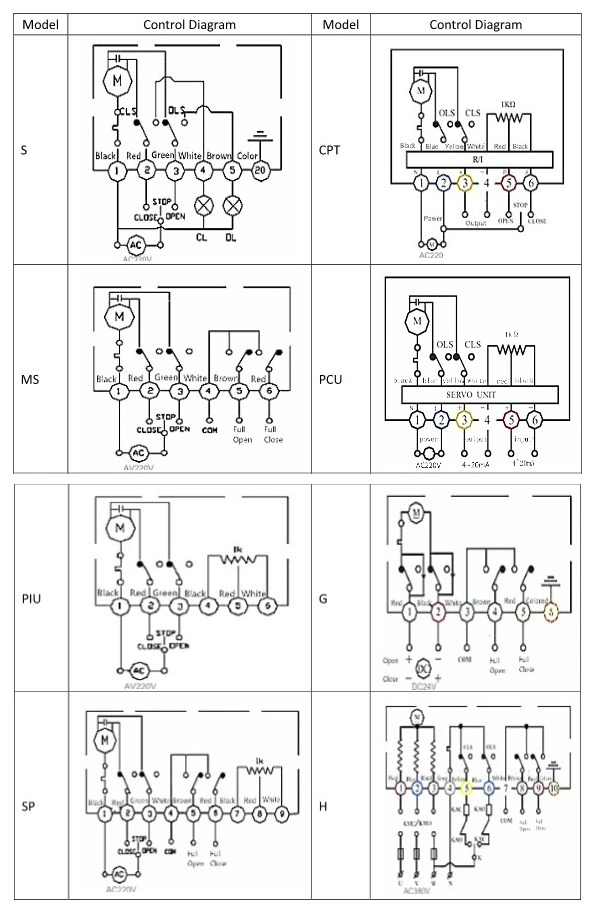

Wiring Diagram

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
