Dn700 Pn80 Wcb Metal Seat Butterfly Valve with Explosion-Proof Actuator for Gas Pipeline
Product Description:
Butterfly Valve with Explosion-Proof Actuator/ Gas Pipeline/ Metal Seat
Description:
As a gas modulation device & a two-way switch device, gas low-load electric butterfly valve is suitable to ventilation and dust removing pipeline in the industrial fields of metallurgy, mineral, cement, chemical-engineering, power generation, industrial furnace and so on.
Specification:
| Power supply | AC220V 50/60HZ |
| Operating temperature | 0-450 Celsius degree (Optional) |
| Imput signal | 4-20mA |
| Output signal | 4-20mA |
| Body connections | Wafer /Flange(Optional) |
| Flow characteristics | Approximate EQ% |
| Body material | A3 Steel, Heat-resistance steel |
| Disc material | A3, Heat-resistant steel, SUS304 Stainless steel, SUS316 Stainless steel |
| Seal type | Open type, back-seated type (ultra high temperature application), sealed oblique plate type (room temperature application). |
| Valve size | DN100~DN2000 |
| Body ratings | 0.1~0.6MPa |
| Test pressure | Sealed 0.15Mpa; Body 0.11Mpa |
| Applicable temperature | < 200 Celsius degree Special: < 450 Celsius degree |
| Applicable medium | Smoke, air, gas |
| Manufacturing standards | JB/T8692-1998 |

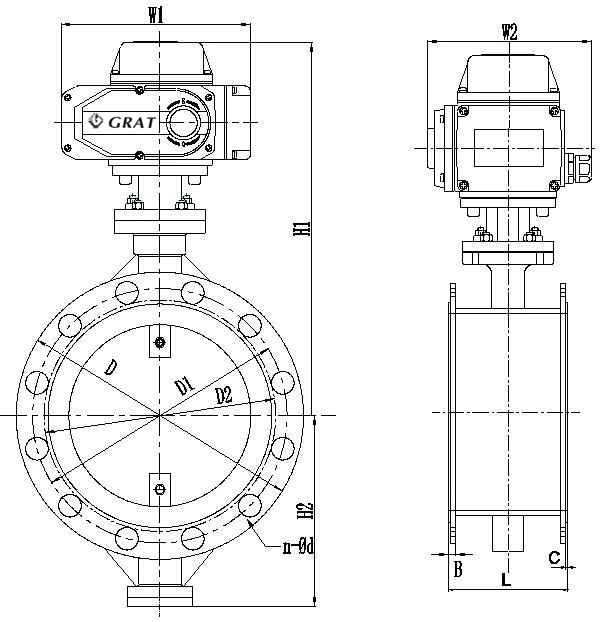

Installation Diagram
The material of main parts
Part name |
Body |
Disc |
Stuffing box |
Gland ring |
Seat |
Packing |
Stem |
Material trademark |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
WCB Stainless steel or lining |
WCB 40Cr ZG 1Cr18Ni9Ti |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
FEP |
FEP |
2Cr13 |
Applicable channelizing medium
Medium state |
Medium Temp. |
Medium pressure |
Medium characteristics |
Medium concentration |
Medium name |
Liquid |
-50ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
unlimited |
Acid, alkali, salt, chlorine gas, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reductant. |
Gas |
-50ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
unlimited |
|
Mixture of liquid and gas |
-50ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
<60% |

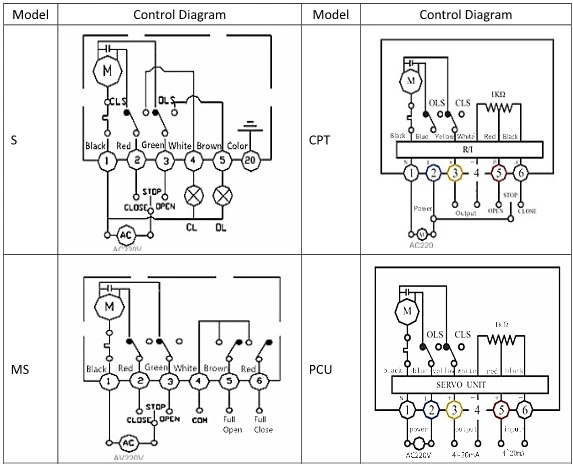

Control Diagram
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
