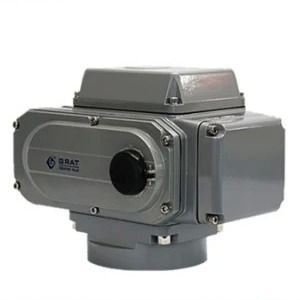

Thread Connection Electric Control Actuator Quick Switch Miniature Design
Thread Connection Electric Control Actuator Quick Switch Miniature Design
Basic Properties
Country Of Origin
Wuhan, Hubei, China
Brand Name
Grat
Certificate
IP67,CCC, ISO, CE, TUV,CNAS
PRODUCT MODEL
EA series
Trading Properties
MOQ
1pc
Unit Price
USD $100.00/ Piece
Payment Method
L/C, T/T, D/P, PayPal, Western Union
Supply Capacity
10000PCS/Month
Product Summary
Ordinary Temperature Thread Connection New Quick Switch Electric Control Actuator Product Description: New Quick Switch Electric Control Actuator/Ordinary Temperature/ Alloy Description: Specification: Type 20 50 100 200 400 600 1000 1500 2000 Characteristics Output torque 20NM 50NM 100NM 200NM ...
Product Details
Highlight:
Thread Connection Electric Control Actuator
,Miniature Electric Control Actuator
Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Delivery Time:
3 Working Days
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Power Supply:
AC220V
Power Source:
Electric Power
Temperature:
Ordinary Temperature
Connection:
Thread
Material:
Alloy
Torque:
20~2000nm
Type:
On/off, Regulating
Control Signal:
4~20mA
Place Of Origin:
Wuhan, Hubei, China
Packaging Details:
Carton/Wooden Box
HS Code:
8537109090
Product Description
Ordinary Temperature Thread Connection New Quick Switch Electric Control Actuator
Product Description:
New Quick Switch Electric Control Actuator/Ordinary Temperature/ Alloy
Description:
Specification:
| Type | 20 | 50 | 100 | 200 | 400 | 600 | 1000 | 1500 | 2000 | |
| Characteristics | ||||||||||
| Output torque | 20NM | 50NM | 100NM | 200NM | 400NM | 600NM | 1000NM | 1500NM | 2000NM | |
| Action time(S) | 10/20 | 4/10 20/60 |
4/7 15/30/60 |
6/15 30/60 |
6/15 30/60 |
45 | 15/30 | 48 | 60/75 | |
| Gyration angle | 0-90° 0-360° |
0-90° 0-360° |
0-90° 0-360° |
0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | |
| Motor power(W) | AC220V | 6 | 10 | 25 | 40 | 90 | 90 | 120 | 140 | 140 |
| AC380V | ------- | 6 | 15 | 30 | 40 | 40 | 90 | 100 | -------- | |
| DC24V | 8 | 13 | 25 | 35 | 70 | 70 | --------- | --------- | ---------- | |
| Rated current(A) | AC220V | 0.16 | 0.16 | 0.32 | 0.35 | 0.54 | 0.64 | 0.96 | 0.98 | 1.03 |
| AC380V | --------- | 0.07 | 0.1 | 0.15 | 0.29 | 0.29 | 0.45 | 0.46 | --------- | |
| DC24V | 0.7 | 1.28 | 2.03 | 3.57 | 5.13 | 3.04 | --------- | -------- | -------- | |
| Weight(Kg) | 1.2 | 2.5 | 3.5 | 8 | 8.5 | 9 | 17 | 18 | 20 | |
| Power | AC 220V±10% 50HZ/60HZ, AC 380V±10% 50HZ/60HZ, DC24V | |||||||||
| Insulation resistance | 100MΩ/500VDC | |||||||||
| Anti-pressure level | 1500VAC 1Min | |||||||||
| Protection level | IP67(It is no leakage in water about 20 meters deep) | |||||||||
| Limited component | Power-driven: Fully open and close, limit switch. Manual: Mechanical stopper. |
|||||||||
| Protector | Overheat protector(self-recovery) | |||||||||
| Installation position | Any direction from 0 to 360 degree | |||||||||
| Electrical connection | M20*1.5 Waterproof cable connection, power wire, signal wire | |||||||||
| Ambient Temp. | -30ºC--60ºC | |||||||||

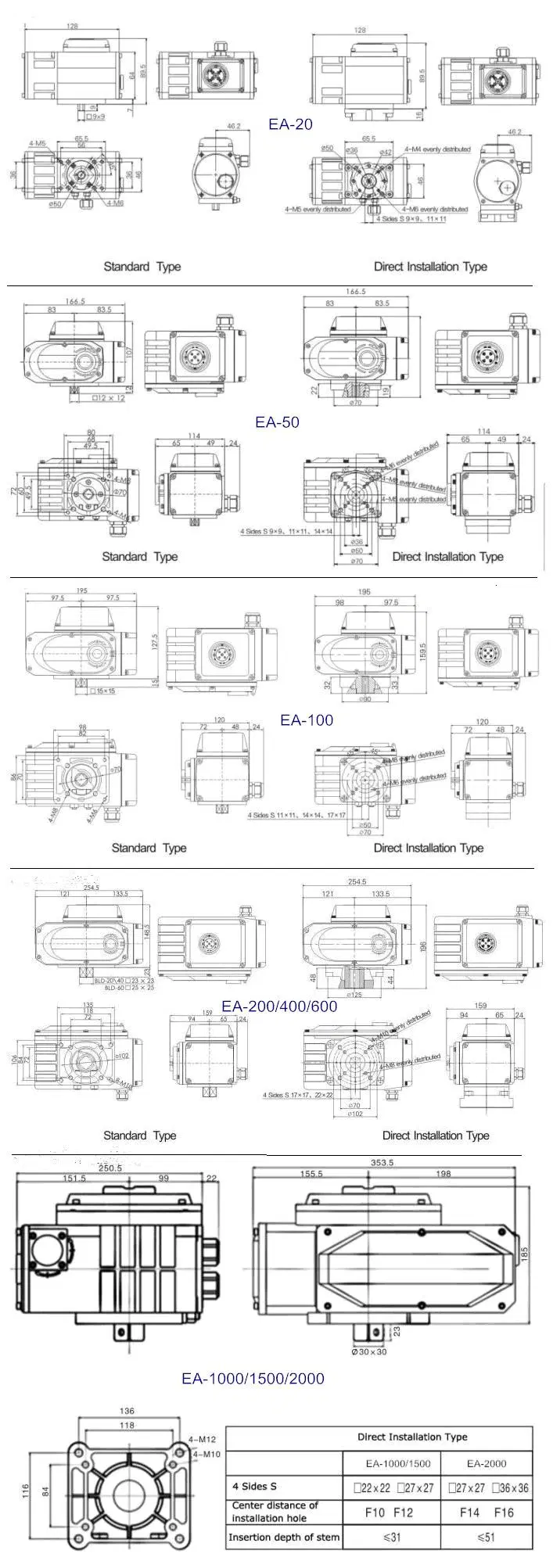

Installation Diagram:

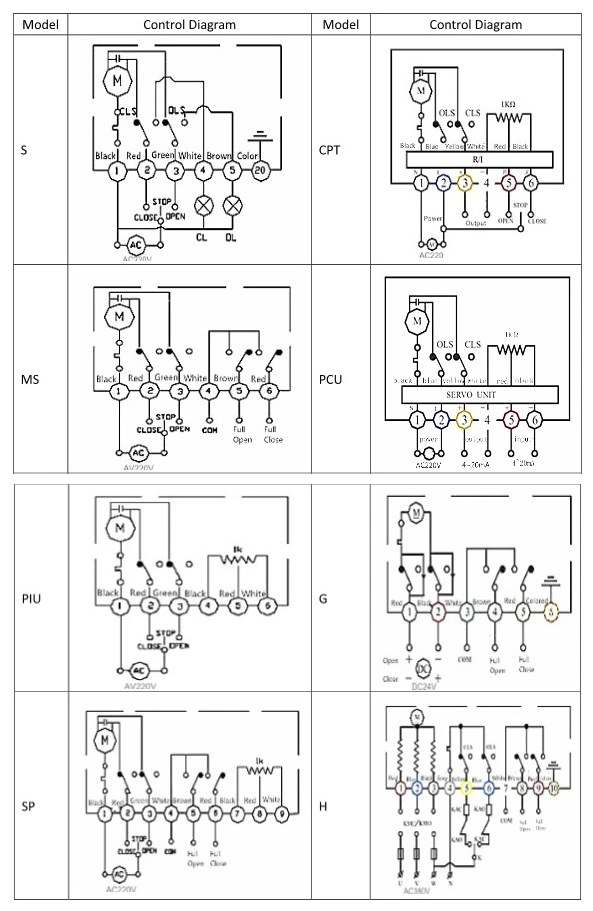

Control Diagram:
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
| PIU | ON/OFF,output 0~1000Ω signal | G | ON/OFF,output passive contact signal |
| SP | ON/OFF,middle position control | H | ON/OFF,output passive contact signal |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
