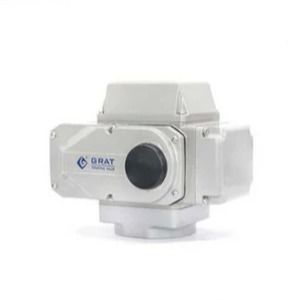

IP68 100nm On Off Electric Actuator For Ball Valve Butterfly Valve

Product Details

Place of Origin: Wuhan, Hubei, China

Brand Name: Grat

Certification: IP68,CCC, ISO, CE, TUV,CNAS

Model Number: EA-series

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: USD $159.00-899 .00/ Piece

Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case

Delivery Time: 3 working days

Payment Terms: L/C, T/T, D/P, PayPal, Western Union

Supply Ability: 10000PCS/Month

Get Best Price
Product Details
Highlight:

100nm On Off Electric Actuator

,

IP68 On Off Electric Actuator

Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Delivery Time:
3 Working Days
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Power Supply:
AC220V
Power Source:
Electric Power
Temperature:
Ordinary Temperature
Connection:
Standard/Stem Direct-Connected
Material:
Alloy
Control Signal:
Analog Signal
Torque:
20n.M-400n.M
Suited Valve Type:
Ball Valve, V Type, Butterfly, Ventilation Valve
Specification:
<20KG
Type:
Switch On/off
Warranty Period:
One Year
Place Of Origin:
Wuhan, Hubei, China
Packaging Details:
Carton/Wooden Box
HS Code:
8481804090
Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Delivery Time:
3 Working Days
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Power Supply:
AC220V
Power Source:
Electric Power
Temperature:
Ordinary Temperature
Connection:
Standard/Stem Direct-Connected
Material:
Alloy
Control Signal:
Analog Signal
Torque:
20n.M-400n.M
Suited Valve Type:
Ball Valve, V Type, Butterfly, Ventilation Valve
Specification:
<20KG
Type:
Switch On/off
Warranty Period:
One Year
Place Of Origin:
Wuhan, Hubei, China
Packaging Details:
Carton/Wooden Box
HS Code:
8481804090
Product Description

Ordinary Temperature 100nm Electric Actuator on-off in 4s for Ball Valve Butterfly Valve



Product Description:



EA Series Quick Switch Quarter Turn Electric Actuator/Ordinary Temperature/ Alloy



Description:
Quarter turn electrinic actuator -- suited valves: ball valve,V type valve, butterfly valve, ventilation valve, damper fan, dynamic balancing valve, plug valve, gyrating valve and mechanical positioning rotation system in other industrial area.


With the whole stroke 0-90° for fully open/close in 4S-6S seconds , this Quick Switch Quarter Turn Electric Actuator is suited to high pressure large pressure drops and the quick switch services that solenoid valve is not available.



Features:



* Output torque from 20N.M-400N.M
* Permanently lubricated and maintenance free drive train
* Dust-proof and Watertight to IP68(No leakage in 20m deep water
* Self-recovery overheat protector
* Capable of being mounted in any orientation
* Optional torque limiter/remote control/dehumidify heater

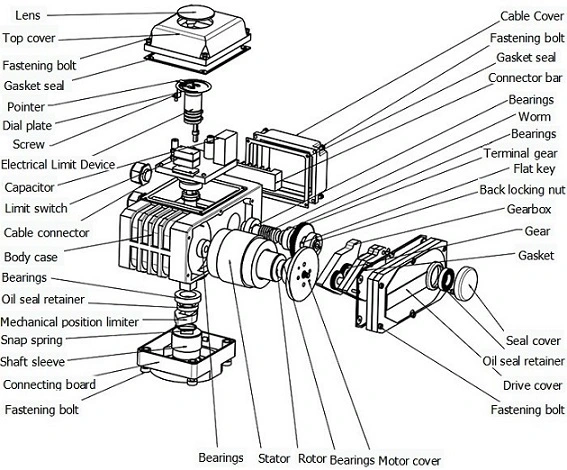

Specification:



Component Cover Worm Axle shaft Gear
Material Aluminium alloy Zinc-copper alloy Zinc-copper alloy
45#steel




100nm Electric Actuator on-off in 4s for Ball Valve Butterfly Valve


Type 20 50 100 200 400
Output torque 20NM 50NM 100NM 200NM 400NM
Action time 4S/7S 4S/7S 4S/6S 6S 6S
Gyration angle 0-90° 0-90° 0-90° 0-90° 0-90°
Motor power 6W 25W 40W 90W 90W
Rated current 0.16A 0.16A 0.32A 0.54A 0.54A
Weight 1.2Kg 2.5kg 8kg 8kg 8.5kg
Suited
valve
ball
valve
DN8-15 DN15-40 DN50-65 DN65-80 DN80-100
butterfly
valve
  DN32-50 DN50-125 DN150-200 DN200-250
Power supply AC220V AC380V DC24V AC110V DC220V
Accuracy Hysteresis≤0.5% Dead band≤0.5% Feedback error≤0.5%
Isolation
resistance
100MΩ/500VDC
Anti-pressure
level
1500VAC 1min
Protection
level
IP68(No leakage in 20M deep water)
Limited
component
Power-driven: Fully open and close limit switch.
Manual: Mechanical stopper
Protector Overheat protector(self-recovery)
Installation position Any direction from 0 to 360 degree
Electrical connection M20*1.5 Waterproof cable connection power wire signal wire
Ambient Temp. -30ºC--60ºC
Inspection standard JB/T8219-1999


Optional functions can be customized:

Optional function Code
Torque limiter ATS
Bracket and shaft sleeve ZT
Remote control C
Dehumidifying heater H

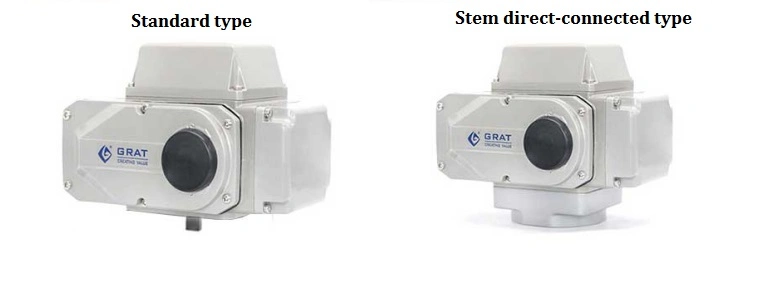

Valve connecting type:


Standard tpye: for bracket and shaft sleeve fixed valves
Stem direct-connected type: for high platform valves(refer to ISO5211)

100nm Electric Actuator on-off in 4s for Ball Valve Butterfly Valve
Packing & Shipping:

1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
