SS Quick Open Electric Actuator Flange Connection IP67 Electric Ball Valve Actuator
SS Quick Open Electric Actuator Flange Connection IP67 Electric Ball Valve Actuator
Basic Properties
Country Of Origin
Wuhan, Hubei, China
Brand Name
Grat
Certificate
IP67,CCC, ISO, CE
PRODUCT MODEL
EDN15-100
Trading Properties
MOQ
1pc
Unit Price
USD $170.00/ Piece
Payment Method
L/C, T/T, D/P, PayPal, Western Union
Supply Capacity
1000PCS/Month
Product Summary
Stainless Steel Flange Connection IP67 Quick Switch Electric Ball Valve Product Description: Quick Switch Electric Ball Valve/Normal Temperature/Stainless Steel Description: Specification: Valve size DN15~DN100 Power supply AC220V,AC380V, DC24V Temp. ≤220ºC Ambient temp. -30ºC-60ºC Body rating 0.1~4...
Product Details
Highlight:
SS Quick Open Electric Actuator
,Quick Open Electric Actuator Flange Connection
,IP67 Electric Ball Valve Actuator
Brand Name:
GRAT
Certifications:
CCC/ISO/CE/CNAS
Minimum Order Quantity:
1 Pc
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Water
Material:
Stainless Steel
Connection Form:
Flange
Driving Mode:
Electric
Nominal Pressure:
PN1.0-32.0MPa
Channel:
Straight Through Type
Type:
V Type Ball Valve
Temperature:
Normal Temperature
Application:
Industrial Usage, Water Industrial Usage
Body Ratings:
Dn15-100
Action Mode:
Switch To Cut Off
Body Material:
Stainless Steel SUS304\SUS316\Carbon Steel/ Castin
Seal Type:
Two-Sided Sphere Seal
Structure:
Flexible Ball Valve
Function:
Relief Valve
Standard:
DIN
Action Time:
4 Second
Power Supply:
AC220V 50/60Hz
Operating Pressure:
Pn16, Pn25, Pn40
Body Connections:
Flange Type, Connecting Thread
Leakage:
Compliance With The Standards Ansib16.104 5
Applicable Medium:
Water, Oil, Gas
Place Of Origin:
Wuhan, Hubei, China
Packaging Details:
Carton/Wooden Box
Delivery Time:
3 Working Days
HS Code:
8481804090
Product Description
Stainless Steel Flange Connection IP67 Quick Switch Electric Ball Valve
Product Description:
Quick Switch Electric Ball Valve/Normal Temperature/Stainless Steel
Description:
Specification:
| Valve size | DN15~DN100 | |
| Power supply | AC220V,AC380V, DC24V | |
| Temp. | ≤220ºC | |
| Ambient temp. | -30ºC-60ºC | |
| Body rating | 0.1~4.0MPa | |
| Purpose | Quick open and close | |
| Action time | 4S/7S(optional) | |
| Applicable medium | Water,Oil,Gas | |
| End connection | Flange, thread | |
| Seal type | two-sided sphere seal(zero leakage) | |
| Test pressure | Body test | 1.76MPa |
| Seal test | 2.4MPa | |
| Body material | WCB,SUS304,SUS316 | |
| Seal ring material | EPDM,PTFE,PPL,metal seat | |
| Protection level | IP67 | |
| Manufacturing standard | GB12237-89 AP16D | |
| Flange standard | JB79 GB9113 ANSI B16.5 JIS B2212 | |
| Structure and length standard | GB1221-89 | |
| Inspection standards | JB/T 9092 API598 | |

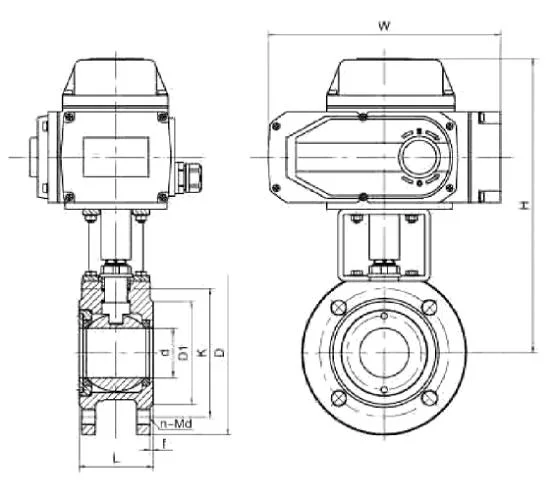

Installation Size
| DN | L | D | K | D1 | N-Md | B | I | H1 | H2 | W1 | W2 | Weight Kg |
|
| mm | inch | ||||||||||||
| 15 | 1/2″ | 35 | 95 | 65 | 46 | 4-φM12 | 9 | 2 | 234 | 196 | 145 | 196 | 5.6 |
| 20 | 3/4″ | 38 | 100 | 75 | 56 | 4-φM12 | 12 | 2 | 242 | 196 | 145 | 196 | 6 |
| 25 | 1″ | 42 | 110 | 85 | 66 | 4-φM12 | 12.7 | 2 | 218 | 196 | 145 | 196 | 5.8 |
| 32 | 11/4″ | 52 | 133 | 100 | 78 | 4-φM16 | 14 | 3 | 231 | 196 | 145 | 196 | 6.7 |
| 40 | 11/2 | 61 | 145 | 110 | 87 | 4-φM16 | 15 | 3 | 238 | 196 | 145 | 196 | 7.6 |
| 50 | 2 | 73 | 160 | 125 | 99 | 4-φM16 | 16.7 | 3 | 251 | 196 | 145 | 196 | 8.7 |
| 65 | 21/2″ | 92 | 180 | 145 | 118 | 4-φM16 | 17.2 | 3 | 265 | 196 | 145 | 196 | 16.8 |
| 80 | 3″ | 109 | 195 | 160 | 136 | 8-φM16 | 19 | 3 | 298 | 255 | 184 | 255 | 18.6 |
| 100 | 4″ | 140 | 215 | 180 | 156 | 8-φM16 | 18.5 | 3 | 310 | 255 | 184 | 255 | 21.2 |

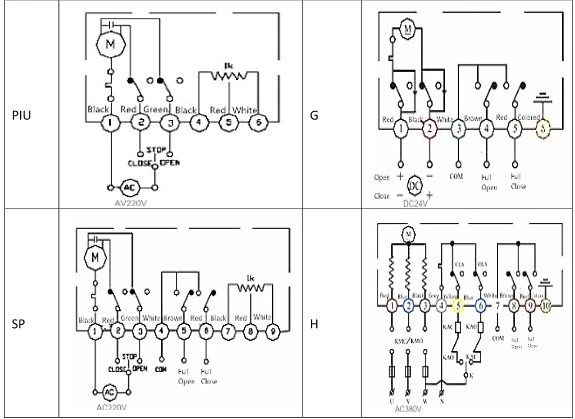

Connection diagram
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
