Wafer Type Electric Motor Operated Butterfly Valve Low Pressure Soft Sealed Butterfly Valve
Wafer Type Electric Motor Operated Butterfly Valve Low Pressure Soft Sealed Butterfly Valve
Basic Properties
Country Of Origin
Wuhan, Hubei, China
Brand Name
Grat
Certificate
CCC, ISO, CE
PRODUCT MODEL
EB-000021
Trading Properties
MOQ
1pc
Unit Price
USD $100.00/ Piece
Payment Method
L/C, T/T, D/P, PayPal, Western Union
Supply Capacity
1000PCS/Month
Product Summary
Soft Sealed Low Pressure Wafer Type Electric Motor Operated Butterfly Valve Product Description: Wafer Type Electric Motor Operated Butterfl/Low Pressure/Soft Sealed Description: Wafer stainless steel electric control butterfly valve supports non-pin structure to effectively avoid the pin break off ...
Product Details
Highlight:
Wafer Motor Operated Butterfly Valve
,Electric Motor Operated Butterfly Valve
,Low Pressure Soft Sealed Butterfly Valve
Brand Name:
GRAT
Certifications:
CCC/ISO/CE/CNAS
Minimum Order Quantity:
1 Pc
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Oil
Driving Mode:
Electric
Connection Form:
Wafer
Structure:
Centre Sealing
Seal Form:
Auto Sealed
Valve Stem:
Normal
Working Temperature:
Normal Temperature (-40°C
Valve Body:
Forge Welding
Application:
Industrial Usage, Water Industrial Usage
Size:
Dn32-Dn600
Work Pressure:
Low Pressure (Pn<1.6mpa)
Material Of Seal Surface:
Soft Sealed
Standard:
ISO
Input Signal:
Switch Signal
Function:
Relief Valve
Place Of Origin:
Wuhan, Hubei, China
Packaging Details:
Carton/Wooden Box
Delivery Time:
3 Working Days
HS Code:
8481804090
Product Description
Soft Sealed Low Pressure Wafer Type Electric Motor Operated Butterfly Valve
Product Description:
Wafer Type Electric Motor Operated Butterfl/Low Pressure/Soft Sealed
Description:
Wafer stainless steel electric control butterfly valve supports non-pin structure to effectively avoid the pin break
off in a long- term operation, as a modulation device to control and cut off the various industrial medium of
water and oil to realize temperature, pressure and flow control, This valve is suited to the pipeline and
container of non corrosive gas, liquid, semi-liquid and solid powder, and applied in the industrial fields of
petroleum, chemical, food, medicine, textile, papermaking, power, ship, city feed water and drainage,
smelting energy and so on.
Features:
* Small volume and light weight, easy to disassemble and maintain, and can be installed in any position.
* Small pressure drops, Large flow capability.

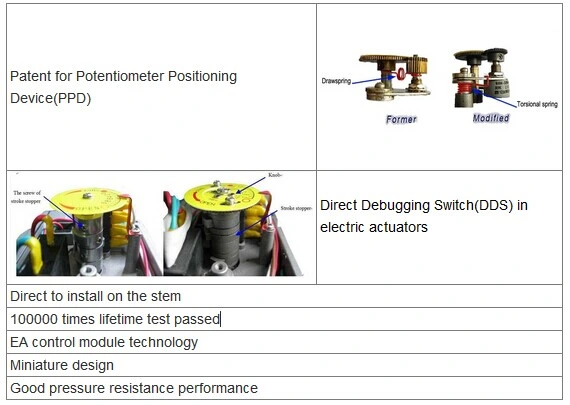

* The patent positioning technology.
* Small operating torque, energy saving.
* Linearity flow characteristics, the best control performance.
* Simple and compact structure, 90° gyration to open quickly.
* Long service life, good seal performance.
* Small pressure drops, Large flow capability.
* The patent positioning technology.
* Small operating torque, energy saving.
* Linearity flow characteristics, the best control performance.
* Simple and compact structure, 90° gyration to open quickly.
* Long service life, good seal performance.
Specification:
| Body ratings | N1.0/PN1.6Mpa |
| Valve size | DN40-DN600 |
| Seal materia | Nitrile rubber/EPDM PTFE |
| Stem seal | NBR,HNBR,PTFE |
| Body material | SUS304/SUS316L/CF8/CF8L ;Stainless steel |
| Disc material | SUS304/SUS316L/CF8/CF8L ;Stainless steel |
| Body connections | Wafer |
| Power supply | AC220V |
| Control signal | 4~20mA 0~5V |
| Output signal | 4~20mA 0~5V |
| Operating pressure | PN1.6Mpa PN2.5Mpa |
| Medium Temp | ≤120ºC( The higher level of temperature resistance is prepared) |
| Ambient Temp. | ≤50ºC |
| Flow coefficient | Please download the data on our website for reference Custom flow coefficient depends on the customer's requirement. |
| Applicable medium | Water, oil, gas, corrosive medium. |

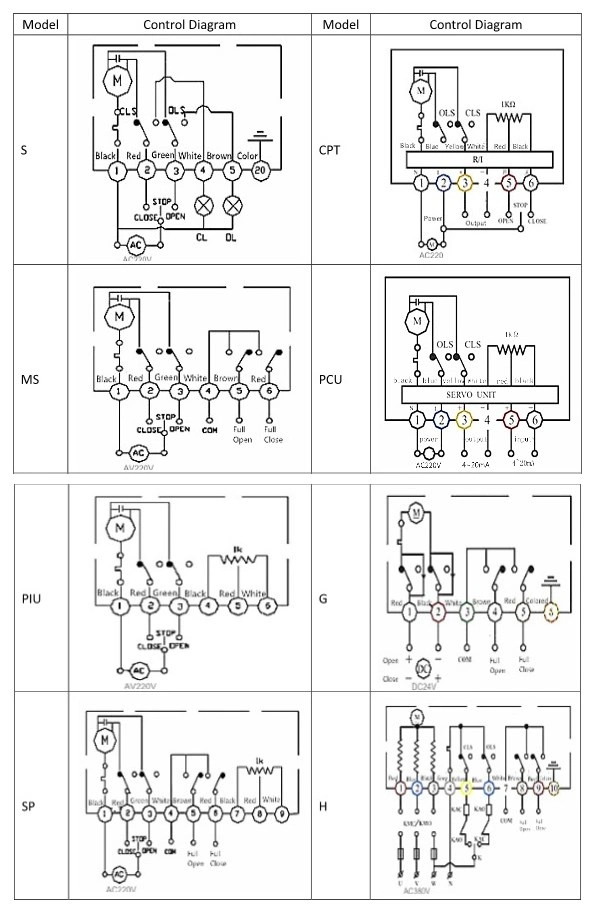

Connection diagram
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
