Product Details
Place of Origin: Wuhan, Hubei, China
Brand Name: Grat
Certification: IP67.CCC, ISO, CE,TUV
Model Number: EA-000013
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD $100.00-200.00/ Piece
Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case
Delivery Time: 3 working days
Payment Terms: L/C, T/T, D/P, PayPal, Western Union
Supply Ability: 1000PCS/Month
Brand Name: |
GRAT |
Place Of Origin: |
Wuhan, Hubei, China |
Minimum Order Quantity: |
1 Pc |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Power Supply:: |
AC220V |
Power Source: |
Electric Power |
Temperature: |
Low Temperature |
Connection: |
Flange |
Material: |
Stainless Steel |
Specification: |
50Nm~2000Nm |
Transport Package: |
Carton/Wooden Box |
HS Code: |
8537109090 |
Brand Name: |
GRAT |
Place Of Origin: |
Wuhan, Hubei, China |
Minimum Order Quantity: |
1 Pc |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Power Supply:: |
AC220V |
Power Source: |
Electric Power |
Temperature: |
Low Temperature |
Connection: |
Flange |
Material: |
Stainless Steel |
Specification: |
50Nm~2000Nm |
Transport Package: |
Carton/Wooden Box |
HS Code: |
8537109090 |

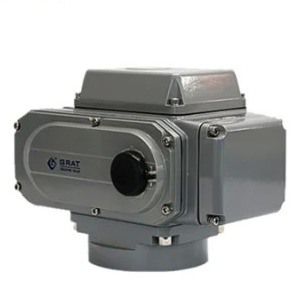

IP67 EA series stem direct-connected Compact Quarter-Turn Electric Actuator
Product Description:
Compact Quarter-Turn Electric Actuator/ IP67/
Description:
EA series stem direct -connected electric actuator is equipped with various segmental valve
(ball valve, butterfly valve, plug valve.) to form industrial automatic control electric valve such as
electric control valve, electric ball valve, electric butterfly valve and so on.
Without servo amplifier, EA series stem direct-connected electric actuators adopts advanced technology of
a built-in intelligent control module to realize conveniently control and operation via 4~20mA control
signal of PPD positioning technology.
Features:
* Direct to install on the stem
* 100000 times life
* The patent positioning technology
* EA control module technology
* Miniature design
* Good seal performance
* Good reliability
* Good pressure resistance performance
* High modulation precision
Specification:
| Torque | 20~2000NM |
| Power supply | AC220V(Custom powers are available) |
| Control signal | 4~20mA/Switch energy |
| Action angle | 0~90°(180°is the maximum gyration angle) |
| Modulation accuracy | ≤0.3% |
| Dead zone | ≤0.2% |
| Connection | Bracket and shaft sleeve fix actuator |
| Protection level | IP67 |
| Ambient Temp | ≤60ºC |
| Implementation standards | JB/T-8219-1999 |
Product information
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
