200Nm - 600Nm Intelligent Electric Actuator Thread Connection Ball Valve Electric Actuator

Product Details

Place of Origin: Wuhan, Hubei, China

Brand Name: Grat

Certification: IP67,CCC, ISO, CE

Model Number: EA Series

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: USD $100.00/ Piece

Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case

Delivery Time: 3 working days

Payment Terms: L/C, T/T, D/P, PayPal, Western Union

Supply Ability: 1000PCS/Month

Get Best Price
Product Details
Highlight:

200Nm Intelligent Electric Actuator

,

600Nm Intelligent Electric Actuator

,

Intelligent Ball Valve Electric Actuator

Brand Name:
GRAT
Certifications:
IP68/CCC/ISO/CE
Minimum Order Quantity:
1 Pc
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Power Supply:
AC220V
Power Source:
Electric Power
Temperature:
Ordinary Temperature
Connection:
Thread
Material:
Alloy
Torque:
200~600nm
Type:
On/off, Regulating
Place Of Origin:
Wuhan, Hubei, China
Packaging Details:
Carton/Wooden Box
Delivery Time:
3 Working Days
Brand Name:
GRAT
Certifications:
IP68/CCC/ISO/CE
Minimum Order Quantity:
1 Pc
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Power Supply:
AC220V
Power Source:
Electric Power
Temperature:
Ordinary Temperature
Connection:
Thread
Material:
Alloy
Torque:
200~600nm
Type:
On/off, Regulating
Place Of Origin:
Wuhan, Hubei, China
Packaging Details:
Carton/Wooden Box
Delivery Time:
3 Working Days
Product Description

EA Series Thread Connection 200Nm~600Nm Intelligent Electric Actuator For Ball Valve



Product Description:



200Nm~600Nm Intelligent Electric Actuator For Ball Valve / IP67/Ordinary Temperature



Description:

Grat Brand Series Compact Electric Actuator



Specification:



Type Torque Action Time(S) Gyration Angle Motor Power(W) Rated Current(A) Weight(Kg)
200 200NM 6/15
30/60
0-90° AC220V DC24V AC380V AC220V DC24V AC380V 8.0
40 35 30 0.35 3.57 0.15
400 400NM 6/15
30/60
0-90° 90 70 40 0.54 5.13 0.29 8.5
600 600NM 45 0-90° 90 70 40 0.64 3.04 0.29 9.0
Power AC 220V±10% 50HZ/60HZ, AC 380V±10% 50HZ/60HZ, DC24V
Insulation resistance 100MΩ/500VDC
Anti-pressure level 1500VAC 1Min
Protection level IP67(It is no leakage in water about 20 meters deep)
Limited component Power-driven: Fully open and close, limit switch.
Manual: Mechanical stopper
Protector Overheat protector(self-recovery)
Installation position Any direction from 0 to 360 degree
Electrical connection M20*1.5 Waterproof cable connection, power wire, signal wire
Ambient Temp -30ºC--60ºC

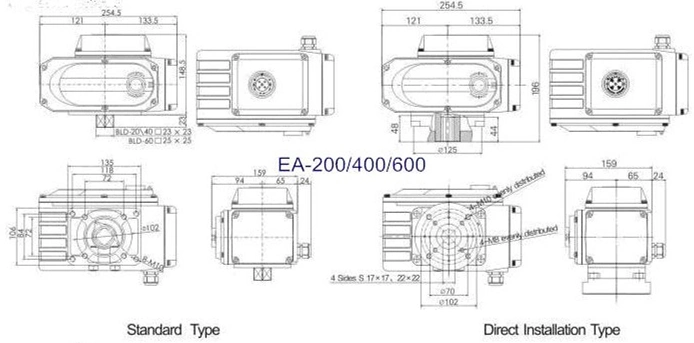

Installation Diagram


200nm~600nm Intelligent Electric Actuator for Ball Valve

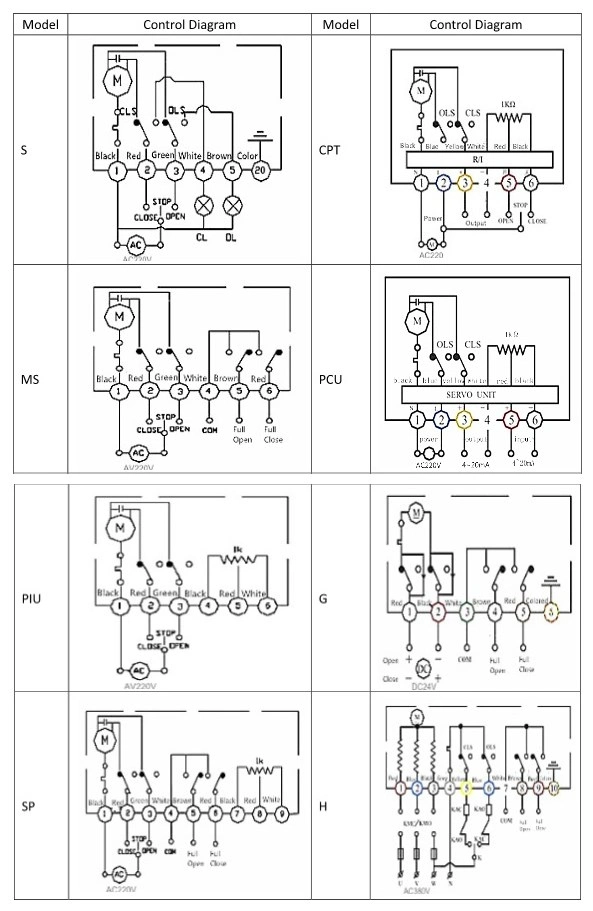

Control Diagram
Ea Series Electronic Actuator

Model Circuit Model Circuit
S ON/OFF,no output signal CPT ON/OFF,output 4~20mA signal
MS ON/OFF,output passive contact signal PCU Regulation,output 4~20mA signal
PIU ON/OFF,output 0~1000Ω signal G ON/OFF,output passive contact signal
SP ON/OFF,middle position control H ON/OFF,output passive contact signal



Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
