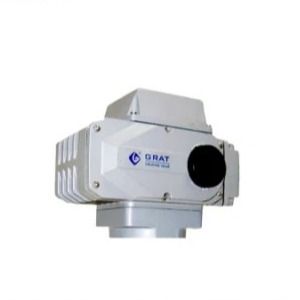

AC380V 2000nm Electric Valve Actuator Flange Connection For Water Industry
AC380V 2000nm Electric Valve Actuator Flange Connection For Water Industry
Basic Properties
Country Of Origin
Wuhan, Hubei, China
Brand Name
Grat
Certificate
IP67,CCC, ISO, CE, RoHS
PRODUCT MODEL
EA-2000
Trading Properties
MOQ
1pc
Unit Price
USD $50.00-150.00/ Piece
Payment Method
L/C, T/T, D/P, PayPal, Western Union
Supply Capacity
1000PCS/Month
Product Summary
Low Temperature IP67 AC380V 2000nm Flange Connection Electric Valve Actuator for Water Industry Product Description: AC380V 2000nm Electric Valve Actuator for Water Industry/ IP67 /Low Temperature Description: Specification: Type 20 50 100 200 400 600 1000 1500 2000 Characteristics Output torque ...
Product Details
Highlight:
2000nm Electric Valve Actuator
,AC380V Electric Valve Actuator
Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Power Supply:
AC380V
Power Source:
Electric Power
Temperature:
Low Temperature
Connection:
Flange
Material:
Stainless Steel
Action Angle:
180 Is The Maximum Gyration Angle
Control Signal:
4-20mA
Modulation Accuracy:
0.3%
Connections:
Bracket And Shaft Sleeve Fix Actuator
Specification:
20-2000NM
Place Of Origin:
Wuhan, Hubei, China
Packaging Details:
Carton/Wooden Box
Delivery Time:
3 Working Days
HS Code:
8481804090
Product Description
Low Temperature IP67 AC380V 2000nm Flange Connection Electric Valve Actuator for Water Industry
Product Description:
AC380V 2000nm Electric Valve Actuator for Water Industry/ IP67 /Low Temperature
Description:
Specification:
| Type | 20 | 50 | 100 | 200 | 400 | 600 | 1000 | 1500 | 2000 | |
| Characteristics | ||||||||||
| Output torque | 20NM | 50NM | 100NM | 200NM | 400NM | 600NM | 1000NM | 1500NM | 2000NM | |
| Action time(S) | 10/20 | 4/10 20/60 |
4/7 15/30/60 |
6/15 30/60 |
6/15 30/60 |
45 | 15/30 | 48 | 60/75 | |
| Gyration angle | 0-90° 0-360° |
0-90° 0-360° |
0-90° 0-360° |
0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | |
| Motor power(W) | AC220V | 6 | 10 | 25 | 40 | 90 | 90 | 120 | 140 | 140 |
| AC380V | ------- | 6 | 15 | 30 | 40 | 40 | 90 | 100 | -------- | |
| DC24V | 8 | 13 | 25 | 35 | 70 | 70 | --------- | --------- | ---------- | |
| Rated current(A) | AC220V | 0.16 | 0.16 | 0.32 | 0.35 | 0.54 | 0.64 | 0.96 | 0.98 | 1.03 |
| AC380V | --------- | 0.07 | 0.1 | 0.15 | 0.29 | 0.29 | 0.45 | 0.46 | --------- | |
| DC24V | 0.7 | 1.28 | 2.03 | 3.57 | 5.13 | 3.04 | --------- | -------- | -------- | |
| Weight(Kg) | 1.2 | 2.5 | 3.5 | 8 | 8.5 | 9 | 17 | 18 | 20 | |
| Power | AC 220V±10% 50HZ/60HZ, AC 380V±10% 50HZ/60HZ, DC24V | |||||||||
| Insulation resistance | 100MΩ/500VDC | |||||||||
| Anti-pressure level | 1500VAC 1Min | |||||||||
| Protection level | IP67(It is no leakage in water about 20 meters deep) | |||||||||
| Limited component | Power-driven: Fully open and close, limit switch. Manual: Mechanical stopper. |
|||||||||
| Protector | Overheat protector(self-recovery) | |||||||||
| Installation position | Any direction from 0 to 360 degree | |||||||||
| Electrical connection | M20*1.5 Waterproof cable connection, power wire, signal wire | |||||||||
| Ambient Temp. | -30ºC--60ºC | |||||||||
Installation Diagram:
Control Diagram:
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
| PIU | ON/OFF,output 0~1000Ω signal | G | ON/OFF,output passive contact signal |
| SP | ON/OFF,middle position control | H | ON/OFF,output passive contact signa |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
