Wuhan Grat Control Valve Co., Ltd. nukiz@grat.com.cn 86-027-6070-6977
Product Details
Place of Origin: Wuhan, Hubei, China
Brand Name: Grat
Certification: IP68,CCC, ISO, CE, RoHS
Model Number: EAF-Actuator
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD $100.00-150.00/ Piece
Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case
Delivery Time: 3 working days
Payment Terms: L/C, T/T, D/P, PayPal, Western Union
Supply Ability: 1000PCS/Month
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Power: |
Electric |
Adjusted Form: |
Switch Type/Regulating Type |
Working Type:: |
4-20mA Switch Energy |
Work Temperature: |
Low Temperature |
Material: |
Stainless Steel |
Place Of Origin: |
Wuhan, Hubei, China |
Packaging Details: |
Carton/Wooden Box |
Delivery Time: |
3 Working Days |
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Power: |
Electric |
Adjusted Form: |
Switch Type/Regulating Type |
Working Type:: |
4-20mA Switch Energy |
Work Temperature: |
Low Temperature |
Material: |
Stainless Steel |
Place Of Origin: |
Wuhan, Hubei, China |
Packaging Details: |
Carton/Wooden Box |
Delivery Time: |
3 Working Days |
IP67 Low Temperature Stainless Steel EAF Series Electric Actuator for Boats
Product Description:
EAF Series Electric Actuator for Boats/ IP68 /Low Temperature
Description:
EAF series electric actuator with crankshaft and base realizes the gyration action of rotary stem motion when equipped with various damper stopper, the high-temperature butterfly valve, hydraulic coupler.
EAF series electric actuator with the advanced technology of a built-in intelligent control module, does not need to be matched with servo amplifier, and which realizes conveniently the control and operation via control signal 4~20mA input by PPD localization technology.
Features:
* The output device of the rocker and bracket for the actuator.
EAF series electric actuator with crankshaft and base realizes the gyration action of rotary stem motion when equipped with various damper stopper, the high-temperature butterfly valve, hydraulic coupler.
* Long service life
More than 50000 operation life without fault, keep your system operating safely and reliably

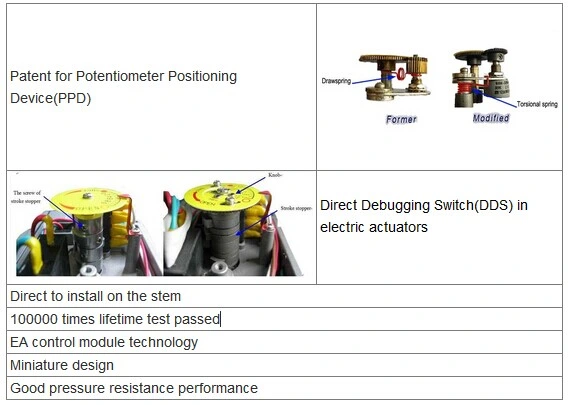

* The patent localization technology
The actuator with the unique PPD localization technology patent is equipped with the EA control module, which supports the various signals such as 4-20mA ,0-10V etc., and which can communicate directly with PLC control device.This actuator is convenient to precisely regulate the valve opening without manual operation.
* EA control module
EA control module technology is called electronic braking circuit with high precision and high reliable performance, which can be shut off instantaneously.
* Good sealing performance.
This actuator with high sealing standard immerses wholly in water with no air leakage .Especially suitable for outdoor conditions
* Good reliability
The electrical components and precision parts are made of imported material to effectively ensure high quality and reliability of the product..
* Good pressure resistance performance
EA series actuator is tested by the high pressure resistance 1500V without electric leakage to ensure your system operating safely.
* High adjustment precision
High adjustment precision, big adjustable ratio(the maximum 300:1), excellent adjustment performance, make this product is widely applied in various industrial fields for high precision adjustment .
PLC control device.This actuator is convenient to precisely regulate the valve opening without manual operation.
* EA control module
EA control module technology is called electronic braking circuit with high precision and high reliable performance, which can be shut off instantaneously.
* Good sealing performance.
This actuator with high sealing standard immerses wholly in water with no air leakage .Especially suitable for outdoor conditions
* Good reliability
The electrical components and precision parts are made of imported material to effectively ensure high quality and reliability of the product..
* Good pressure resistance performance
EA series actuator is tested by the high pressure resistance 1500V without electric leakage to ensure your system operating safely.
* High adjustment precision
High adjustment precision, big adjustable ratio(the maximum 300:1, excellent adjustment performance, make this product is widely applied in various industrial fields for high precision adjustment .
Specification:
| Torque | 20~2000NM |
| Power supply | AC220V |
| Control signal | 4~20mA |
| Action angle | 0~90° |
| Modulation accuracy | ≤0.3% |
| Dead zone | ≤0.2% |
| Connections | Bracket and shaft guard fix actuator |
| Ambient Temp | ≤60ºC |
| Protection level | IP67 |
| Implementation standards | JB/T-8219-1999 |
Product information:
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
