DN50 High Temperature Double Union Ball Valve PVC Corrosion Resistant

Product Details

Place of Origin: Wuhan, Hubei, China

Brand Name: Grat

Certification: IP67,CCC, ISO, CE, TUV

Model Number: EK-000048

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: USD $100.00 / Piece

Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case

Delivery Time: 3 working days

Payment Terms: L/C, T/T, D/P, PayPal, Western Union

Supply Ability: 1000PCS/Week

Get Best Price
Product Details
Highlight:

DN50 Double Union Ball Valve PVC

,

High Temperature Double Union Ball Valve PVC

,

DN50 Ball Valve Corrosion Resistant

Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Place Of Origin:
Wuhan, Hubei, China
Delivery Time:
3 Working Days
Packaging Details:
Wooden Carton
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Acid
Material:
UPVC
Connection Form:
Welding
Driving Mode::
Electric
Nominal Pressure:
PN1.0-32.0MPa
Channel:
Straight Through Type
Type:
Fixed Ball Valve
Temperature:
Normal Temperature
Application:
Industrial Usage, Water Industrial Usage
Medium:
Water, Air, Oil, And Corrosive Chemical Liquid
Structure:
Fixed Ball Valve
Function:
Bypass-Valve
Standard:
ISO
Size:
DN10~100
HS Code:
8481804090
Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Place Of Origin:
Wuhan, Hubei, China
Delivery Time:
3 Working Days
Packaging Details:
Wooden Carton
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Acid
Material:
UPVC
Connection Form:
Welding
Driving Mode::
Electric
Nominal Pressure:
PN1.0-32.0MPa
Channel:
Straight Through Type
Type:
Fixed Ball Valve
Temperature:
Normal Temperature
Application:
Industrial Usage, Water Industrial Usage
Medium:
Water, Air, Oil, And Corrosive Chemical Liquid
Structure:
Fixed Ball Valve
Function:
Bypass-Valve
Standard:
ISO
Size:
DN10~100
HS Code:
8481804090
Product Description

DN50 High Temperature Corrosion Resistant PVC Double Union Ball Valve with Electric Actuator​


Product Description:



DN50 High Temperature Corrosion Resistant PVC Double Union Ball Valve with Electric Actuator/ IP67 /Fixed Ball Valve



Description:
UPVC Chemical Resistant Electric Ball Valve



UPVC Electric Ball Valve is widely applied in the industrial fields of acid, alkali and chemical solution.


The body with light weight and strong corrosion resistance is widely used in the piping system of pure water and raw drinking water, drainage and sewage, salt water and sea water.


Specification:





Power supply AC220V ,AC24V
Valve size DN10-100
Medium Temp -15°C~ 60°C(no congelation)
Ambient Temp -25°C~ 55°C
Operating pressure PN16
Action mode Switch to cut off,0 ~ 90°gyration
Action time 4 ~ 30S
Protector Overheat protection
Power consumption 8VA ~ 30VA
Body connections Flange, inside thread
Body material UPVC
Seal material PTFE,EPDM
Actuator material Casting aluminum alloy, plastic shell
Applicable medium Water, air, oil, and corrosive chemical liquid
Protection level IP67
Installation mode Install it in any angle. (Prefer to horizontal or inclined installation to extend the service life

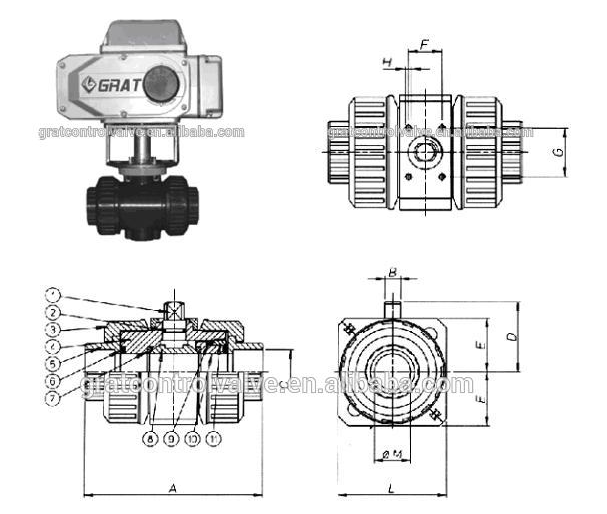

Figure and connection size

DN50 High Temperature Corrosion Resistant PVC Double Union Ball Valve with Electric Actuator



Size

Thread

(G)

A

A

Adhesive

interface

B

C

Thread

connection



C

Adhesive

interface



D

E F G H L φM
3/8″ 103 103 8.3 3/8″ 16 36 31.5 24 24 M4 63 10
1/2″ 110 103 8.3 1/2″ 20 36 31.5 24 24 M4 63 15
3/4″ 116 115 11 3/4″ 25 43.5 36.5 25 31 M4 73 20
1″ 133 128 12.1 1″ 32 51 45 27 40 M5 90 25
1″1/4 145 146 14.5 1″1/4 40 59 52 32 41 M5 104 32
1″1/2 165 164 15.5 1″1/2 50 68 56 28 53 M6 112 40
2″ 199 199 19 2″ 63 82 67.5 34 58 M6 135 50
2″1/2 236 235 23.2 2″1/2 75 115 79 45 84 M6 105 65
3″ 270 270 28.3 3″ 90 138.5 100 55 102 M8 126 80
4″ 309 308 28.6 4″ 110 162.5 115 50 122 M8 147


The material for main parts





Material
1. Shaft PVC 7. Ball seal ring PTFE
2. O-Ring EPDM 8. Ball core PVC
3. Ring nut PVC 9. O-Ring EPDM
4. Body PVC 10. Plug seal bracket PVC
5. The end PVC 11. Ring PVC
6. O-Ring EPDM

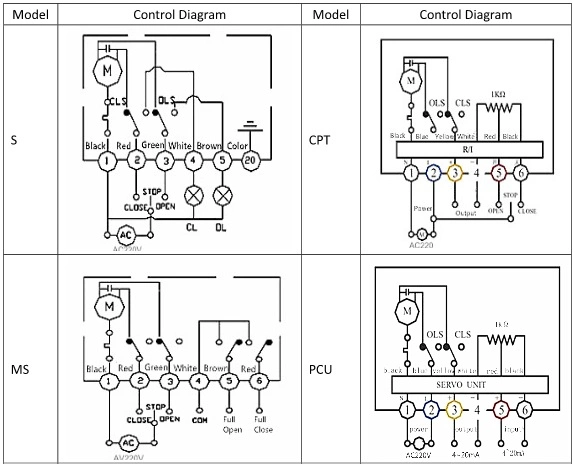

Control Diagram


DN50 High Temperature Corrosion Resistant PVC Double Union Ball Valve with Electric Actuator



Model Circuit Model Circuit
S ON/OFF,no output signal CPT ON/OFF,output 4~20mA signal
MS ON/OFF,output passive contact signal PCU Regulation,output 4~20mA signal



Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
