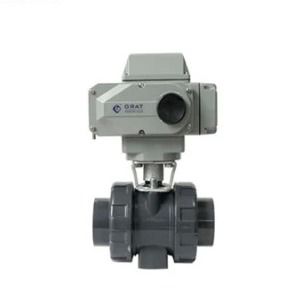

DC24V DN100 Pn10 PVC Ball Valve with Power off Automatic Close Electric Actuator for Rain System
Product Description:
DC24V DN100 Pn10 PVC Ball Valve with Power off Automatic Close Electric Actuator for Rain System/ IP67 /Floating Ball Valve
Specification:
Valve size | DN15~DN100 |
Power supply | DC24V,AC220V,AC380V |
Temp. | -15ºC-60ºC(no congealment) |
Ambient temp. | -30ºC-60ºC |
Body rating | 0.1~1.6MPa |
Purpose | On-off |
Action time | 4-30S |
Applicable medium | Water, air, oil, corrosive chemical liquid |
End connection | Flange, double union |
Seal type | Soft seat |
Shaft material | PVC |
O-RING material | EPDM |
Ring nut material | PVC |
Body material | PVC |
End material | PVC |
O-RING material | EPDM |
Sphere seal ring material | PTFE |
Ball material | PVC |
O-ring material | EPDM |
Core seal bracket material | PVC |
Ring material | PVC |
Protection level | IP67 |
Installation angle | Install it in any angle. (Prefer to horizontal or inclined installation to extend the service life.) |
Design and manufacturing standard | GB12237-89 AP16D |
Flange standard | JB79 GB9113 ANSI B16.5 JIS B2212 |
Structure length standard | GB12221-89 |
Inspection standard | JB/T 9092 API598 |
Figure and connection size
Valve size | L | L1 | L2 | D1 | D2 | D3 | D4 | D5 | H1 | H2 | W1 | W2 | Weight kg |
|
mm | inch" | |||||||||||||
15 | 1/2" | 112 | 60 | 16 | 13 | 20.1 | 20.3 | 31 | 45 | 200 | 72 | 196 | 145 | 4.4 |
20 | 3/4" | 132 | 73 | 19 | 18 | 25.1 | 25.3 | 37 | 55 | 200 | 88 | 196 | 145 | 4.6 |
25 | 1" | 144 | 78 | 22 | 23 | 32.1 | 32.3 | 44 | 66 | 200 | 105 | 196 | 145 | 4.7 |
32 | 1-1/4" | 165 | 87 | 26 | 30 | 40.1 | 40.3 | 54 | 82 | 200 | 131 | 196 | 145 | 4.9 |
40 | 1-1/2" | 171 | 92 | 31 | 38 | 50.1 | 50.3 | 65 | 98 | 200 | 156 | 196 | 145 | 5.1 |
50 | 2" | 200 | 112 | 38 | 48 | 63.1 | 63.3 | 79 | 120 | 200 | 192 | 196 | 145 | 5.7 |
65 | 2-1/2" | 273 | 136 | 44 | 61 | 75.1 | 75.3 | 92 | 140 | 200 | 224 | 196 | 145 | 7.2 |
80 | 3" | 303 | 158 | 51 | 69 | 90.1 | 90.3 | 108 | 160 | 240 | 256 | 255 | 184 | 9.3 |
100 | 4" | 326 | 176 | 61 | 99 | 110.1 | 110.4 | 146 | 225 | 240 | 360 | 255 | 184 | 12.1 |
Connection diagram
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
