Plastic UPVC Electric Ball Valve Thread Connection For Water Acid And Corrosive Liquid

Product Details

Place of Origin: Wuhan, Hubei, China

Brand Name: Grat

Certification: IP67,CCC, ISO, CE, TUV

Model Number: EK-series

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: USD $200.00-1,000.00/ Piece

Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case

Delivery Time: 3 working days

Payment Terms: L/C, T/T, D/P, PayPal, Western Union

Supply Ability: 1000PCS/Week

Get Best Price
Product Details
Highlight:

Plastic UPVC Electric Ball Valve

,

Corrosive Liquid UPVC Electric Ball Valve

,

Water Plastic Electric Ball Valve

Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Place Of Origin:
Wuhan, Hubei, China
Delivery Time:
3 Working Days
Packaging Details:
Wooden Carton
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Acid
Material:
UPVC
Connection Form:
Thread
Driving Mode::
Electric
Nominal Pressure:
Pn0.1-1.6MPa
Channel:
Straight Through Type
Type:
Floating Ball Valve
Temperature:
Normal Temperature
Application:
Industrial Usage, Water Industrial Usage
Structure:
Floating Ball Valve
Function:
Bypass-Valve
Standard:
Jb/T 9092 API598
HS Code:
8537109090
Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Place Of Origin:
Wuhan, Hubei, China
Delivery Time:
3 Working Days
Packaging Details:
Wooden Carton
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Acid
Material:
UPVC
Connection Form:
Thread
Driving Mode::
Electric
Nominal Pressure:
Pn0.1-1.6MPa
Channel:
Straight Through Type
Type:
Floating Ball Valve
Temperature:
Normal Temperature
Application:
Industrial Usage, Water Industrial Usage
Structure:
Floating Ball Valve
Function:
Bypass-Valve
Standard:
Jb/T 9092 API598
HS Code:
8537109090
Product Description

Plastic Electric Ball Valve UPVC Electric Ball Valve for Water Acid and Corrosive Liquid



Product Description:



Plastic Electric Ball Valve for Water Acid and Corrosive Liquid/ IP67 /Floating Ball Valve


Description:



UPVC Electric Ball Valve is widely applied in the industrial fields of acid alkali and chemical solution.

The body with light weight and strong corrosion resistance is widely used in the piping system of

pure water and raw drinking water drainage and sewage salt water and sea water.



Features:



*With good property of strength toughness abrasion resistance.

*The material is non-toxic and meets the national health standards.
*Light body weight equivalent to 1/5 of the steel tube copper tube 1/6.
*The wall of the pipe is smooth and smooth with small friction resistance and adhesion when transporting fluid

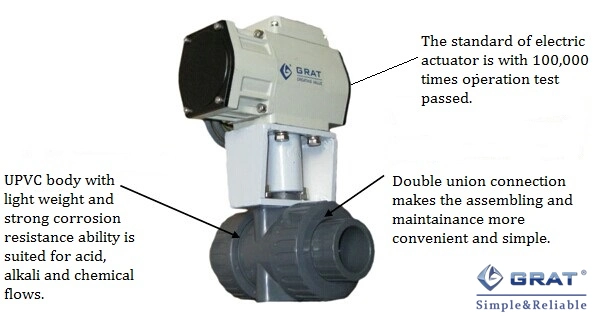

Plastic Electric Ball Valve for Water Acid and Corrosive Liquid
Plastic Electric Ball Valve for Water Acid and Corrosive Liquid



Specification:



Inside norminal diameter DN15~DN100
Supply power DC24V,AC220V,AC380V
Medium temp. -15ºC-60ºC(No congaletion)
Ambient temp. -30ºC-60ºC
Nominal pressure 0.1~1.6MPa
Action mode On/Off 0 ~ 90°gyration
Suited medium Water, Air, Oil, Corrosive chemical liquid
Connection type Flange Double-union

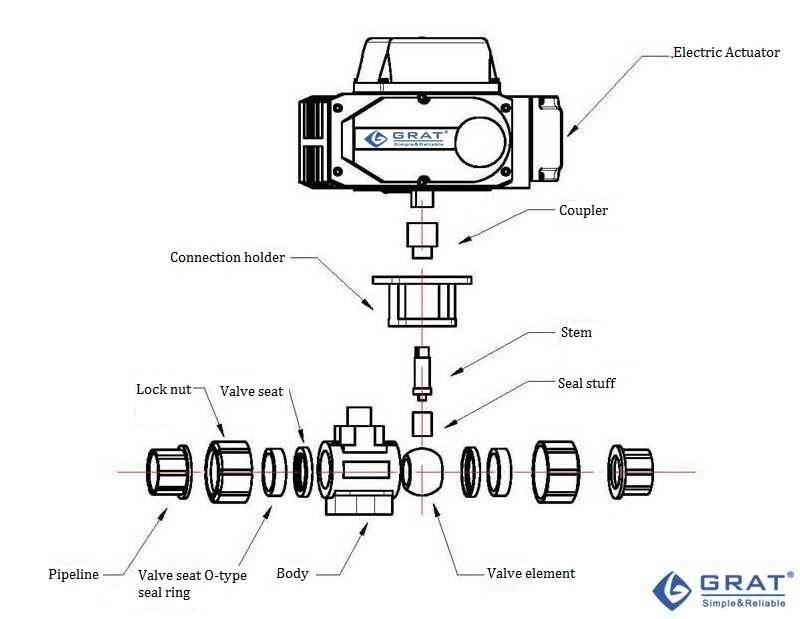

Seal type Soft seal
Shaft PVC
O-RING EPDM
Ring nut PVC
Body PVC
End PVC
O-Ring EPDM
Valve seat seal ring PTFE
Valve element PVC
O-shape seal ring EPDM
Seal holder PVC
Ring PVC
Protection class IP67
Installation direction Installation in any direction (horizontal or inclined installation to extend the service life)
Design&Manufactory standard GB12237-89 AP16D
Flange standard JB79 GB9113 ANSI B16.5 JIS B2212
Length standard GB12221-89
Inspection standard JB/T 9092 API598



Figure and connection size

3 Inch 50mm 12V UPVC Plastic Electric Motorized Actuator Ball Valve

Valve size L L1 L2 D1 D2 D3 D4 D5 H1 H2 W1 W2 Weight
kg
mm inch"
15 1/2" 112 60 16 13 20.1 20.3 31 45 200 72 196 145 4.4
20 3/4" 132 73 19 18 25.1 25.3 37 55 200 88 196 145 4.6
25 1" 144 78 22 23 32.1 32.3 44 66 200 105 196 145 4.7
32 1-1/4" 165 87 26 30 40.1 40.3 54 82 200 131 196 145 4.9
40 1-1/2" 171 92 31 38 50.1 50.3 65 98 200 156 196 145 5.1
50 2" 200 112 38 48 63.1 63.3 79 120 200 192 196 145 5.7
65 2-1/2" 273 136 44 61 75.1 75.3 92 140 200 224 196 145 7.2
80 3" 303 158 51 69 90.1 90.3 108 160 240 256 255 184 9.3
100 4" 326 176 61 99 110.1 110.4 146 225 240 360 255 184 12.1



Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
