IP67 Grade Protection Ce Approval Anti-Corrosion Valve with Electric Actuator
IP67 Grade Protection Ce Approval Anti-Corrosion Valve with Electric Actuator/IP67/Fixed Ball Valve
Description:
This fluorine electric ball valve is designed to switch and cut off various strong corrosive medium,
which is widely applied in petroleum, chemical, pesticide, dye, acid, alkali and so on, and which is the
most ideal choice for anti-corrosion equipment at present.
Specification:
| Power supply | AC220V |
| Body size | DN15-250 |
| Medium Temp | -80°C~160°C(no congelation.) |
| Operating pressure | PN1.0~2.5(MPa) |
| Action mode | 4-20mA Signal input feedback, 0-90° gyration |
| Action time | 4~30S |
| Body connections | Flange |
| Body material | WCB, ZG1CrM0, ZG1Cr18Ni9Ti |
| Sealed material | PTFE |
| Actuator material | Casting aluminum alloy |
| Applicable medium | Acid, alkali, salt, chlorine gas, steam, source water, mine pulp and paper pulp, aqua regia, oxidant, reducing agent, corrosive chemical liquid |

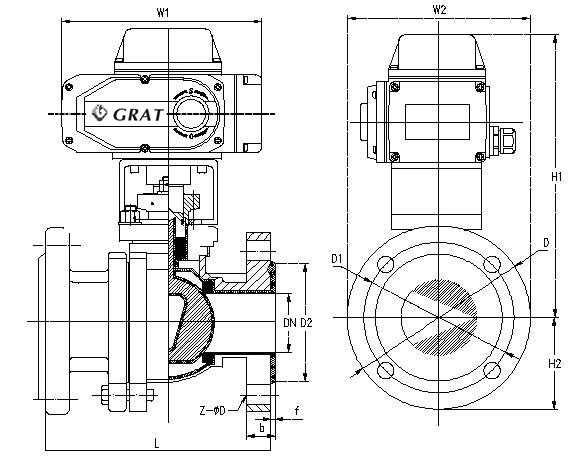

| DN | L | D | D1 | D2 | Z-ΦD | f | b | H2 | H1 | W1 | W2 |
| 15 | 140 | 95 | 65 | 45 | 4-14 | 2 | 13 | 50 | 250 | 196 | 145 |
| 20 | 140 | 105 | 75 | 55 | 4-14 | 2 | 13 | 55 | 255 | 196 | 145 |
| 25 | 150 | 115 | 85 | 65 | 4-14 | 2 | 13 | 60 | 260 | 196 | 145 |
| 32 | 165 | 135 | 100 | 78 | 4-18 | 2 | 13 | 70 | 270 | 196 | 145 |
| 40 | 180 | 145 | 110 | 85 | 4-18 | 3 | 14 | 75 | 275 | 196 | 145 |
| 50 | 200 | 160 | 125 | 100 | 4-18 | 3 | 17 | 80 | 280 | 196 | 145 |
| 65 | 220 | 180 | 145 | 120 | 4-18 | 3 | 17 | 90 | 290 | 196 | 145 |
| 80 | 250 | 195 | 160 | 135 | 8-18 | 3 | 18 | 100 | 330 | 255 | 184 |
| 100 | 280 | 215 | 180 | 155 | 8-18 | 3 | 19 | 110 | 340 | 255 | 184 |
| 125 | 320 | 245 | 210 | 185 | 8-18 | 3 | 21 | 125 | 355 | 255 | 184 |
| 150 | 360 | 280 | 240 | 210 | 8-23 | 3 | 23 | 140 | 370 | 255 | 184 |
| 200 | 400 | 335 | 295 | 265 | 8-23 | 3 | 24 | 170 | 400 | 255 | 184 |
| 250 | 450 | 390 | 350 | 320 | 12-23 | 3 | 26 | 200 | 485 | 354 | 273 |
| 300 | 610 | 440 | 400 | 368 | 12-23 | 4 | 28 | 220 | 505 | 354 | 273 |
| 350 | 686 | 500 | 460 | 428 | 16-23 | 4 | 31 | 250 | 535 | 354 | 273 |
The material of the main parts
Part name |
Body |
Bonnet |
Stuffing box |
Gland ring |
Seat |
Packing |
Spanner |
Material Trademark |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
WCB 40Cr ZG 1Cr18Ni9Ti |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
FEP |
FEP |
WCB |
Applicable channeling medium
Medium state |
Medium Temp. |
Medium pressure |
Medium characteristics |
Medium concentration |
Medium name |
Liquid |
-80ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
Unlimited |
Acid, alkali, salt, chlorine, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reducing agent. |
Gas |
-80ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
Unlimited |
|
Mixture of liquid and solid |
-80ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
<60% |
Constrol Diagram:
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
