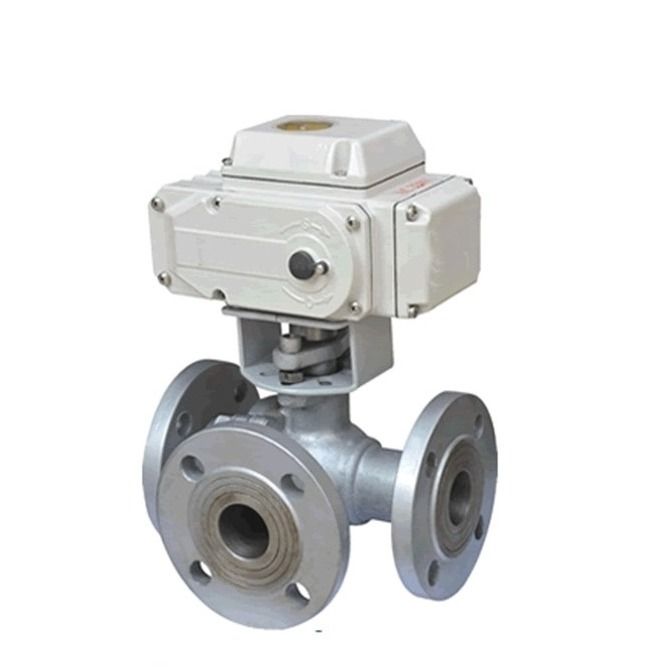

Electric Actuator Flange Stainless Steel 3 Way Motorized Ball Valve
Product Description:
Electric Actuator Flange Stainless Steel 3 Way Motorized Ball Valve/IP67/Fixed Ball Valve
Description:
Specification:
| Power supply | AC24V,DC24V,AC110,AC220V,AC380V |
| Valve size | DN15~200 |
| Medium Temp | 0°C-95°C |
| Ambient Temp | -30°C~+60°C |
| Operating pressure | PN16 |
| Action mode | Switch to cut off,0-90°gyration |
| Power consumption | 8VA-30VA |
| Body connections | Inside thread |
| Body material | SUS304,SUS316 |
| Seal material | PTFE,EPDM |
| Actuator material | Casting Aluminum alloy |
| Applicable working condition | Air-conditioning system, fire-extinguishing system, water treatment system, pipeline purging, analytical instruments, and smoke sampling |
| Installation mode | in any angle. (Prefer to horizontal or inclined installation to extend the service life.) |

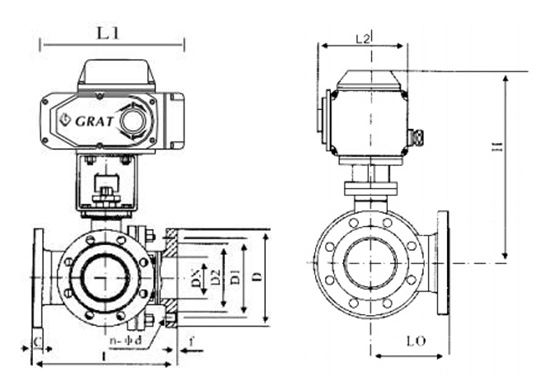

Figure and connection size
| Valve size | Dimension(mm) | Flange(mm) | ||||||||||
| mm | Inch | L | L0 | L1 | L2 | H | D | D1 | D2 | C | F | n-φd |
| 15 | 1/2 | 150 | 75 | 196/248 | 121/158 | 185/191 | 95 | 65 | 46 | 14 | 2 | 4-φ14 |
| 20 | 3/4 | 150 | 75 | 196/248 | 121/158 | 197/225 | 105 | 75 | 56 | 16 | 2 | 4-φ14 |
| 25 | 1 | 180 | 90 | 196/248 | 121/158 | 199/227 | 115 | 85 | 65 | 16 | 2 | 4-φ14 |
| 32 | 1 1/4 | 200 | 100 | 196/248 | 121/158 | 240/266 | 140 | 100 | 76 | 18 | 3 | 4-φ18 |
| 40 | 1 1/2 | 220 | 110 | 196/248 | 121/158 | 255/271 | 150 | 110 | 84 | 18 | 3 | 4-φ18 |
| 50 | 2 | 240 | 120 | 196/248 | 121/158 | 286/307 | 165 | 125 | 99 | 20 | 3 | 4-φ18 |
| 65 | 2 1/2 | 260 | 130 | 196/248 | 121/158 | 330/335 | 185 | 145 | 118 | 20 | 3 | 4-φ18 |
| 80 | 3 | 280 | 140 | 196/248 | 121/158 | 349/383 | 200 | 160 | 132 | 20 | 3 | 8-φ18 |
| 100 | 4 | 320 | 160 | 196/248 | 121/158 | 421/487 | 220 | 180 | 156 | 22 | 3 | 8-φ18 |
| 125 | 5 | 380 | 190 | 196/248 | 121/158 | 485/557 | 250 | 210 | 184 | 22 | 3 | 8-φ18 |
| 150 | 6 | 440 | 220 | 196/248 | 121/158 | 528/629 | 285 | 240 | 211 | 24 | 3 | 8-φ22 |
| 200 | 8 | 550 | 275 | 196/248 | 121/158 | 702/750 | 340 | 295 | 266 | 24 | 3 | 12-φ22 |
Control Diagram
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
