20 Inch WCB Body Ball Full Bore High Temperature Resistance Electric Ball Valve
20 Inch WCB Body Ball Full Bore High Temperature Resistance Electric Ball Valve
Basic Properties
Country Of Origin
Wuhan, Hubei, China
Brand Name
Grat
Certificate
IP67,CCC, ISO, CE、CNAS
PRODUCT MODEL
EK-000052
Trading Properties
MOQ
1pc
Unit Price
USD $150.00/ Piece
Payment Method
L/C, T/T, D/P, PayPal, Western Union
Supply Capacity
1000PCS/Week
Product Summary
20 Inch WCB Body Ball Full Bore High Temperature Resistance Electric Ball Valve Product Description: 20 Inch WCB Body Ball Full Bore High Temperature Resistance Electric Ball Valve/IP67/Fixed Ball Valve Description: This electric control valve is a device to regulate and cut off the industrial ...
Product Details
Highlight:
Full Bore Electric Ball Valve
,20 Inch Electric Ball Valve
Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Place Of Origin:
Wuhan, Hubei, China
Delivery Time:
3 Working Days
Packaging Details:
Carton/Wooden Box
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Steam
Material:
Stainless Steel
Connection Form:
Flange
Driving Mode:
Electric
Nominal Pressure:
PN1.0-32.0MPa
Channel:
Straight Through Type
Type:
Fixed Ball Valve
Temperature:
High Temperature
Application:
Industrial Usage, Water Industrial Usage
Medium:
Mine Pulp, Coal Pulp, Paper Pulp, Water, Oil, Gas.
Structure:
Fixed Ball Valve
Function:
Bypass-Valve
Standard:
ASME
Size:
Dn15-250
HS Code:
8481804090
Product Description
20 Inch WCB Body Ball Full Bore High Temperature Resistance Electric Ball Valve
Product Description:
20 Inch WCB Body Ball Full Bore High Temperature Resistance Electric Ball Valve/IP67/Fixed Ball Valve

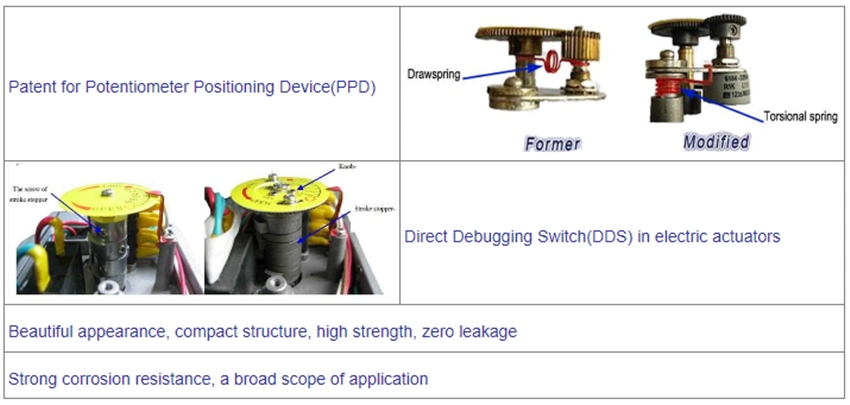

Description:
This electric control valve is a device to regulate and cut off the industrial medium flow with the
high requirement of abrasion resistance and self-cleaning in the absence of air supply.
(mine pulp, paper pulp)
Specification:
| Valve size | DN15-DN350((Please contact us for the detailed data of the larger diameter valve) |
| Body rating | PN1.6~6.4MPa, |
| End connection | Wafer,Flange |
| Seal type | Metal seat |
| Action time | 15~120S(0-90°) |
| Power supply | AC220V,AC 380V, DC 24V |
| Input signal | 4~20mA 0~5V |
| Output signal | 4~20mA 0~5V |
| Temp. | ≤350ºC |
| Ambient temp. | -30~60ºC |
| Flow coefficient(CV): | Please download the data on our website for reference.(Custom flow coefficient depends on the customer's requirement.) |
| Applicable medium | Mine pulp, coal pulp, paper pulp, water, oil, and gas. |
| Dead zone | 0.5% |
| Repeatability error | 0.5% |
| Body material | WCB, SS304, SS316, SS316L |
| Seat material | SS304, SS316, SS316L |
| Trim material | SS304, SS316, SS316L |
| Manufacturing standard | GB/T 122387-89 |
| Flange standard | GB9113-2000,GB17241.6-1998 |
| Structure standard | GB12221-89 |
| Inspection standard | GB/T 13927-92 |
Installation drawing
| DN(mm) | D1 | D2 | d | K | D | M | B | F | L | H1 | H2 | W1 | W2 | Weight kg |
| 15 | 15 | 28 | 45 | 65 | 95 | 4-Φ14 | 14 | 2 | 102 | 290 | 55 | 196 | 145 | |
| 20 | 15 | 28 | 55 | 75 | 105 | 4-Φ14 | 14 | 2 | 102 | 300 | 60 | 196 | 145 | |
| 25 | 20 | 40 | 66 | 85 | 115 | 4-Φ14 | 14 | 2 | 102 | 310 | 65 | 196 | 145 | |
| 32 | 25 | 46 | 78 | 100 | 135 | 4-Φ18 | 16 | 2 | 114 | 320 | 75 | 196 | 145 | |
| 40 | 32 | 54 | 85 | 110 | 145 | 4-Φ18 | 16 | 2 | 114 | 330 | 80 | 196 | 145 | |
| 50 | 40 | 65 | 100 | 125 | 160 | 4-Φ18 | 16 | 2 | 124 | 340 | 85 | 196 | 145 | |
| 65 | 50 | 80 | 120 | 145 | 180 | 4-Φ18 | 18 | 2 | 145 | 350 | 100 | 196 | 145 | |
| 80 | 65 | 100 | 135 | 160 | 195 | 8-Φ18 | 20 | 2 | 165 | 360 | 105 | 196 | 145 | |
| 100 | 80 | 110 | 155 | 180 | 215 | 8-Φ18 | 20 | 2 | 194 | 420 | 115 | 196 | 145 | |
| 125 | 100 | 135 | 185 | 210 | 245 | 8-Φ18 | 22 | 3 | 210 | 430 | 130 | 255 | 184 | |
| 150 | 125 | 165 | 210 | 240 | 280 | 8-Φ23 | 24 | 3 | 229 | 450 | 150 | 255 | 184 | |
| 200 | 160 | 205 | 265 | 295 | 335 | 12-Φ23 | 26 | 3 | 243 | 480 | 175 | 255 | 184 | |
| 250 | 210 | 260 | 320 | 355 | 405 | 12-Φ26 | 30 | 3 | 297 | 520 | 220 | 255 | 184 | |
| 300 | 250 | 322 | 375 | 410 | 460 | 12-Φ26 | 30 | 3 | 340 | 600 | 250 | 255 | 184 | |
| 350 | 300 | 365 | 435 | 470 | 520 | 16-Φ26 | 34 | 3 | 422 | 630 | 280 | 255 | 184 |

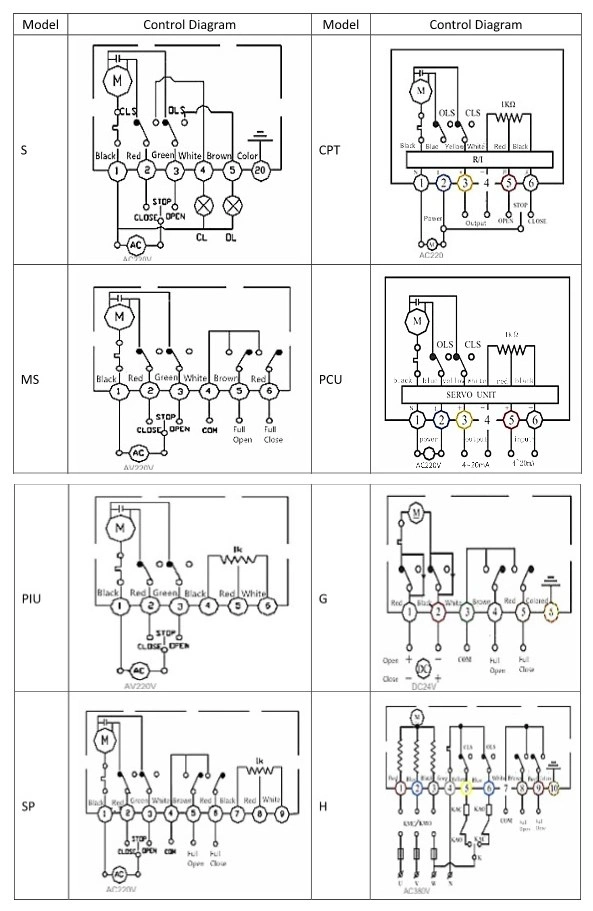

Control Diagram
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
| PIU | ON/OFF,output 0~1000Ω signal | G | ON/OFF,output passive contact signal |
| SP | ON/OFF,middle position control | H | ON/OFF,output passive contact signa |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
