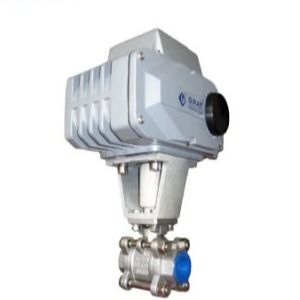

Chemical Industry Electric Operation Control 1 Inch SS316 Ball Valve
Chemical Industry Electric Operation Control 1 Inch SS316 Ball Valve
Basic Properties
Country Of Origin
Wuhan, Hubei, China
Brand Name
Grat
Certificate
IP67,CCC, ISO, CE、CNAS
PRODUCT MODEL
EV-0000264
Trading Properties
MOQ
1pc
Unit Price
USD $100.00/ Piece
Payment Method
L/C, T/T, D/P, PayPal, Western Union
Supply Capacity
1000PCS/Week
Product Summary
Chemical Industry Electric Operation Control 1 Inch SS316 Ball Valve Product Description: Chemical Industry Electric Operation Control 1 Inch SS316 Ball Valve/IP67/Fixed Ball Valve Description: Electric screw ball valve lock covers the services of large pressure drops and easy blocking to quickly ...
Product Details
Highlight:
SS316 Electric Operation Control Ball Valve
,SS316 Ball Valve
,1 Inch Ball Valve
Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Place Of Origin:
Wuhan, Hubei, China
Delivery Time:
3 Working Days
Packaging Details:
Carton/Wooden Box
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Water
Material:
Stainless Steel
Connection Form:
Thread
Driving Mode:
Electric
Nominal Pressure:
PN1.0-32.0MPa
Channel:
Straight Through Type
Type:
Fixed Ball Valve
Temperature:
Normal Temperature
Application:
Industrial Usage, Water Industrial Usage
Medium:
Water, Oil, Gas
Control Signal:
4-20mA
Feedback Signal:
4-20mA
Structure:
Fixed Ball Valve
Function:
Bypass-Valve
Standard:
DIN
Size:
Dn15-100
HS Code:
8481804090
Product Description
Chemical Industry Electric Operation Control 1 Inch SS316 Ball Valve
Product Description:
Chemical Industry Electric Operation Control 1 Inch SS316 Ball Valve/IP67/Fixed Ball Valve
Description:
Electric screw ball valve lock covers the services of large pressure drops and easy blocking to
quickly switch and cut off the medium of pipeline, whose superior product performance and
cost-effective far exceeds the competitive products of solenoid valve.
Specification:
| Power supply | AC220V 50/60HZ |
| Body ratings | DN15-100 |
| Medium Temp | ≤220°C |
| Ambient Temp | ≤50°C |
| Operating pressure | PN16, PN25, PN40 |
| Action mode | Switch to cut off |
| Body connections | Flange type, connecting thread |
| Body material | Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB |
| Plug material | Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB |
| Leakage | Compliance with the standards ANSIB16.104 5 |
| Seal type | Two-sided sphere seal |
| Applicable medium | Water, oil, gas |
| Protection level | IP67 |
| Dead zone | 0.5% |
| Repeatability error | 0.5% |
| Manufacturing standards | JB/T8692-1998 |
Figure and connection size
Control Diagram
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
| PIU | ON/OFF,output 0~1000Ω signal | G | ON/OFF,output passive contact signal |
| SP | ON/OFF,middle position control | H | ON/OFF,output passive contact signa |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
