250 Degree Temperature Steam Metal Seat Ball Valve with Electric Motorized Actuator
Product Description:
250 Degree Temperature Steam Metal Seat Ball Valve with Electric Motorized Actuator/IP67/Fixed Ball Valve
Description:
With high temperature resistance, corrosion resistance and high control precision, EV series electric flow
control valve specially is best suited to the situation of no air supply, all kinds of mediums with self-cleaning and
abrasion resistance such as mine pulp and paper pulp, which meets technical parameters by regulating and
controlling the flow in various special technologic areas.
Features:
* The flow modulation characteristics
* Design for high temperature resistance
* The patent positioning technology
* High precision, Small gyration error
* Allowing a large pressure drops
* The valve owns a self-cleaning function to effectively guarantee the piping circulating
* Good seal performance
* Erosion resistance, design for free maintenance
Specification:
| Body size | DN15-DN250 |
| Body ratings | PN1.6MPa |
| Body connections | Wafer, flange |
| Seat type | metal seal,Soft seal |
| Body material | SUS304 SUS316 WCB |
| Plug material | SUS304 SUS316 WCB |
| Action time | 30S(0-90°) |
| Power supply | AC220V |
| Control signal | 4~20mA 0~5V |
| Output signal | 4~20mA 0~5V |
| Operating pressure | PN1.6Mpa PN2.5Mpa |
| Medium Temp | ≤350ºC |
| Ambient Temp | ≤50ºC |
| Flow coefficient | Custom flow coefficient depends on the customer's requirement |
| Applicable medium | mine pulp, coal pulp, paper pulp, water, oil, gas. |
| Dear zone | 0.5% |
| Repeatability error | 0.5% |

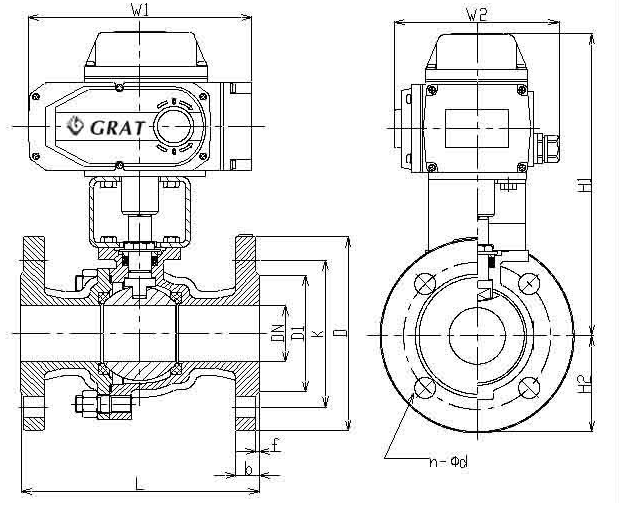

| DN | L | D | K | D1 | n-Φd | b | f | H1 | H2 | W1 | W2 |
| 15 | 130 | 95 | 65 | 46 | 4-Φ14 | 14 | 2 | 250 | 50 | 196 | 145 |
| 20 | 140 | 105 | 75 | 56 | 4-Φ14 | 16 | 2 | 255 | 55 | 196 | 145 |
| 25 | 150 | 115 | 85 | 65 | 4-Φ14 | 16 | 2 | 260 | 60 | 196 | 145 |
| 32 | 165 | 135 | 100 | 76 | 4-Φ18 | 18 | 3 | 270 | 70 | 196 | 145 |
| 40 | 180 | 145 | 110 | 84 | 4-Φ18 | 18 | 3 | 275 | 75 | 196 | 145 |
| 50 | 200 | 160 | 125 | 99 | 4-Φ18 | 20 | 3 | 285 | 85 | 196 | 145 |
| 65 | 220 | 180 | 145 | 118 | 4-Φ18 | 20 | 3 | 350 | 95 | 255 | 184 |
| 80 | 250 | 195 | 160 | 132 | 8-Φ18 | 20 | 3 | 360 | 100 | 255 | 184 |
| 100 | 280 | 215 | 180 | 156 | 8-Φ18 | 22 | 3 | 370 | 110 | 255 | 184 |
| 125 | 320 | 245 | 210 | 184 | 8-Φ18 | 22 | 3 | 380 | 125 | 255 | 184 |
| 150 | 360 | 280 | 240 | 211 | 8-Φ22 | 24 | 3 | 390 | 140 | 255 | 184 |
| 200 | 400 | 335 | 295 | 266 | 12-Φ22 | 24 | 3 | 420 | 170 | 255 | 184 |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
