DC24V 3PC Stainless Steel Thread Type Electric Actuator Control Ball Valve

Product Details

Place of Origin: Wuhan, Hubei, China

Brand Name: Grat

Certification: IP67,CCC, ISO, CE,CNAS

Model Number: EV-000033

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: USD $100.00/ Piece

Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case

Delivery Time: 3 working days

Payment Terms: L/C, T/T, D/P, PayPal, Western Union

Supply Ability: 1000PCS/Week

Get Best Price
Product Details
Highlight:
Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Place Of Origin:
Wuhan, Hubei, China
Delivery Time:
3 Working Days
Packaging Details:
Carton/Wooden Box
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Oil
Material:
Stainless Steel
Connection Form:
Thread
Driving Mode:
Electric
Nominal Pressure:
PN1.0-32.0MPa
Channel:
Straight Through Type
Type:
Fixed Ball Valve
Temperature:
Normal Temperature
Application:
Industrial Usage, Water Industrial Usage
Medium:
Water, Oil, Gas
Structure:
Fixed Ball Valve
Function:
Bypass-Valve
Standard:
CE,ISO,Sil,RoHS
Size:
Dn15-100
HS Code:
8481804090
Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Place Of Origin:
Wuhan, Hubei, China
Delivery Time:
3 Working Days
Packaging Details:
Carton/Wooden Box
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Oil
Material:
Stainless Steel
Connection Form:
Thread
Driving Mode:
Electric
Nominal Pressure:
PN1.0-32.0MPa
Channel:
Straight Through Type
Type:
Fixed Ball Valve
Temperature:
Normal Temperature
Application:
Industrial Usage, Water Industrial Usage
Medium:
Water, Oil, Gas
Structure:
Fixed Ball Valve
Function:
Bypass-Valve
Standard:
CE,ISO,Sil,RoHS
Size:
Dn15-100
HS Code:
8481804090
Product Description

DC24V 3PC Stainless Steel Thread Type Electric Actuator Control Ball Valve


Product Description:



DC24V 3PC Stainless Steel Thread Type Electric Actuator Control Ball Valve/IP67/Fixed Ball Valve



Description:
DC24V 3PC Thread Type Electric Actuator Control Ball Valve
Electric screw ball valve lock covers the services of large pressure drops and easy blocking to quickly

switch and cut off the medium of pipeline, whose superior product performance and cost-effective far

exceeds the competitive products of solenoid valve.



Specification:



Power supply AC220V 50/60HZ
Body ratings DN15-100
Medium Temp ≤220°C
Ambient Temp ≤50°C
Operating pressure PN16, PN25, PN40
Action mode Switch to cut off
Body connections Flange type, connecting thread
Body material Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB
Plug material Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB
Leakage Compliance with the standards ANSIB16.104 5
Seal type Two-sided sphere seal
Applicable medium Water, oil, gas
Protection level IP67
Dead zone 0.5%
Repeatability error 0.5%
Manufacturing standards JB/T8692-1998

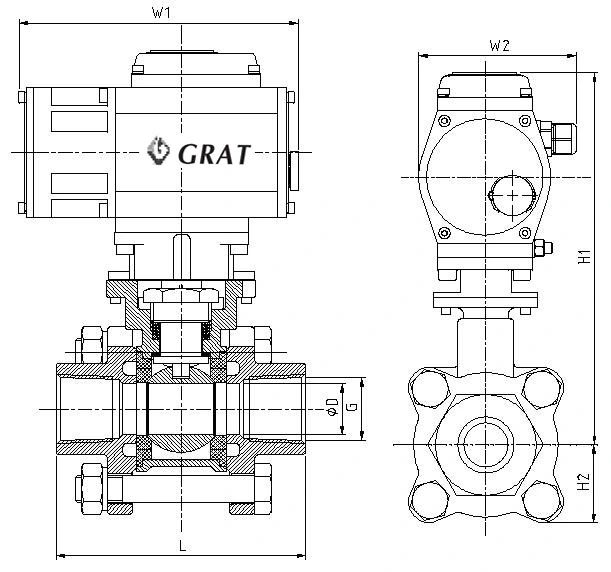

Installation size figure


DC24V 3PC Thread Type Electric Actuator Control Ball Valve



Control Diagram
High Quality Electric Motorized Dn100 4 Inch Cast Steel Ball Valve



Model Circuit Model Circuit
S ON/OFF,no output signal CPT ON/OFF,output 4~20mA signal
MS ON/OFF,output passive contact signal PCU Regulation,output 4~20mA signal
PIU ON/OFF,output 0~1000Ω signal G ON/OFF,output passive contact signal
SP ON/OFF,middle position control H ON/OFF,output passive contact signa



Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
