Product Details
Place of Origin: Wuhan, Hubei, China
Brand Name: Grat
Certification: IP68,CCC, ISO, CE、CNAS
Model Number: EB-00006
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD $10.00/ Piece
Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case
Delivery Time: 3 working days
Payment Terms: L/C, T/T, D/P, PayPal, Western Union
Supply Ability: 1000PCS/Week
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Place Of Origin: |
Wuhan, Hubei, China |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Acid |
Driving Mode: |
Electric |
Connection Form: |
Wafer |
Structure: |
Centre Sealing |
Seal Form: |
Auto Sealed |
Valve Stem: |
Normal |
Working Temperature: |
Normal Temperature (-40°C |
Valve Body: |
Casting |
Application: |
Industrial Usage |
Work Pressure: |
Low Pressure (Pn<1.6mpa) |
Material Of Seal Surface: |
Soft Sealed |
Standard: |
DIN |
HS Code: |
8481804090 |
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Place Of Origin: |
Wuhan, Hubei, China |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Acid |
Driving Mode: |
Electric |
Connection Form: |
Wafer |
Structure: |
Centre Sealing |
Seal Form: |
Auto Sealed |
Valve Stem: |
Normal |
Working Temperature: |
Normal Temperature (-40°C |
Valve Body: |
Casting |
Application: |
Industrial Usage |
Work Pressure: |
Low Pressure (Pn<1.6mpa) |
Material Of Seal Surface: |
Soft Sealed |
Standard: |
DIN |
HS Code: |
8481804090 |
UPVC Wafer Connection Normal Temperature Electric Electric Butterfly Valve
Product Description:
UPVC Wafer Connection Normal Temperature Electric Electric Butterfly Valve/IP67/Soft Sealed
Description:
UPVC electric butterfly valve is suited to low pressure and room temperature services
to switch, control, and cut off various strong corrosive fluid mediums.
With lightweight and strong corrosion resistance, the body is widely applied in the piping
system of pure water and raw drinking water, drainage and sewage, brine and seawater,
acid-alkali and chemical solution.
Features:
* Beautiful appearance, compact structure, small flow resistance.
* Strong corrosion resistance, a broad scope of application.
* Light weight, diversified performance, easy to install.

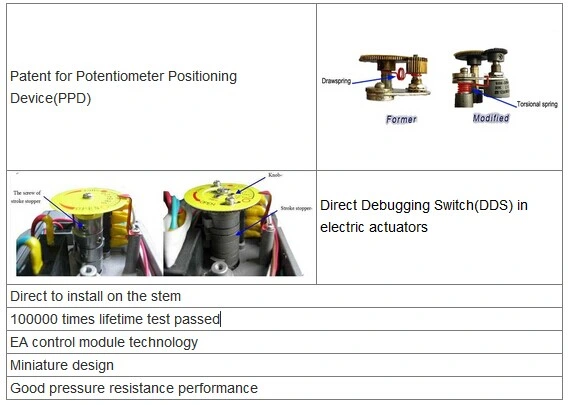

* The patent positioning technology
* Simple structure, easy to operate, high cost-effective.
Specification:
| Power supply | AC220V |
| Valve size | DN50-300 |
| Medium Temp | -15ºC ~ 60ºC(no congelation) |
| Ambient Temp | -25ºC ~ 55ºC |
| Body ratings | 1.0Mpa |
| Action mode | Switch to cut off,0 ~ 90°gyration |
| Action time | 4, 15, 30, 60S |
| Protector | Overheat protection |
| Body connections | Wafer, flange |
| Body material | UPVC |
| Seal material | PTFE,EPDM |
| Actuator material | Casting aluminum alloy |
| Applicable medium | Water, air, oil, corrosive chemical liquid |
| Protection level | IP68 |
| Installation mode | Install it in any angle(Prefer to horizontal or inclined installation to extend service life.) |

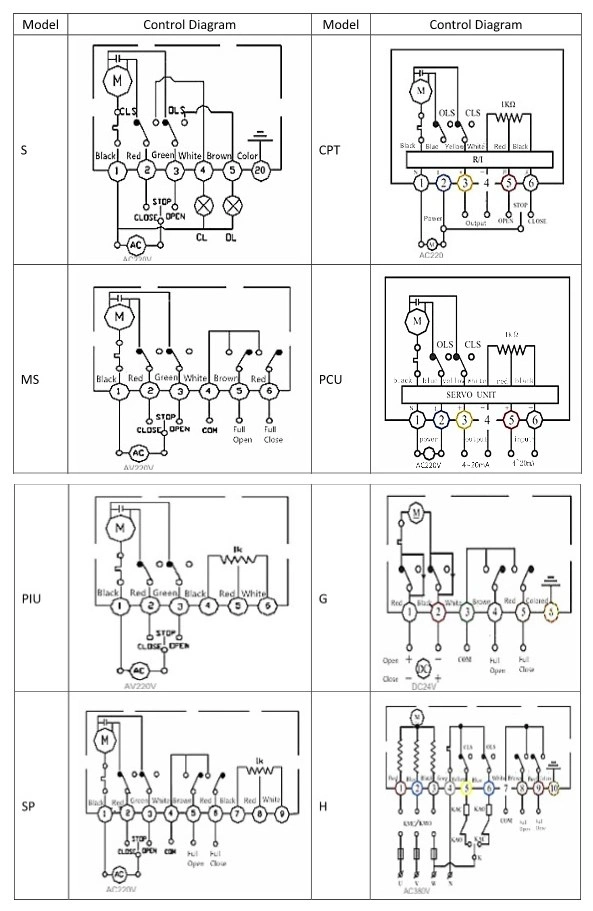

Control Diagram
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
