Fluorine Centre Sealing Electric Flange Connection Butterfly Valve AC220V DIN Standard
Fluorine Centre Sealing Electric Flange Connection Butterfly Valve AC220V DIN Standard
Basic Properties
Country Of Origin
Wuhan, Hubei, China
Brand Name
Grat
Certificate
IP67,CCC, ISO, CE、CNAS
PRODUCT MODEL
EDN40-1000
Trading Properties
MOQ
1pc
Unit Price
USD $150.00/ Piece
Payment Method
L/C, T/T, D/P, PayPal, Western Union
Supply Capacity
1000PCS/Week
Product Summary
Fluorine Centre Sealing Flange Connection Electric Butterfly Valve Product Description: Fluorine Electric Butterfly Valve/IP67/Metal Hard Sealed Description: Specification: Body ratings PN1.0/PN1.6Mpa/PN2.5Mpa Valve size DN50-DN1200 Seal material Alloy metal seal Stem seal NBR, HNBR, PTFE, GRAPHITE ...
Product Details
Highlight:
Electric Flange Connection Butterfly Valve
,Flange Connection Butterfly Valve DIN
Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Place Of Origin:
Wuhan, Hubei, China
Delivery Time:
3 Working Days
Packaging Details:
Carton/Wooden Box
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Acid
Driving Mode:
Electric
Connection Form:
Flange
Structure:
Centre Sealing
Seal Form:
Force Sealed
Valve Stem:
Normal
Working Temperature:
Medium Temperature (120°C
Valve Body:
Casting
Application:
Industrial Usage, Water Industrial Usage, Food, Lubrication, Fibrous Fluid, Water, Oil, Gas.
Valve Size:
Dn40-1000
Body Connections:
Wafer,Flange
Action Mode:
Switch To Cut Off, 0-90° Gyration
Actuator Material:
Casting Aluminum Alloy
Action Time:
4-30s
Work Pressure:
Mid-Pressure (2.5mpa< Pn <6.4mpa)
Material Of Seal Surface:
Metal Hard Sealed
Standard:
DIN
Power Supply:
AC220V
Body Material:
Wcb, Qt450-10, Ht200, Ht250
Applicable Medium:
Vitriol, Acid, Chlorine, Alkali, Aqua Regia And Ot
HS Code:
8481804090
Design Specification:
GB/T 12238 / API 609 / Mss Sp-67
Product Description
Fluorine Centre Sealing Flange Connection Electric Butterfly Valve
Product Description:
Fluorine Electric Butterfly Valve/IP67/Metal Hard Sealed
Description:
Specification:
| Body ratings | PN1.0/PN1.6Mpa/PN2.5Mpa |
| Valve size | DN50-DN1200 |
| Seal material | Alloy metal seal |
| Stem seal | NBR, HNBR, PTFE, GRAPHITE |
| Body material | WCB/SUS304/SUS316L/CF8/CF8L Stainless Steel |
| Disc material | WCB/SUS304/SUS316L/CF8/CF8L Stainless Steel |
| Body connections | Wafer/flange |
| Power supply | AC220V |
| Control signal | 4~20mA 0~5V |
| Output signal | 4~20mA 0~5V |
| Operating pressure | PN1.6Mpa, PN2.5Mpa |
| Medium temperature | Below 540 Celesius degree |

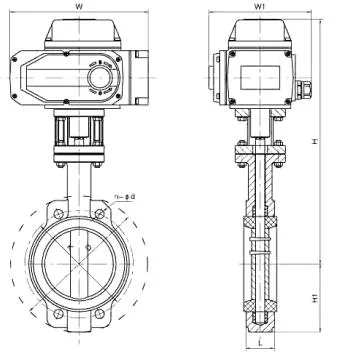

Installation Diagram
The material for main parts
| Item | Part name |
Material |
1 |
Body |
Carbon steel,CF8 Stainless steel,CF8M Stainless steel,CF3M Stainless steel |
2 |
Disc |
Carbon steel,CF8 Stainless steel,Cram Stainless steel,CF3M Stainless steel |
3 |
Rotatable shaft |
2Cr13,304 Stainless steel,316 Stainless steel,316L Stainless steel |
4 |
Disc seal ring |
all kinds of stainless steel composite |
5 |
Shaft sleeve |
ZCuZn38Mn2Pb2,stainless steel composite, PTFE |
6 |
Packing |
Grafoil |

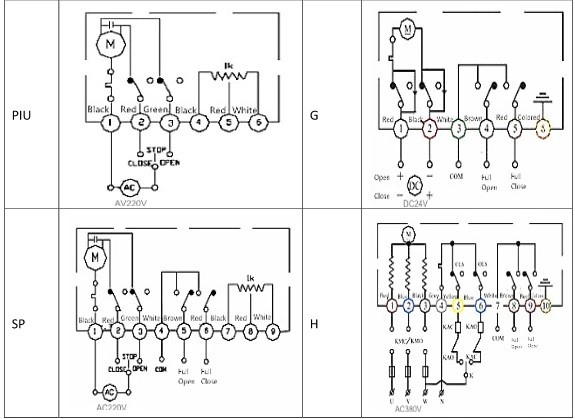

Control Diagram
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
