Home > products > Fluorine Electric Butterfly Valve > DN40 - DN1000 IP67 Electric Butterfly Valve With Normal Temperature

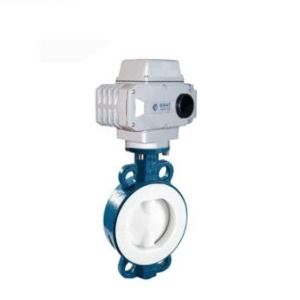

DN40 - DN1000 IP67 Electric Butterfly Valve With Normal Temperature

Product Details

Place of Origin: Wuhan, Hubei, China

Brand Name: Grat

Certification: IP67,CCC, ISO, CE、CNAS

Model Number: EB-00002

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: USD $10.00/ Piece

Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case

Delivery Time: 3 working days

Payment Terms: L/C, T/T, D/P, PayPal, Western Union

Supply Ability: 1000PCS/Week

Get Best Price
Product Details
Highlight:

IP67 Electric Butterfly Valve

,

DN1000 Electric Butterfly Valve

,

DN40 Butterfly Valve IP67

Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Place Of Origin:
Wuhan, Hubei, China
Delivery Time:
3 Working Days
Packaging Details:
Carton/Wooden Box
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Acid
Driving Mode:
Electric
Connection Form:
Wafer
Structure:
Centre Sealing
Seal Form:
Auto Sealed
Valve Stem:
Normal
Working Temperature:
Normal Temperature (-40°C
Valve Body:
Casting
Application:
Industrial Usage, Water Industrial Usage, Food, Lubrication, Fibrous Fluid, Water, Oil, Gas.
Valve Size:
Dn40-1000
Body Material:
Wcb, Qt450-10, Ht200, Ht250
Applicable Medium:
Vitriol, Acid, Chlorine, Alkali, Aqua Regia And Ot
Work Pressure:
Mid-Pressure (2.5mpa< Pn <6.4mpa)
Material Of Seal Surface:
Metal Hard Sealed
Standard:
DIN
Actuator Material:
Casting Aluminum Alloy
Seal Ring:
PTFE
HS Code:
8481804090
Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Place Of Origin:
Wuhan, Hubei, China
Delivery Time:
3 Working Days
Packaging Details:
Carton/Wooden Box
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Acid
Driving Mode:
Electric
Connection Form:
Wafer
Structure:
Centre Sealing
Seal Form:
Auto Sealed
Valve Stem:
Normal
Working Temperature:
Normal Temperature (-40°C
Valve Body:
Casting
Application:
Industrial Usage, Water Industrial Usage, Food, Lubrication, Fibrous Fluid, Water, Oil, Gas.
Valve Size:
Dn40-1000
Body Material:
Wcb, Qt450-10, Ht200, Ht250
Applicable Medium:
Vitriol, Acid, Chlorine, Alkali, Aqua Regia And Ot
Work Pressure:
Mid-Pressure (2.5mpa< Pn <6.4mpa)
Material Of Seal Surface:
Metal Hard Sealed
Standard:
DIN
Actuator Material:
Casting Aluminum Alloy
Seal Ring:
PTFE
HS Code:
8481804090
Product Description

Fluorine Centre Sealing Electric Butterfly Valve with Normal Temperature



Product Description:



Fluorine Centre Sealing Electric Butterfly Valve with Normal Temperature/IP67/Metal Hard Sealed



Description:

Fluorine Electric Butterfly Valve with Normal Temperature



Fluorine butterfly valve adopts a fluorine plastic lining disc with spherical sealing surface, and

is matched with a silicone gasket on the bottom of the seat to regulate the sealing performance

of valve. With the tight sealing performance and ultra-long service life, the valve is easy to operate

and suited to the requirements of reliable sealing and good modulation performance by quickly

cutting off or regulating the flow.



Features:

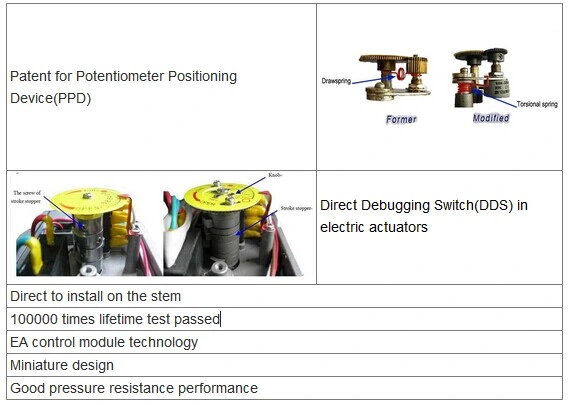

* GRAT new technology patent for Potentiometer Positioning Device(PPD).
* The new technology for Direct Debugging Switch(DDS) in electric actuators.
* Small opening torque, good seal performance, long service life.
* Beautiful appearance, simple and compact structure, high strength, zero leakage.
* Strong corrosion resistance, a broad scope of application.
* Diversified performance, suitable for large pressure drops services and large temperature drops services, convenient to install.
* The patent positioning technology.
* Simple structure, small flow resistance, easy operation, high cost-effective.



Specification:



Power supply AC220V
Valve size DN40-1000
Medium Temp -50ºC~160ºC(no congelation)
Operating pressure

PN1.0~1.6(MPa)
Action mode

Switch to cut off, 0-90° gyration

Action time

 4 ~ 30S

Body connections Flange, wafer
Body material WCB,QT450-10, HT200, HT250
Disc material WCB,QT450-10, HT200, HT250
Seal ring PTFE
Actuator material Casting aluminum alloy
Design specification GB/T 12238 / API 609 / MSS SP-67
Applicable medium Vitriol,acid, chlorine, alkali, aqua regia and other strong corrosive media

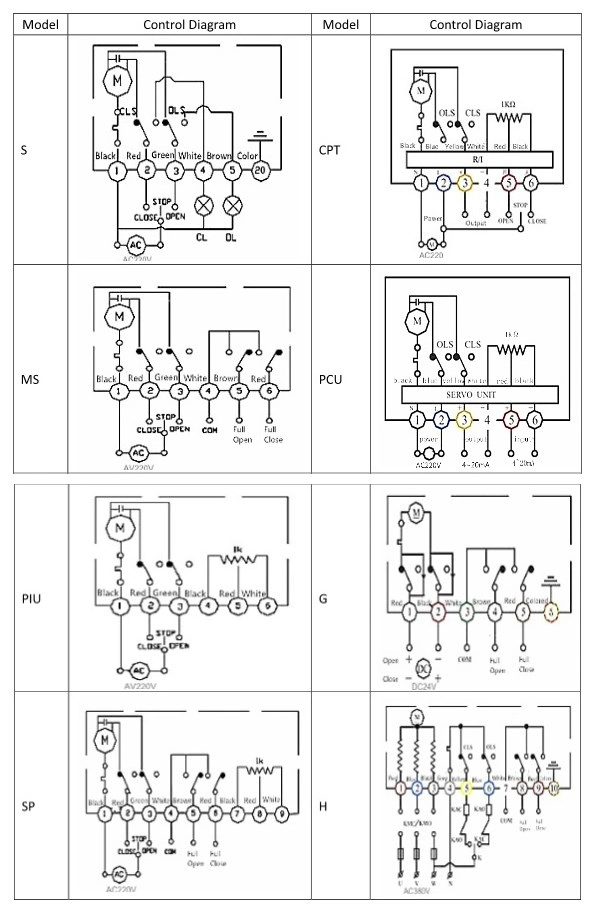

Control Diagram


Fluorine Electric Butterfly Valve with Normal Temperature



Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
