Sanitary Stainless Steel Clamp Butterfly Valve DN50 - 1200 With Multi Position Actuator

Name: Sanitary Stainless Steel Clamp Butterfly Valve DN50 - 1200 With Multi Position Actuator
Brand: Wuhan Grat Control Valve Co., Ltd.
SKU: EB-000029
Price: 10.00 USD
Availability: InStock

Product Details

Place of Origin: Wuhan, Hubei, China

Brand Name: Grat

Certification: IP67,CCC, ISO, CE、CNAS

Model Number: EB-000029

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: USD $10.00/ Piece

Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case

Delivery Time: 3 working days

Payment Terms: L/C, T/T, D/P, PayPal, Western Union

Supply Ability: 1000PCS/Week

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Stainless Steel Clamp Butterfly Valve, Sanitary Clamp Butterfly Valve DN50, Sanitary Stainless Steel Butterfly Valve DN1200


Brand Name:	GRAT	Minimum Order Quantity:	1 Pc
Place Of Origin:	Wuhan, Hubei, China	Delivery Time:	3 Working Days
Packaging Details:	Carton/Wooden Box	Payment Terms:	LC, T/T, D/P, PayPal, Western Union
Media:	Water	Driving Mode:	Electric
Connection Form:	Clamp	Structure:	Centre Sealing
Seal Form:	Auto Sealed	Valve Stem:	Normal
Working Temperature:	Medium Temperature (120°C	Valve Body:	Casting
Application:	Industrial Usage, Water Industrial Usage, Food, Lubrication, Fibrous Fluid, Water, Oil, Gas.	Medium:	Water, Oil, Gas
Work Pressure:	Mid-Pressure (2.5mpa< Pn <6.4mpa)	Material Of Seal Surface:	Soft Sealed
Standard:	ASME	Size:	Dn50-1200
HS Code:	8481804090

Brand Name:	GRAT
Minimum Order Quantity:	1 Pc
Place Of Origin:	Wuhan, Hubei, China
Delivery Time:	3 Working Days
Packaging Details:	Carton/Wooden Box
Payment Terms:	LC, T/T, D/P, PayPal, Western Union
Media:	Water
Driving Mode:	Electric
Connection Form:	Clamp
Structure:	Centre Sealing
Seal Form:	Auto Sealed
Valve Stem:	Normal
Working Temperature:	Medium Temperature (120°C
Valve Body:	Casting
Application:	Industrial Usage, Water Industrial Usage, Food, Lubrication, Fibrous Fluid, Water, Oil, Gas.
Medium:	Water, Oil, Gas
Work Pressure:	Mid-Pressure (2.5mpa< Pn <6.4mpa)
Material Of Seal Surface:	Soft Sealed
Standard:	ASME
Size:	Dn50-1200
HS Code:	8481804090

Product Description

Sanitary Stainless Steel Clamp Butterfly Valve with Multi-Position Actuator

Product Description:

Sanitary Stainless Steel Clamp Butterfly Valve with Multi-Position Actuator/IP67/Metal Hard Sealed

Description:

Grat electric butterfly valves have the structure of 3D eccentric metal sealed, whose seal mode is

metal-to-metal, also can be changed into the other seal modes such as the metal seal ring to

the metal, and the stainless steel plate seal ring or the graphite composite plate seal ring to the metal.

This 3D eccentric metal seal butterfly valve with high performance is a device to regulate and cut off

the medium of those piping in petroleum, chemical, power, metallurgy and city heat supply system.

Specification:

Body ratings	PN1.0/PN1.6Mpa/PN2.5Mpa
Valve size	DN50-DN1200
Seal material	Alloy metal seal
Stem seal	NBR, HNBR, PTFE, GRAPHITE
Body material	WCB/SUS304/SUS316L/CF8/CF8L Stainless Steel
Disc material	WCB/SUS304/SUS316L/CF8/CF8L Stainless Steel
Body connections	Wafer/flange
Power supply	AC220V
Control signal	4~20mA 0~5V
Output signal	4~20mA 0~5V
Operating pressure	PN1.6Mpa, PN2.5Mpa
Medium temperature	Below 540 Celesius degree

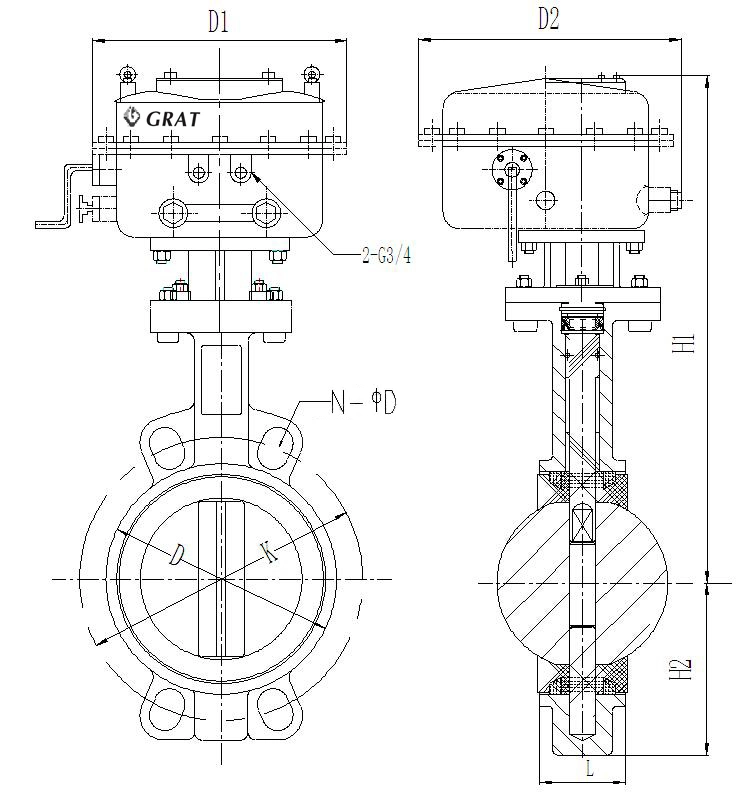

Installation Diagram

Sanitary Stainless Steel Clamp Butterfly Valve DN50 - 1200 With Multi Position Actuator 1

The material for main parts

Item	Part name	Material
1	Body	Carbon steel,CF8 Stainless steel,CF8M Stainless steel,CF3M Stainless steel
2	Disc	Carbon steel,CF8 Stainless steel,Cram Stainless steel,CF3M Stainless steel
3	Rotatable shaft	2Cr13,304 Stainless steel,316 Stainless steel,316L Stainless steel
4	Disc seal ring	all kinds of stainless steel composite
5	Shaft sleeve	ZCuZn38Mn2Pb2,stainless steel composite, PTFE
6	Packing	Grafoil

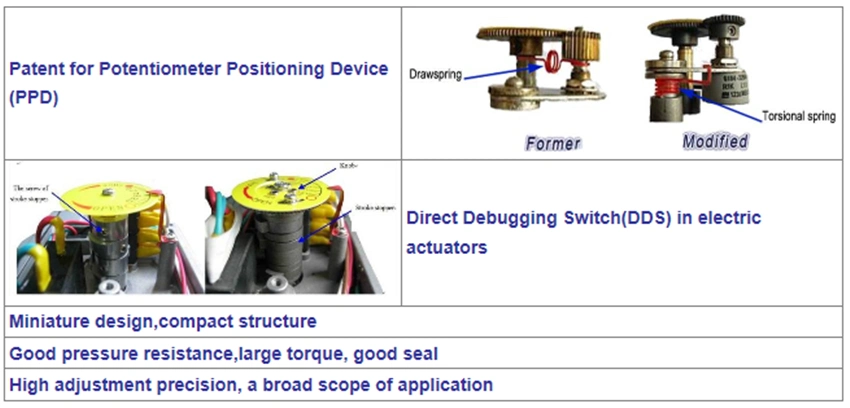

Control Diagram

Sanitary Stainless Steel Clamp Butterfly Valve DN50 - 1200 With Multi Position Actuator 2

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
