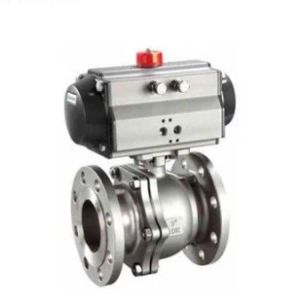

Stainless Steel Flange End Vacuum Ball Valve with Pneumatic Actuator
Product Description:
Stainless Steel Flange End Vacuum Ball Valve with Pneumatic Actuator/IP67/Fixed Ball Valve
Description:

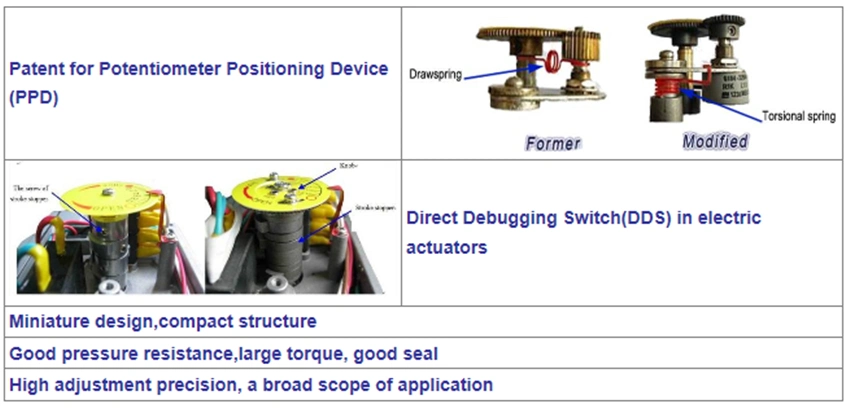

Specification:
| Power supply | AC220V |
| Body size | DN15-250 |
| Medium Temp | -80°C~160°C(no congelation.) |
| Operating pressure | PN1.0~2.5(MPa) |
| Action mode | 4-20mA Signal input feedback, 0-90° gyration |
| Action time | 4~30S |
| Body connections | Flange |
| Body material | WCB, ZG1CrM0, ZG1Cr18Ni9Ti |
| Sealed material | PTFE |
| Actuator material | Casting aluminum alloy |
| Applicable medium | Acid, alkali, salt, chlorine gas, steam, source water, mine pulp and paper pulp, aqua regia, oxidant, reducing agent, corrosive chemical liquid. |

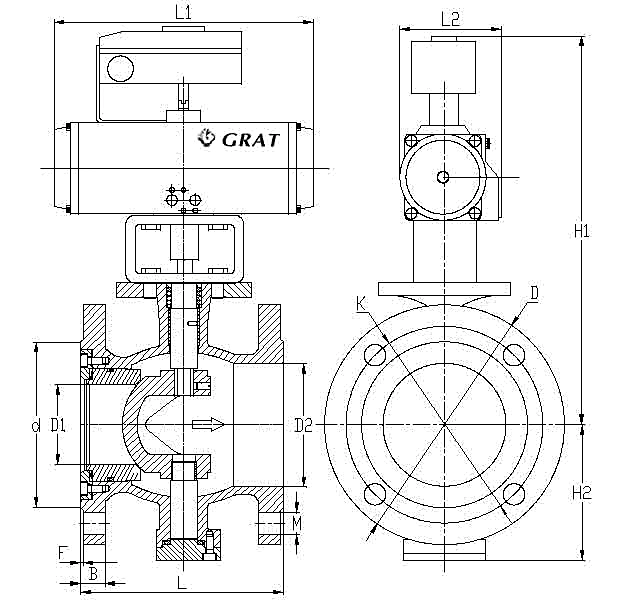

Installation size figure
| DN (mm) |
D | D1 | D2 | d | K | M | L | B | F | H1 | H2 | L1 | L2 | Weight kg |
| 15 | 95 | 15 | 28 | 45 | 65 | 4XΦ14 | 102 | 14 | 2 | 525 | 55 | 170 | 83 | |
| 20 | 105 | 15 | 28 | 55 | 75 | 4XΦ14 | 102 | 14 | 2 | 535 | 60 | 186 | 95 | |
| 25 | 115 | 20 | 40 | 66 | 85 | 4XΦ14 | 102 | 14 | 2 | 535 | 65 | 186 | 95 | |
| 32 | 135 | 25 | 46 | 78 | 100 | 4XΦ18 | 114 | 16 | 2 | 545 | 75 | 206 | 103 | |
| 40 | 145 | 32 | 54 | 85 | 110 | 4XΦ18 | 114 | 16 | 2 | 555 | 80 | 262 | 103 | |
| 50 | 160 | 40 | 65 | 100 | 125 | 4XΦ18 | 124 | 16 | 2 | 565 | 90 | 270 | 109 | |
| 65 | 180 | 50 | 80 | 120 | 145 | 4XΦ18 | 145 | 18 | 2 | 580 | 100 | 301 | 122 | |
| 80 | 195 | 65 | 100 | 135 | 160 | 8XΦ18 | 165 | 20 | 2 | 600 | 110 | 392 | 142 | |
| 100 | 215 | 80 | 110 | 155 | 180 | 8XΦ18 | 194 | 20 | 2 | 650 | 120 | 460 | 152 | |
| 125 | 245 | 100 | 135 | 185 | 210 | 8XΦ18 | 210 | 22 | 3 | 700 | 135 | 515 | 174 | |
| 150 | 280 | 125 | 165 | 210 | 240 | 8XΦ23 | 229 | 24 | 3 | 750 | 150 | 560 | 205 | |
| 200 | 335 | 160 | 205 | 265 | 295 | 12XΦ23 | 243 | 26 | 3 | 800 | 180 | 654 | 226 | |
| 250 | 405 | 210 | 260 | 320 | 355 | 12XΦ26 | 297 | 30 | 3 | 850 | 210 | 654 | 260 | |
| 300 | 460 | 250 | 322 | 375 | 410 | 12XΦ26 | 340 | 30 | 3 | 950 | 240 | 725 | 294 | |
| 350 | 520 | 300 | 365 | 435 | 470 | 16XΦ26 | 422 | 34 | 3 | 1000 | 270 | 742 | 380 |
The material of the main parts
| Part name | Body | Bonnet | Stuffing box | Gland ring | Seat | Packing | Spanner |
|
Material trademark |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
WCB 40Cr ZG 1Cr18Ni9Ti |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
FEP | FEP | WCB |
Applicable leading medium
| Medium state | Medium Temp. | Medium pressure | Medium characteristics | Medium concentration | Medium name |
| Liquid | -80ºC~+160ºC | 0~20kg/cm2 | Strong corrosion, high scour sharpen | unlimited | Acid, alkali, salt, chlorine, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reducing agent. |
| Gas | -80ºC~+160ºC | 0~20kg/cm2 | Strong corrosion, high scour sharpen | unlimited | |
| Mixture of liquid and solid | -80ºC~+160ºC | 0~20kg/cm2 | Strong corrosion, high scour sharpen | <60% |

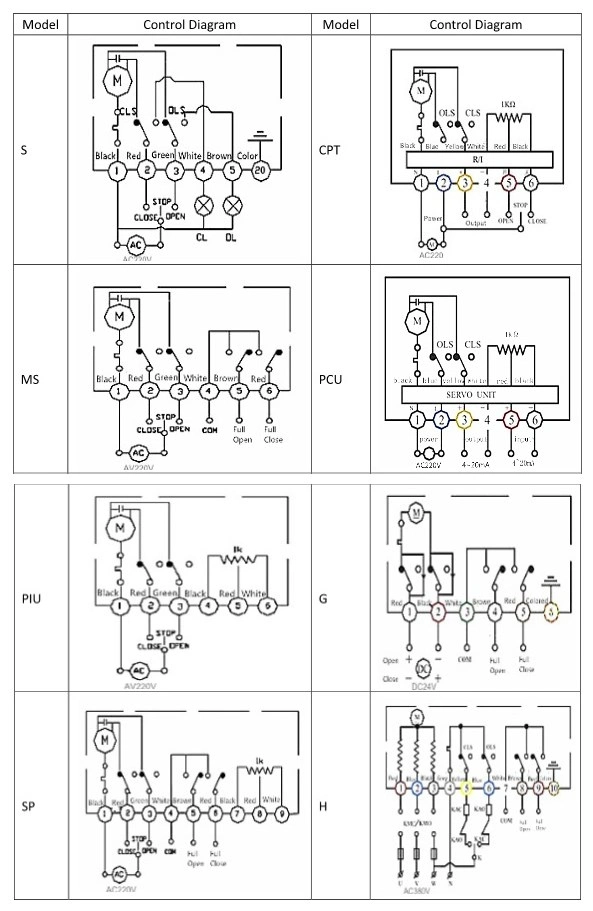

Control Diagram
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
| PIU | ON/OFF,output 0~1000Ω signal | G | ON/OFF,output passive contact signal |
| SP | ON/OFF,middle position control | H | ON/OFF,output passive contact signa |
