Wuhan Grat Control Valve Co., Ltd. nukiz@grat.com.cn 86-027-6070-6977
Product Details
Place of Origin: Wuhan, Hubei, China
Brand Name: Grat
Certification: IP67,CCC, ISO, CE, TUV
Model Number: EV-00002
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD $150.00/ Piece
Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case
Delivery Time: 3 working days
Payment Terms: L/C, T/T, D/P, PayPal, Western Union
Supply Ability: 1000PCS/Month
Brand Name: |
GRAT |
Place Of Origin: |
Wuhan, Hubei, China |
Minimum Order Quantity: |
1 Pc |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Water |
Material: |
Stainless Steel |
Connection Form:: |
Flange |
Driving Mode: |
Electric |
Nominal Pressure: |
PN1.0-32.0MPa |
Channel: |
Straight Through Type |
Type: |
Fixed Ball Valve |
Standard: |
DIN |
Size: |
Dn15~250 |
Structure: |
Fixed Ball Valve |
Function: |
Bypass-Valve |
Application: |
Industrial Usage, Water Industrial Usage |
Medium: |
Mine Pulp, Coal Pulp, Paper Pulp, Water, Oil, Gas. |
HS Code: |
8481804090 |
Brand Name: |
GRAT |
Place Of Origin: |
Wuhan, Hubei, China |
Minimum Order Quantity: |
1 Pc |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Water |
Material: |
Stainless Steel |
Connection Form:: |
Flange |
Driving Mode: |
Electric |
Nominal Pressure: |
PN1.0-32.0MPa |
Channel: |
Straight Through Type |
Type: |
Fixed Ball Valve |
Standard: |
DIN |
Size: |
Dn15~250 |
Structure: |
Fixed Ball Valve |
Function: |
Bypass-Valve |
Application: |
Industrial Usage, Water Industrial Usage |
Medium: |
Mine Pulp, Coal Pulp, Paper Pulp, Water, Oil, Gas. |
HS Code: |
8481804090 |

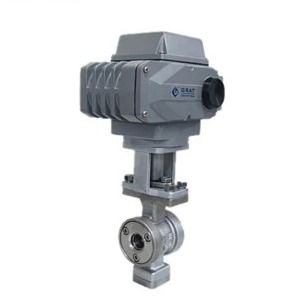

AC220V Tiny Flow Stainless Steel Electric Regulating Ball Valve
PRODUCT DESCRIPTION:
Tiny Flow Electric Regulating Ball Valve/ Stainless Steel / Fixed Ball Valve
Description:
Tiny flow control valve can control the operation by inputting control signal and single phase power to
satisfy various regulating needs for tiny flow in pressure, flow, temperature, and the level of liquid.
This valve is especially suitable for the various fields of tiny flow and high precision control.
specification:
Valve size | DN15-DN250 |
Body ratings | PN1.6MPa |
Body connections | Wafer,Flange |
Seat type | Stainless steel moveable metal seal,PTFE soft seal |
Action time | 30 S(0-90°) |
Power supply | AC220V |
Control signal | 4~20mA 0~5V |
Output signal | 4~20mA 0~5V |
Operating pressure | PN1.6Mpa PN2.5Mpa |
Medium Temp | ≤350°C |
Ambient Temp | ≤50°C |
Flow coefficient(CV): | Please download the data on our website for reference |
Applicable medium | Mine pulp, coal pulp, paper pulp, water, oil, gas |
Dead zone | 0.5% |
Repetition error | 0.5% |
Body material | SUS304 SUS316 WCB |

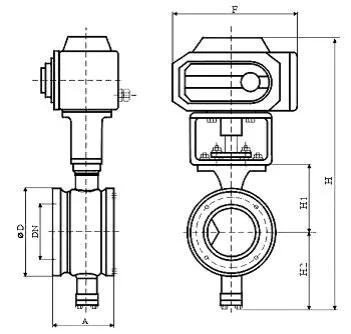

Figure and connection size
Valve size DN(mm) |
A |
φd |
H1 |
H2 |
H |
F |
15 | 62 | 54 | 74 | 75 | 390 | 210 |
20 | 62 | 54 | 74 | 75 | 390 | 210 |
25 | 62 | 54 | 74 | 75 | 390 | 210 |
32 | 62 | 78 | 80 | 75 | 400 | 210 |
40 | 62 | 82 | 85 | 75 | 405 | 210 |
50 | 75 | 100 | 87 | 95 | 430 | 210 |
65 | 80 | 120 | 105 | 115 | 460 | 210 |
80 | 100 | 131 | 115 | 125 | 520 | 270 |
100 | 115 | 158 | 125 | 125 | 530 | 270 |
125 | 130 | 180 | 140 | 155 | 570 | 270 |
150 | 160 | 216 | 153 | 165 | 600 | 270 |
200 | 200 | 260 | 200 | 195 | 680 | 270 |
250 | 240 | 325 | 225 | 225 | 730 | 270 |
Control Diagram
Model | Circuit | Model | Circuit |
S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
Packing & Shipping
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
