Stainless Steel Ce Certified Stainless Steel 3 Way Electric Actuated Ball Valve

Name: Stainless Steel Ce Certified Stainless Steel 3 Way Electric Actuated Ball Valve
Brand: Wuhan Grat Control Valve Co., Ltd.
SKU: EK-0000172
Price: 100.00 USD
Availability: InStock

Product Details

Place of Origin: Wuhan, Hubei, China

Brand Name: Grat

Certification: IP67,CCC, ISO, CE, TUV

Model Number: EK-0000172

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: USD $100.00/ Piece

Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case

Delivery Time: 3 working days

Payment Terms: L/C, T/T, D/P, PayPal, Western Union

Supply Ability: 1000PCS/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                3 Way Electric Actuated Ball Valve, Electric Actuated Ball Valve


Brand Name:	GRAT	Place Of Origin:	Wuhan, Hubei, China
Minimum Order Quantity:	1 Pc	Delivery Time:	3 Working Days
Packaging Details:	Carton/Wooden Box	Payment Terms:	LC, T/T, D/P, PayPal, Western Union
Media:	Water	Material:	Stainless Steel
Connection Form::	Thread	Driving Mode:	Electric
Nominal Pressure:	PN1.0-32.0MPa	Channel:	Straight Through Type
Type:	Fixed Ball Valve	Temperature:	Normal Temperature
Application:	Industrial Usage, Water Industrial Usage	Structure:	Fixed Ball Valve
Function:	Bypass-Valve	Size:	Dn15~300
HS Code:	8481804090

Brand Name:	GRAT
Place Of Origin:	Wuhan, Hubei, China
Minimum Order Quantity:	1 Pc
Delivery Time:	3 Working Days
Packaging Details:	Carton/Wooden Box
Payment Terms:	LC, T/T, D/P, PayPal, Western Union
Media:	Water
Material:	Stainless Steel
Connection Form::	Thread
Driving Mode:	Electric
Nominal Pressure:	PN1.0-32.0MPa
Channel:	Straight Through Type
Type:	Fixed Ball Valve
Temperature:	Normal Temperature
Application:	Industrial Usage, Water Industrial Usage
Structure:	Fixed Ball Valve
Function:	Bypass-Valve
Size:	Dn15~300
HS Code:	8481804090

Product Description

Stainless Steel Ce Certified Stainless Steel 3 Way Electric Actuated Ball Valve

PRODUCT DESCRIPTION:

Ce Certified Stainless Steel 3 Way Electric Actuated Ball Valve/ Stainless Steel / Fixed Ball Valve

Description:

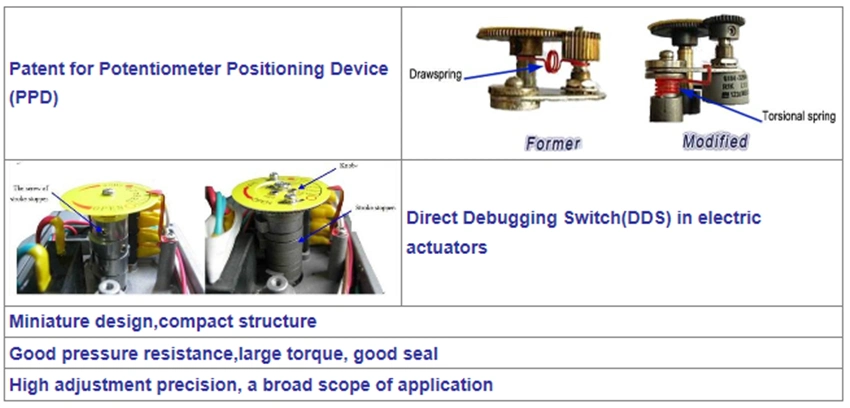

Stainless Steel Ce Certified Stainless Steel 3 Way Electric Actuated Ball Valve 0
Electric 3 way control valve is specially suitable for the small installation space to cover many services

of air conditioning system, fire-extinguishing system, water treatment system, pipeline purging,

analytical instruments, smoke sampling.

specification:

Power supply	AC24V,DC24V,AC110,AC220V,AC380V
Valve size	DN15~200
Medium Temp	0°C-95°C
Ambient Temp	-30°C~+60°C
Operating pressure	PN16
Action mode	Switch to cut off,0-90°gyration
Power consumption	8VA-30VA
Body connections	Inside thread
Body material	SUS304,SUS316
Seal material	PTFE,EPDM
Actuator material	Casting Aluminum alloy
Applicable working condition	Air-conditioning system, fire-extinguishing system, water treatment system, pipeline purging, analytical instruments, and smoke sampling
Installation mode	in any angle. (Prefer to horizontal or inclined installation to extend the service life.)

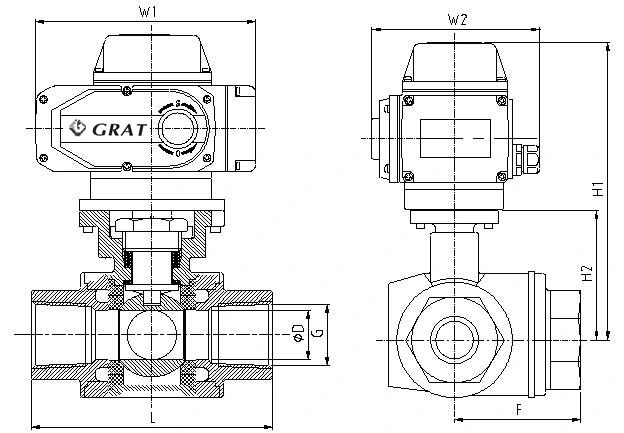

Figure and connection size

Stainless Steel Ce Certified Stainless Steel 3 Way Electric Actuated Ball Valve 1

Valve size		Dimension(mm)					Flange(mm)
mm	Inch	L	L0	L1	L2	H	D	D1	D2	C	F	n-φd
15	1/2	150	75	196/248	121/158	185/191	95	65	46	14	2	4-φ14
20	3/4	150	75	196/248	121/158	197/225	105	75	56	16	2	4-φ14
25	1	180	90	196/248	121/158	199/227	115	85	65	16	2	4-φ14
32	1 1/4	200	100	196/248	121/158	240/266	140	100	76	18	3	4-φ18
40	1 1/2	220	110	196/248	121/158	255/271	150	110	84	18	3	4-φ18
50	2	240	120	196/248	121/158	286/307	165	125	99	20	3	4-φ18
65	2 1/2	260	130	196/248	121/158	330/335	185	145	118	20	3	4-φ18
80	3	280	140	196/248	121/158	349/383	200	160	132	20	3	8-φ18
100	4	320	160	196/248	121/158	421/487	220	180	156	22	3	8-φ18
125	5	380	190	196/248	121/158	485/557	250	210	184	22	3	8-φ18
150	6	440	220	196/248	121/158	528/629	285	240	211	24	3	8-φ22
200	8	550	275	196/248	121/158	702/750	340	295	266	24	3	12-φ22

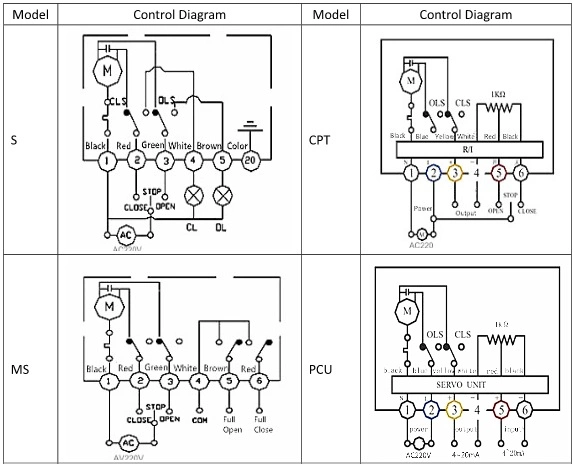

Control Diagram

Stainless Steel Ce Certified Stainless Steel 3 Way Electric Actuated Ball Valve 2

Model	Circuit	Model	Circuit
S	ON/OFF,no output signal	CPT	ON/OFF,output 4~20mA signal
MS	ON/OFF,output passive contact signal	PCU	Regulation,output 4~20mA signal

Packing & Shipping
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
