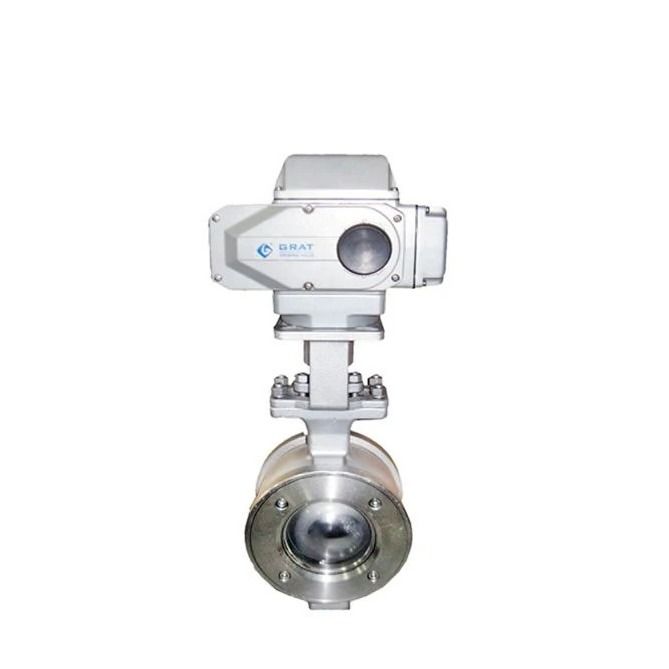

AC220V Stainless Steel Straight Through Type Electric Actuator Control Water Ball Valve
PRODUCT DESCRIPTION:
Electric Actuator Control Water Ball Valve/ Stainless Steel / Fixed Ball Valve
Description:
This electric control valve is a device to regulate and cut off the industrial medium flow with the high
requirement of abrasion resistance and self-cleaning in the absence of air supply.(mine pulp, paper pulp)
specification:
Valve size |
DN15-DN350((Please contact us for the detailed data of the larger diameter valve) |
Body rating |
PN1.6~6.4MPa, |
End connection |
Wafer,Flange |
Seal type |
Metal seat |
Action time |
15~120S(0-90°) |
Power supply |
AC220V,AC 380V, DC 24V |
Input signal |
4~20mA 0~5V |
Output signal |
4~20mA 0~5V |
Temp. |
≤350ºC |
Ambient temp. |
-30~60ºC |
Flow coefficient(CV): |
Please download the data on our website for reference.(Custom flow coefficient depends on the customer's requirement.) |
Applicable medium |
Mine pulp, coal pulp, paper pulp, water, oil, and gas. |
Dead zone |
0.5% |
Repeatability error |
0.5% |
Body material |
WCB, SS304, SS316, SS316L |
Seat material |
SS304, SS316, SS316L |
Trim material |
SS304, SS316, SS316L |
Manufacturing standard |
GB/T 122387-89 |
Flange standard |
GB9113-2000,GB17241.6-1998 |
Structure standard |
GB12221-89 |
Inspection standard |
GB/T 13927-92 |
Installation size figure
DN(mm) |
D1 |
D2 |
d |
K |
D |
M |
B |
F |
L |
H1 |
H2 |
W1 |
W2 |
Weight |
15 |
15 |
28 |
45 |
65 |
95 |
4-Φ14 |
14 |
2 |
102 |
290 |
55 |
196 |
145 |
|
20 |
15 |
28 |
55 |
75 |
105 |
4-Φ14 |
14 |
2 |
102 |
300 |
60 |
196 |
145 |
|
25 |
20 |
40 |
66 |
85 |
115 |
4-Φ14 |
14 |
2 |
102 |
310 |
65 |
196 |
145 |
|
32 |
25 |
46 |
78 |
100 |
135 |
4-Φ18 |
16 |
2 |
114 |
320 |
75 |
196 |
145 |
|
40 |
32 |
54 |
85 |
110 |
145 |
4-Φ18 |
16 |
2 |
114 |
330 |
80 |
196 |
145 |
|
50 |
40 |
65 |
100 |
125 |
160 |
4-Φ18 |
16 |
2 |
124 |
340 |
85 |
196 |
145 |
|
65 |
50 |
80 |
120 |
145 |
180 |
4-Φ18 |
18 |
2 |
145 |
350 |
100 |
196 |
145 |
|
80 |
65 |
100 |
135 |
160 |
195 |
8-Φ18 |
20 |
2 |
165 |
360 |
105 |
196 |
145 |
|
100 |
80 |
110 |
155 |
180 |
215 |
8-Φ18 |
20 |
2 |
194 |
420 |
115 |
196 |
145 |
|
125 |
100 |
135 |
185 |
210 |
245 |
8-Φ18 |
22 |
3 |
210 |
430 |
130 |
255 |
184 |
|
150 |
125 |
165 |
210 |
240 |
280 |
8-Φ23 |
24 |
3 |
229 |
450 |
150 |
255 |
184 |
|
200 |
160 |
205 |
265 |
295 |
335 |
12-Φ23 |
26 |
3 |
243 |
480 |
175 |
255 |
184 |
|
250 |
210 |
260 |
320 |
355 |
405 |
12-Φ26 |
30 |
3 |
297 |
520 |
220 |
255 |
184 |
|
300 |
250 |
322 |
375 |
410 |
460 |
12-Φ26 |
30 |
3 |
340 |
600 |
250 |
255 |
184 |
|
350 |
300 |
365 |
435 |
470 |
520 |
16-Φ26 |
34 |
3 |
422 |
630 |
280 |
255 |
184 |
Control Diagram
Model | Circuit | Model | Circuit |
S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
PIU | ON/OFF,output 0~1000Ω signal | G | ON/OFF,output passive contact signal |
SP | ON/OFF,middle position control | H | ON/OFF,output passive contact signa |
Packing & Shipping
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
