Product Details
Place of Origin: Wuhan, Hubei, China
Brand Name: Grat
Certification: IP67,CCC, ISO, CE, TUV
Model Number: EV-000029
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD $100.00-200.00/ Piece
Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case
Delivery Time: 3 working days
Payment Terms: L/C, T/T, D/P, PayPal, Western Union
Supply Ability: 1000PCS/Month
Brand Name: |
GRAT |
Place Of Origin: |
Wuhan, Hubei, China |
Minimum Order Quantity: |
1 Pc |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Water |
Material: |
Stainless Steel |
Connection Form:: |
Wafer/Flange |
Driving Mode: |
Electric |
Nominal Pressure: |
PN1.0-32.0MPa |
Channel: |
Straight Through Type |
Type: |
Fixed Ball Valve |
Temperature: |
Medium Temperature |
Application: |
Industrial Usage, Water Industrial Usage |
Output Signal: |
4-20mA |
Structure: |
Fixed Ball Valve |
Function: |
Bypass-Valve |
Standard: |
DIN |
Size: |
Dn15~300 |
HS Code: |
8481804090 |
Brand Name: |
GRAT |
Place Of Origin: |
Wuhan, Hubei, China |
Minimum Order Quantity: |
1 Pc |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Water |
Material: |
Stainless Steel |
Connection Form:: |
Wafer/Flange |
Driving Mode: |
Electric |
Nominal Pressure: |
PN1.0-32.0MPa |
Channel: |
Straight Through Type |
Type: |
Fixed Ball Valve |
Temperature: |
Medium Temperature |
Application: |
Industrial Usage, Water Industrial Usage |
Output Signal: |
4-20mA |
Structure: |
Fixed Ball Valve |
Function: |
Bypass-Valve |
Standard: |
DIN |
Size: |
Dn15~300 |
HS Code: |
8481804090 |

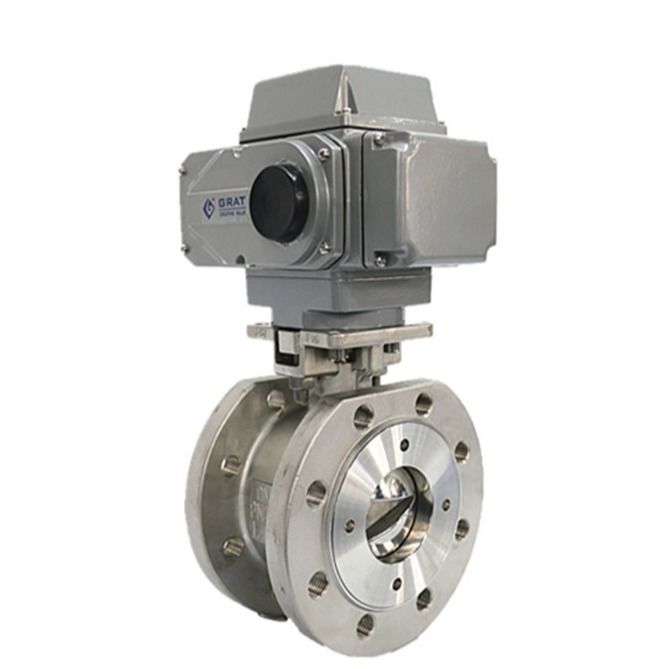

250 Degree Temperature Steam Metal Seat Ball Valve with Electric Moterized Actuator
PRODUCT DESCRIPTION:
250 Degree Temperature Steam Metal Seat Ball Valve with Electric Moterized Actuator/ Stainless Steel / Fixed Ball Valve
Description:
With high temperature resistance, corrosion resistance and high control precision, EV series electric flow control valve
specially is best suited to the situation of no air supply, all kinds of mediums with self-cleaning and abrasion resistance
such as mine pulp and paper pulp, which meets technical parameters by regulating and controlling the flow in various
special technologic areas.
Features:
specification:
| Body size | DN15-DN250 |
| Body ratings | PN1.6MPa |
| Body connections | Wafer, flange |
| Seat type | metal seal,Soft seal |
| Body material | SUS304 SUS316 WCB |
| Plug material | SUS304 SUS316 WCB |
| Action time | 30S(0-90°) |
| Power supply | AC220V |
| Control signal | 4~20mA 0~5V |
| Output signal | 4~20mA 0~5V |
| Operating pressure | PN1.6Mpa PN2.5Mpa |
| Medium Temp | ≤350ºC |
| Ambient Temp | ≤50ºC |
| Flow coefficient | Custom flow coefficient depends on the customer's requirement |
| Applicable medium | mine pulp, coal pulp, paper pulp, water, oil, gas. |
| Dear zone | 0.5% |
| Repeatability error | 0.5% |

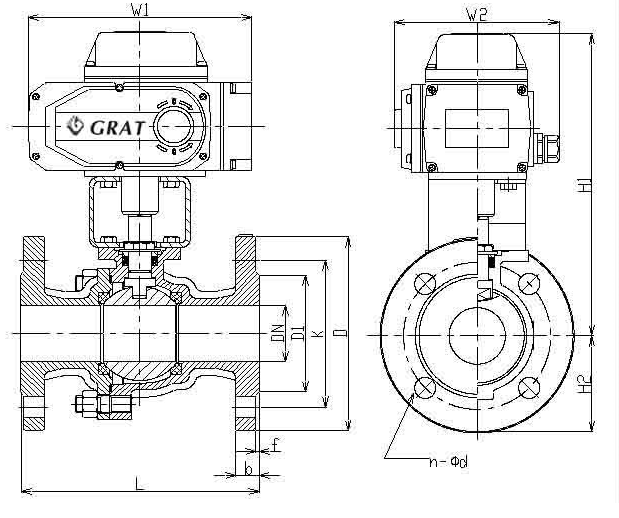

| (DN) | L | D | K | D1 | n-Φd | b | f | H1 | H2 | W1 | W2 |
| 15 | 130 | 95 | 65 | 46 | 4-Φ14 | 14 | 2 | 250 | 50 | 196 | 145 |
| 20 | 140 | 105 | 75 | 56 | 4-Φ14 | 16 | 2 | 255 | 55 | 196 | 145 |
| 25 | 150 | 115 | 85 | 65 | 4-Φ14 | 16 | 2 | 260 | 60 | 196 | 145 |
| 32 | 165 | 135 | 100 | 76 | 4-Φ18 | 18 | 3 | 270 | 70 | 196 | 145 |
| 40 | 180 | 145 | 110 | 84 | 4-Φ18 | 18 | 3 | 275 | 75 | 196 | 145 |
| 50 | 200 | 160 | 125 | 99 | 4-Φ18 | 20 | 3 | 285 | 85 | 196 | 145 |
| 65 | 220 | 180 | 145 | 118 | 4-Φ18 | 20 | 3 | 350 | 95 | 255 | 184 |
| 80 | 250 | 195 | 160 | 132 | 8-Φ18 | 20 | 3 | 360 | 100 | 255 | 184 |
| 100 | 280 | 215 | 180 | 156 | 8-Φ18 | 22 | 3 | 370 | 110 | 255 | 184 |
| 125 | 320 | 245 | 210 | 184 | 8-Φ18 | 22 | 3 | 380 | 125 | 255 | 184 |
| 150 | 360 | 280 | 240 | 211 | 8-Φ22 | 24 | 3 | 390 | 140 | 255 | 184 |
| 200 | 400 | 335 | 295 | 266 | 12-Φ22 | 24 | 3 | 420 | 170 | 255 | 184 |
Packing & Shipping
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
