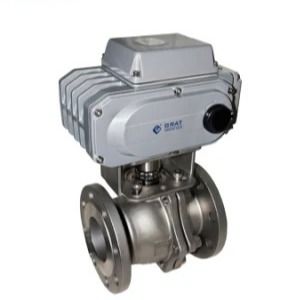

Pn64 High Pressure Trunnion Mounted Electric Quick Action Ball Valve
PRODUCT DESCRIPTION:
Pn64 High Pressure Trunnion Mounted Electric Quick Action Ball Valve/ Stainless Steel / Fixed Ball Valve
Description:
With high temperature resistance, corrosion resistance and high control precision, EV series electric flow control valve
specially is best suited to the situation of no air supply, all kinds of mediums with self-cleaning and abrasion resistance
such as mine pulp and paper pulp, which meets technical parameters by regulating and controlling the flow in various
special technologic areas.
Features:
* Design for high temperature resistance
* The patent positioning technology
* High precision, Small gyration error
* Allowing a large pressure drops
* The valve owns a self-cleaning function to effectively guarantee the piping circulating
* Good seal performance
* Erosion resistance, design for free maintenance
specification:
| Body size | DN15-DN250 |
| Body ratings | PN1.6MPa |
| Body connections | Wafer, flange |
| Seat type | metal seal,Soft seal |
| Body material | SUS304 SUS316 WCB |
| Plug material | SUS304 SUS316 WCB |
| Action time | 30S(0-90°) |
| Power supply | AC220V |
| Control signal | 4~20mA 0~5V |
| Output signal | 4~20mA 0~5V |
| Operating pressure | PN1.6Mpa PN2.5Mpa |
| Medium Temp | ≤350ºC |
| Ambient Temp | ≤50ºC |
| Flow coefficient | Custom flow coefficient depends on the customer's requirement |
| Applicable medium | mine pulp, coal pulp, paper pulp, water, oil, gas. |
| Dear zone | 0.5% |
| Repeatability error | 0.5% |
| (DN) | L | D | K | D1 | n-Φd | b | f | H1 | H2 | W1 | W2 |
| 15 | 130 | 95 | 65 | 46 | 4-Φ14 | 14 | 2 | 250 | 50 | 196 | 145 |
| 20 | 140 | 105 | 75 | 56 | 4-Φ14 | 16 | 2 | 255 | 55 | 196 | 145 |
| 25 | 150 | 115 | 85 | 65 | 4-Φ14 | 16 | 2 | 260 | 60 | 196 | 145 |
| 32 | 165 | 135 | 100 | 76 | 4-Φ18 | 18 | 3 | 270 | 70 | 196 | 145 |
| 40 | 180 | 145 | 110 | 84 | 4-Φ18 | 18 | 3 | 275 | 75 | 196 | 145 |
| 50 | 200 | 160 | 125 | 99 | 4-Φ18 | 20 | 3 | 285 | 85 | 196 | 145 |
| 65 | 220 | 180 | 145 | 118 | 4-Φ18 | 20 | 3 | 350 | 95 | 255 | 184 |
| 80 | 250 | 195 | 160 | 132 | 8-Φ18 | 20 | 3 | 360 | 100 | 255 | 184 |
| 100 | 280 | 215 | 180 | 156 | 8-Φ18 | 22 | 3 | 370 | 110 | 255 | 184 |
| 125 | 320 | 245 | 210 | 184 | 8-Φ18 | 22 | 3 | 380 | 125 | 255 | 184 |
| 150 | 360 | 280 | 240 | 211 | 8-Φ22 | 24 | 3 | 390 | 140 | 255 | 184 |
| 200 | 400 | 335 | 295 | 266 | 12-Φ22 | 24 | 3 | 420 | 170 | 255 | 184 |
Packing & Shipping
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
