CE IP67 Normal Temperature Electric PVC Ball Valve DC24V Straight Through Type
CE IP67 Straight Through Type Normal Temperature DC24V Electric PVC Ball Valve Product Description: DC24V Electric PVC Ball Valve/ IP67 /Fixed Ball Valve Description: PVC union ball valve has strong corrosion resistance because of its UPVC body to besuitable for acid, alkali and chemical solution. ...
IP67 Electric PVC Ball Valve
,Electric PVC Ball Valve DC24V
CE IP67 Straight Through Type Normal Temperature DC24V Electric PVC Ball Valve
Product Description:
DC24V Electric PVC Ball Valve/ IP67 /Fixed Ball Valve
PVC union ball valve has strong corrosion resistance because of its UPVC body to besuitable for
acid, alkali and chemical solution.
Light weight and anti-corrosive make this valve apply in pure water and raw drinking water, drainage
and sewage, salt water and sea water.
Specification:
| Power supply | AC220V ,AC24V |
| Valve size | DN10-100 |
| Medium Temp | -15°C~ 60°C(no congelation) |
| Ambient Temp | -25°C~ 55°C |
| Operating pressure | PN16 |
| Action mode | Switch to cut off,0 ~ 90°gyration |
| Action time | 4 ~ 30S |
| Protector | Overheat protection |
| Power consumption | 8VA ~ 30VA |
| Body connections | Flange, inside thread |
| Body material | UPVC |
| Seal material | PTFE,EPDM |
| Actuator material | Casting aluminum alloy, plastic shell |
| Applicable medium | Water, air, oil, and corrosive chemical liquid |
| Protection level | IP67 |
| Installation mode | Install it in any angle. (Prefer to horizontal or inclined installation to extend the service life) |

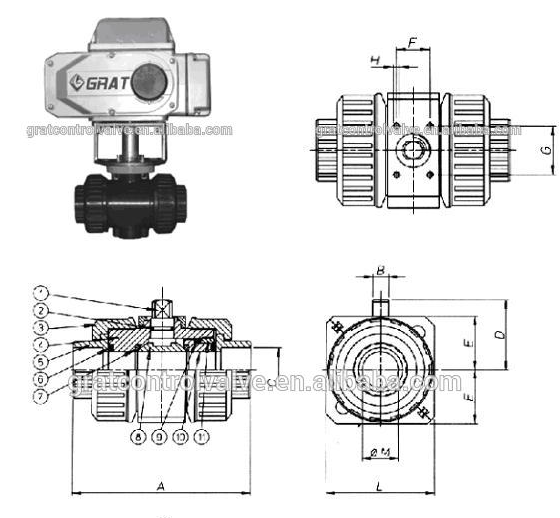

Figure and connection size
|
Size |
||||||||||||
Thread(G) |
A |
A Adhesive interface |
B |
C Thread connection |
C Adhesive interface
|
D |
E |
F |
G |
H |
L |
φM |
|
3/8″ |
103 |
103 |
8.3 |
3/8″ |
16 |
36 |
31.5 |
24 |
24 |
M4 |
63 |
10 |
|
1/2″ |
110 |
103 |
8.3 |
1/2″ |
20 |
36 |
31.5 |
24 |
24 |
M4 |
63 |
15 |
|
3/4″ |
116 |
115 |
11 |
3/4″ |
25 |
43.5 |
36.5 |
25 |
31 |
M4 |
73 |
20 |
|
1″ |
133 |
128 |
12.1 |
1″ |
32 |
51 |
45 |
27 |
40 |
M5 |
90 |
25 |
|
1″1/4 |
145 |
146 |
14.5 |
1″1/4 |
40 |
59 |
52 |
32 |
41 |
M5 |
104 |
32 |
|
1″1/2 |
165 |
164 |
15.5 |
1″1/2 |
50 |
68 |
56 |
28 |
53 |
M6 |
112 |
40 |
|
2″ |
199 |
199 |
19 |
2″ |
63 |
82 |
67.5 |
34 |
58 |
M6 |
135 |
50 |
|
2″1/2 |
236 |
235 |
23.2 |
2″1/2 |
75 |
115 |
79 |
45 |
84 |
M6 |
105 |
65 |
|
3″ |
270 |
270 |
28.3 |
3″ |
90 |
138.5 |
100 |
55 |
102 |
M8 |
126 |
80 |
|
4″ |
309 |
308 |
28.6 |
4″ |
110 |
162.5 |
115 |
50 |
122 |
M8 |
147 |
100 |
The material for main parts
|
Material |
|||
|
1. Shaft |
PVC |
7. Ball seal ring |
PTFE |
|
2. O-Ring |
EPDM |
8. Ball core |
PVC |
|
3. Ring nut |
PVC |
9. O-Ring |
EPDM |
|
4. Body |
PVC |
10. Plug seal bracket |
PVC |
|
5. The end |
PVC |
11. Ring |
PVC |
|
6. O-Ring |
EPDM |
|
|

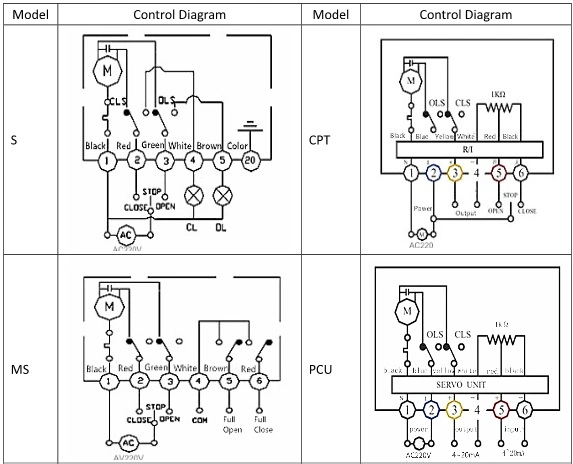

Control Diagram
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
