Stainless Steel Fixed Ball Valve 2 Way 3 PC Ss Mini Electric Ball Valve
Product Description:
2 Way 3 PC Ss Mini Electric Ball Valve/IP67/Fixed Ball Valve
Description:
Electric screw ball valve lock covers the services of large pressure drops and easy blocking to quickly switch
and cut off the medium of pipeline, whose superior product performance and cost-effective far exceeds the
competitive products of solenoid valve.
Specification:
| Power supply | AC220V 50/60HZ |
| Body ratings | DN15-100 |
| Medium Temp | ≤220°C |
| Ambient Temp | ≤50°C |
| Operating pressure | PN16, PN25, PN40 |
| Action mode | Switch to cut off |
| Body connections | Flange type, connecting thread |
| Body material | Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB |
| Plug material | Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB |
| Leakage | Compliance with the standards ANSIB16.104 5 |
| Seal type | Two-sided sphere seal |
| Applicable medium | Water, oil, gas |
| Protection level | IP67 |
| Dead zone | 0.5% |
| Repeatability error | 0.5% |
| Manufacturing standards | JB/T8692-1998 |

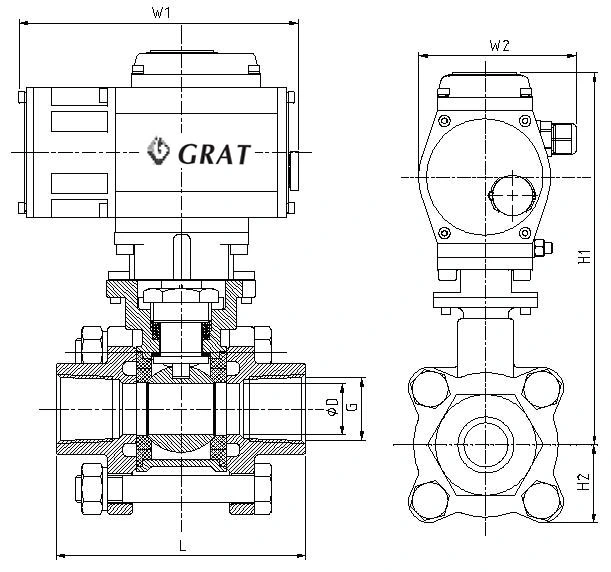

Installation size drawing
Control Diagram
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
| PIU | ON/OFF,output 0~1000Ω signal | G | ON/OFF,output passive contact signal |
| SP | ON/OFF,middle position control | H | ON/OFF,output passive contact sign |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
