Product Details
Place of Origin: Wuhan, Hubei, China
Brand Name: Grat
Certification: IP67,CCC, ISO, CE,CNAS
Model Number: EDN15-250
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD $150.00-170.00/ Piece
Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case
Delivery Time: 3 working days
Payment Terms: L/C, T/T, D/P, PayPal, Western Union
Supply Ability: 1000PCS/Week
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Place Of Origin: |
Wuhan, Hubei, China |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Water |
Material: |
Stainless Steel |
Connection Form: |
Flange |
Driving Mode: |
Electric |
Nominal Pressure: |
PN1.0-32.0MPa |
Channel: |
Straight Through Type |
Type: |
V Type Ball Valve |
Temperature: |
Normal Temperature |
Application: |
Industrial Usage, Water Industrial Usage |
Valve Size: |
Dn15-200 |
Input Signal: |
4-20mA |
Control Signal: |
4-20mA 0-5V |
Seal Material: |
PTFE ,PPL, Metal Seal |
Operating Pressure: |
Pn16, Pn25 - Pn40 - Pn64 -Pn100 |
Structure: |
Flexible Ball Valve |
Function: |
Relief Valve |
Standard: |
DIN |
Body Material: |
A105\F304\F316\Wcb\Fzg1cr18ni9ti |
Applicable Medium: |
Water, Air, Oil, And Corrosive Chemical Liquid |
Body Connections: |
Wafer |
Body Ratings: |
Pn1.0/Pn1.6MPa/Pn2.5MPa |
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Place Of Origin: |
Wuhan, Hubei, China |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Water |
Material: |
Stainless Steel |
Connection Form: |
Flange |
Driving Mode: |
Electric |
Nominal Pressure: |
PN1.0-32.0MPa |
Channel: |
Straight Through Type |
Type: |
V Type Ball Valve |
Temperature: |
Normal Temperature |
Application: |
Industrial Usage, Water Industrial Usage |
Valve Size: |
Dn15-200 |
Input Signal: |
4-20mA |
Control Signal: |
4-20mA 0-5V |
Seal Material: |
PTFE ,PPL, Metal Seal |
Operating Pressure: |
Pn16, Pn25 - Pn40 - Pn64 -Pn100 |
Structure: |
Flexible Ball Valve |
Function: |
Relief Valve |
Standard: |
DIN |
Body Material: |
A105\F304\F316\Wcb\Fzg1cr18ni9ti |
Applicable Medium: |
Water, Air, Oil, And Corrosive Chemical Liquid |
Body Connections: |
Wafer |
Body Ratings: |
Pn1.0/Pn1.6MPa/Pn2.5MPa |

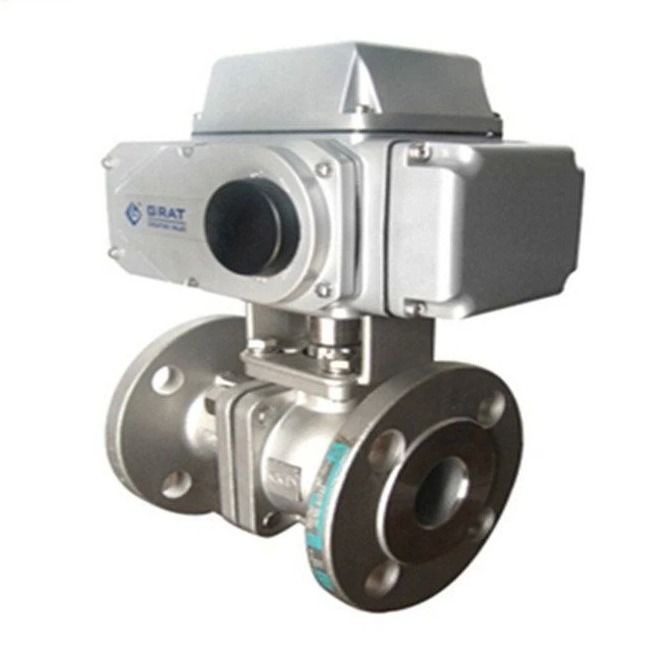

Stainless Steel Flange Connection Electrical Control Ball Valve
Product Description:
Stainless Steel Flange Connection Electrical Control Ball Valve/IP67/V Type Ball Valve
Description:
Specification:
| Power supply | AC220V |
| Body size | DN15-250 |
| Medium Temp | -80°C~160°C(no congelation.) |
| Operating pressure | PN1.0~2.5(MPa) |
| Action mode | 4-20mA Signal input feedback, 0-90° gyration |
| Action time | 4~30S |
| Body connections | Flange |
| Body material | WCB, ZG1CrM0, ZG1Cr18Ni9Ti |
| Sealed material | PTFE |
| Actuator material | Casting aluminum alloy |
| Applicable medium | Acid, alkali, salt, chlorine gas, steam, source water, mine pulp and paper pulp, aqua regia, oxidant, reducing agent, corrosive chemical liquid. |

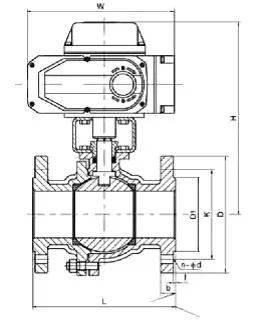

Installation size
|
Size MPa DN |
C |
D |
D1 |
D2 |
Z-d |
f |
b |
|
|
15 |
1.0 |
132 |
95 |
65 |
45 |
4-14 |
2 |
14 |
|
1.6 |
132 |
95 |
65 |
45 |
4-14 |
2 |
15 |
|
|
20 |
1.0 |
142 |
105 |
75 |
55 |
4-14 |
2 |
16 |
|
1.6 |
142 |
105 |
75 |
55 |
4-14 |
2 |
16 |
|
|
25 |
1.0 |
150 |
115 |
85 |
65 |
4-14 |
2 |
16 |
|
1.6 |
150 |
115 |
85 |
65 |
4-18 |
3 |
16 |
|
|
32 |
1.0 |
165 |
135 |
100 |
78 |
4-18 |
3 |
16 |
|
1.6 |
165 |
135 |
100 |
78 |
4-18 |
3 |
16 |
|
|
40 |
1.0 |
180 |
145 |
110 |
85 |
4-18 |
3 |
17 |
|
1.6 |
180 |
145 |
110 |
85 |
4-18 |
3 |
17 |
|
|
50 |
1.0 |
200 |
160 |
125 |
100 |
4-18 |
3 |
18 |
|
1.6 |
200 |
160 |
125 |
100 |
4-18 |
3 |
18 |
|
|
65 |
1.0 |
220 |
180 |
145 |
120 |
4-18 |
3 |
20 |
|
1.6 |
220 |
180 |
145 |
120 |
4-18 |
3 |
20 |
|
|
80 |
1.0 |
250 |
195 |
160 |
135 |
4-18 |
3 |
22 |
|
1.6 |
250 |
195 |
160 |
135 |
4-18 |
3 |
22 |
|
|
100 |
1.0 |
280 |
215 |
180 |
155 |
4-18 |
3 |
22 |
|
1.6 |
280 |
215 |
180 |
155 |
4-18 |
3 |
24 |
|
|
125 |
1.0 |
320 |
245 |
210 |
185 |
4-18 |
3 |
24 |
|
1.6 |
320 |
245 |
210 |
185 |
4-18 |
3 |
26 |
|
|
150 |
1.0 |
360 |
280 |
240 |
210 |
8-23 |
3 |
24 |
|
1.6 |
360 |
280 |
240 |
210 |
8-23 |
3 |
28 |
|
|
200 |
1.0 |
400 |
335 |
295 |
265 |
8-23 |
3 |
26 |
|
1.6 |
400 |
335 |
295 |
265 |
8-23 |
3 |
30 |
|
|
250 |
1.0 |
450 |
405 |
350 |
320 |
12-23 |
4 |
28 |
|
1.6 |
450 |
405 |
355 |
320 |
12-23 |
4 |
30 |
|
The material of the main parts
|
Part name |
Body |
Bonnet |
Stuffing box |
Gland ring |
Seat |
Packing |
Spanner |
|
Material trademark |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
WCB 40Cr ZG 1Cr18Ni9Ti |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
FEP |
FEP |
WCB |
Applicable leading medium
|
Medium state |
Medium Temp. |
Medium pressure |
Medium characteristics |
Medium concentration |
Medium name |
|
Liquid |
-80ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
unlimited |
Acid, alkali, salt, chlorine, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reducing agent. |
|
Gas |
-80ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
unlimited |
|
|
Mixture of liquid and solid |
-80ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
<60% |

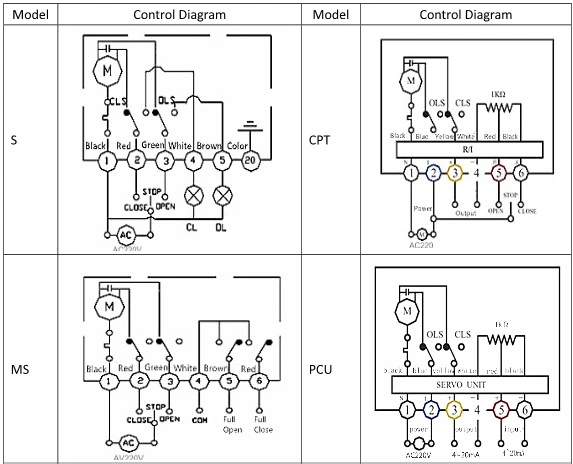

Control Diagram
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
