High Temperature Flange Connection WCB Short Type Electric Ball Valve
Product Description:
Flange Connection WCB Short Type Electric Ball Valve /IP67/Fixed Ball Valve
Description:
Specification:
Power supply | AC220V |
Body size | DN15-250 |
Medium Temp | -80°C~160°C(no congelation.) |
Operating pressure | PN1.0~2.5(MPa) |
Action mode | 4-20mA Signal input feedback, 0-90° gyration |
Action time | 4~30S |
Body connections | Flange |
Body material | WCB, ZG1CrM0, ZG1Cr18Ni9Ti |
Sealed material | PTFE |
Actuator material | Casting aluminum alloy |
Applicable medium | Acid, alkali, salt, chlorine gas, steam, source water, mine pulp and paper pulp, aqua regia, oxidant, reducing agent, corrosive chemical liquid. |
Installation size
Size MPa DN |
C |
D |
D1 |
D2 |
Z-d |
f |
b |
|
15 |
1.0 |
132 |
95 |
65 |
45 |
4-14 |
2 |
14 |
1.6 |
132 |
95 |
65 |
45 |
4-14 |
2 |
15 |
|
20 |
1.0 |
142 |
105 |
75 |
55 |
4-14 |
2 |
16 |
1.6 |
142 |
105 |
75 |
55 |
4-14 |
2 |
16 |
|
25 |
1.0 |
150 |
115 |
85 |
65 |
4-14 |
2 |
16 |
1.6 |
150 |
115 |
85 |
65 |
4-18 |
3 |
16 |
|
32 |
1.0 |
165 |
135 |
100 |
78 |
4-18 |
3 |
16 |
1.6 |
165 |
135 |
100 |
78 |
4-18 |
3 |
16 |
|
40 |
1.0 |
180 |
145 |
110 |
85 |
4-18 |
3 |
17 |
1.6 |
180 |
145 |
110 |
85 |
4-18 |
3 |
17 |
|
50 |
1.0 |
200 |
160 |
125 |
100 |
4-18 |
3 |
18 |
1.6 |
200 |
160 |
125 |
100 |
4-18 |
3 |
18 |
|
65 |
1.0 |
220 |
180 |
145 |
120 |
4-18 |
3 |
20 |
1.6 |
220 |
180 |
145 |
120 |
4-18 |
3 |
20 |
|
80 |
1.0 |
250 |
195 |
160 |
135 |
4-18 |
3 |
22 |
1.6 |
250 |
195 |
160 |
135 |
4-18 |
3 |
22 |
|
100 |
1.0 |
280 |
215 |
180 |
155 |
4-18 |
3 |
22 |
1.6 |
280 |
215 |
180 |
155 |
4-18 |
3 |
24 |
|
125 |
1.0 |
320 |
245 |
210 |
185 |
4-18 |
3 |
24 |
1.6 |
320 |
245 |
210 |
185 |
4-18 |
3 |
26 |
|
150 |
1.0 |
360 |
280 |
240 |
210 |
8-23 |
3 |
24 |
1.6 |
360 |
280 |
240 |
210 |
8-23 |
3 |
28 |
|
200 |
1.0 |
400 |
335 |
295 |
265 |
8-23 |
3 |
26 |
1.6 |
400 |
335 |
295 |
265 |
8-23 |
3 |
30 |
|
250 |
1.0 |
450 |
405 |
350 |
320 |
12-23 |
4 |
28 |
1.6 |
450 |
405 |
355 |
320 |
12-23 |
4 |
30 |
The material of the main parts
Part name |
Body |
Bonnet |
Stuffing box |
Gland ring |
Seat |
Packing |
Spanner |
Material trademark |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
WCB 40Cr ZG 1Cr18Ni9Ti |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
FEP |
FEP |
WCB |
Applicable leading medium
Medium state |
Medium Temp. |
Medium pressure |
Medium characteristics |
Medium concentration |
Medium name |
Liquid |
-80ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
unlimited |
Acid, alkali, salt, chlorine, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reducing agent. |
Gas |
-80ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
unlimited |
|
Mixture of liquid and solid |
-80ºC~+160ºC |
0~20kg/cm2 |
Strong corrosion, high scour sharpen |
<60% |

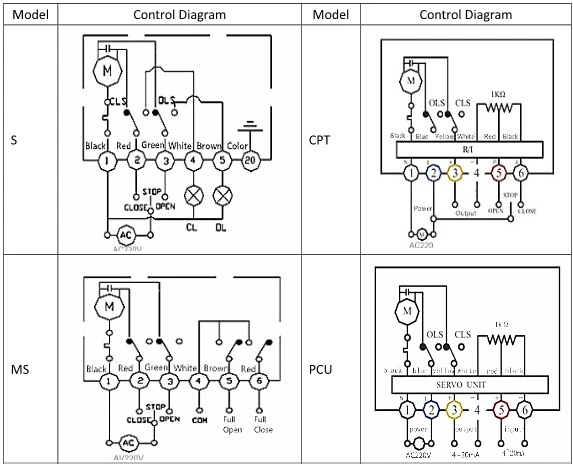

Control Diagram
Model | Circuit | Model | Circuit |
S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
