High Temperature Electric Actuated Ball Valve IP67 Thin Type Wafer Ball Valve

Product Details

Place of Origin: Wuhan, Hubei, China

Brand Name: Grat

Certification: IP67,CCC, ISO, CE,CNAS

Model Number: EK-0000175

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: USD $100.00/ Piece

Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case

Delivery Time: 3 working days

Payment Terms: L/C, T/T, D/P, PayPal, Western Union

Supply Ability: 1000PCS/Week

Get Best Price
Product Details
Highlight:

High Temperature Electric Actuated Ball Valve

,

Electric Actuated Ball Valve IP67

,

Thin Type Wafer Ball Valve

Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Place Of Origin:
Wuhan, Hubei, China
Delivery Time:
3 Working Days
Packaging Details:
Carton/Wooden Box
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Water
Material:
Stainless Steel
Connection Form:
Flange
Driving Mode:
Electric
Nominal Pressure:
PN1.0-32.0MPa
Channel:
Straight Through Type
Type:
Fixed Ball Valve
Temperature:
High Temperature
Application:
Industrial Usage, Water Industrial Usage
Size:
Dn15-250
Structure:
Fixed Ball Valve
Function:
Bypass-Valve
Standard:
CE,ISO,Sil,RoHS
HS Code:
8481804090
Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Place Of Origin:
Wuhan, Hubei, China
Delivery Time:
3 Working Days
Packaging Details:
Carton/Wooden Box
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Water
Material:
Stainless Steel
Connection Form:
Flange
Driving Mode:
Electric
Nominal Pressure:
PN1.0-32.0MPa
Channel:
Straight Through Type
Type:
Fixed Ball Valve
Temperature:
High Temperature
Application:
Industrial Usage, Water Industrial Usage
Size:
Dn15-250
Structure:
Fixed Ball Valve
Function:
Bypass-Valve
Standard:
CE,ISO,Sil,RoHS
HS Code:
8481804090
Product Description

High Temperature Flange Connection Electric Actuated Thin Type Wafer Ball Valve


Product Description:



Electric Actuated Thin Type Wafer Ball Valve /IP67/Fixed Ball Valve



Description:
Flange Connection Wcb Electric Regulating Ball Valve



Specification:



Power supply AC220V
Body size DN15-250
Medium Temp -80°C~160°C(no congelation.)
Operating pressure PN1.0~2.5(MPa)
Action mode 4-20mA Signal input feedback, 0-90° gyration
Action time 4~30S
Body connections Flange
Body material WCB, ZG1CrM0, ZG1Cr18Ni9Ti
Sealed material  PTFE
Actuator material Casting aluminum alloy
Applicable medium  Acid, alkali, salt, chlorine gas, steam, source water, mine pulp and paper pulp, aqua regia, oxidant, reducing agent, corrosive chemical liquid.


Installation size


Flange Connection Wcb Electric Regulating Ball Valve



Size

MPa

DN

C

D

D1

D2

Z-d

f

b

15

1.0

132

95

65

45

4-14

2

14

1.6

132

95

65

45

4-14

2

15

20

1.0

142

105

75

55

4-14

2

16

1.6

142

105

75

55

4-14

2

16

25

1.0

150

115

85

65

4-14

2

16

1.6

150

115

85

65

4-18

3

16

32

1.0

165

135

100

78

4-18

3

16

1.6

165

135

100

78

4-18

3

16

40

1.0

180

145

110

85

4-18

3

17

1.6

180

145

110

85

4-18

3

17

50

1.0

200

160

125

100

4-18

3

18

1.6

200

160

125

100

4-18

3

18

65

1.0

220

180

145

120

4-18

3

20

1.6

220

180

145

120

4-18

3

20

80

1.0

250

195

160

135

4-18

3

22

1.6

250

195

160

135

4-18

3

22

100

1.0

280

215

180

155

4-18

3

22

1.6

280

215

180

155

4-18

3

24

125

1.0

320

245

210

185

4-18

3

24

1.6

320

245

210

185

4-18

3

26

150

1.0

360

280

240

210

8-23

3

24

1.6

360

280

240

210

8-23

3

28

200

1.0

400

335

295

265

8-23

3

26

1.6

400

335

295

265

8-23

3

30

250

1.0

450

405

350

320

12-23

4

28

1.6

450

405

355

320

12-23

4

30


The material of the main parts



Part name

Body

Bonnet

Stuffing box

Gland ring

Seat

Packing

Spanner

Material

trademark

WCB

ZG1CrM0

ZG

1Cr18Ni9Ti

WCB

ZG1CrM0

ZG

1Cr18Ni9Ti

WCB

40Cr

ZG

1Cr18Ni9Ti

WCB

ZG1CrM0

ZG

1Cr18Ni9Ti

FEP

FEP

WCB



Applicable leading medium



Medium state

Medium Temp.

Medium pressure

Medium characteristics

Medium concentration

Medium name

Liquid

-80ºC~+160ºC

0~20kg/cm2

Strong corrosion, high scour  sharpen

unlimited

Acid, alkali, salt, chlorine, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reducing agent.

Gas

-80ºC~+160ºC

0~20kg/cm2

Strong corrosion, high scour  sharpen

unlimited

Mixture of liquid and solid

-80ºC~+160ºC

0~20kg/cm2

Strong corrosion, high scour  sharpen

<60%

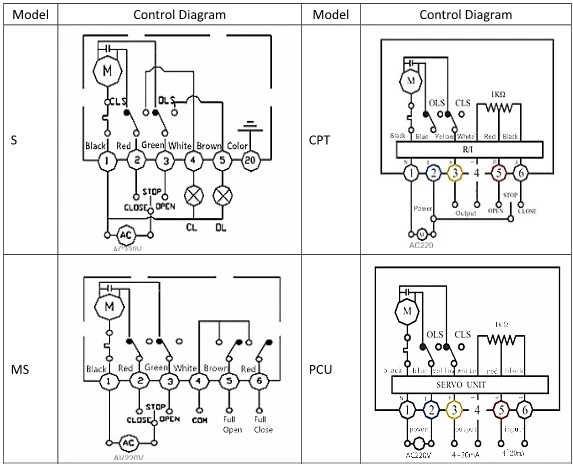

Control Diagram


DC24V Short Flange Electric Ball Valve



Model Circuit Model Circuit
S ON/OFF,no output signal CPT ON/OFF,output 4~20mA signal
MS ON/OFF,output passive contact signal PCU Regulation,output 4~20mA signal



Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
