Wuhan Grat Control Valve Co., Ltd. nukiz@grat.com.cn 86-027-6070-6977
Product Details
Place of Origin: Wuhan, Hubei, China
Brand Name: Grat
Certification: IP67,CCC, ISO, CE,CNAS
Model Number: EK-00001
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD $10.00/ Piece
Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case
Delivery Time: 3 working days
Payment Terms: L/C, T/T, D/P, PayPal, Western Union
Supply Ability: 1000PCS/Week
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Place Of Origin: |
Wuhan, Hubei, China |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Water |
Material: |
Stainless Steel |
Connection Form: |
Flange Type, Connecting Thread. |
Driving Mode: |
Electric |
Nominal Pressure: |
PN1.0-32.0MPa |
Channel: |
Straight Through Type |
Type: |
Fixed Ball Valve |
Temperature: |
Normal Temperature |
Application: |
Industrial Usage, Water Industrial Usage |
Specification: |
DN15~500 |
Structure: |
Fixed Ball Valve |
Function: |
Bypass-Valve |
Standard: |
DIN |
HS Code: |
8481804090 |
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Place Of Origin: |
Wuhan, Hubei, China |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Water |
Material: |
Stainless Steel |
Connection Form: |
Flange Type, Connecting Thread. |
Driving Mode: |
Electric |
Nominal Pressure: |
PN1.0-32.0MPa |
Channel: |
Straight Through Type |
Type: |
Fixed Ball Valve |
Temperature: |
Normal Temperature |
Application: |
Industrial Usage, Water Industrial Usage |
Specification: |
DN15~500 |
Structure: |
Fixed Ball Valve |
Function: |
Bypass-Valve |
Standard: |
DIN |
HS Code: |
8481804090 |

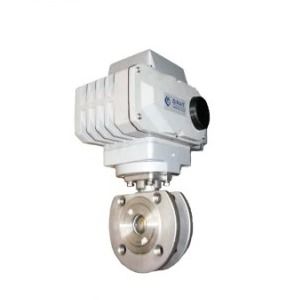

Normal Temperature Stainless Steel Flange Connection Electric Short Ball Valve
Product Description:
Flange Connection Electric Short Ball Valve /IP67/Fixed Ball Valve
Description:
Quick switch electric ball valve is widely used in the technical piping of large pressure drops and
easy blocking to quickly switch and cut off the medium of pipeline. This series can fully satisfy the
requirements to quickly switch and cut off the medium to realize the control over the technical
parameters of pressure, flow, temperature, and the level of liquid. The superior technical performance
makes the product widely apply in various industrial fields of industrial boiler, water supply
and pipeline transmission to cut off pipeline medium.
Features:
* The new technology for Direct Debugging Switch(DDS) in electric actuators
* More than 50,000 operation life without fault, keep your system operating safely and reliably
* The valve can complete the switch action in 4~7s
* The newest driver technology of quick switch electric actuator makes the valves have no power
consumption at idle time
* Widely adaptability, various connection mode (flange type, wafer type, double plastic union etc. )
* The ball valve is one of the least flow resistances in all valves, even reduced diameter ball valve,
whose flow resistance is quite small.
Specification:
| Valve size | DN15~DN100 | ||
| Power supply | AC220V,AC380V, DC24V | ||
| Temp. | ≤220ºC | ||
| Ambient temp. | -30ºC-60ºC | ||
| Body rating | 0.1~4.0MPa | ||
| Purpose | Quick open and close | ||
| Action time | 4S/7S(optional) | ||
| Applicable medium | Water,Oil,Gas | ||
| End connection | Flange, thread | ||
| Seal type | two-sided sphere seal(zero leakage) | ||
| Test pressure | Body test | 1.76MPa | |
| Seal test | 2.4MPa | ||
| Body material | WCB,SUS304,SUS316 | ||
| Seal ring material | EPDM,PTFE,PPL,metal seat | ||
| Protection level | IP67 | ||
| Manufacturing standard | GB12237-89 AP16D | ||
| Flange standard | JB79 GB9113 ANSI B16.5 JIS B2212 | ||
| Structure and length standard | GB1221-89 | ||
| Inspection standards | JB/T 9092 API598 | ||
Control Diagram
