Product Details
Place of Origin: Wuhan, Hubei, China
Brand Name: Grat
Certification: IP67,CCC, ISO, CE,CNAS
Model Number: EC-00001
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD $100.00/ Piece
Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case
Delivery Time: 3 working days
Payment Terms: L/C, T/T, D/P, PayPal, Western Union
Supply Ability: 1000PCS/Week
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Place Of Origin: |
Wuhan, Hubei, China |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Water |
Material: |
Stainless Steel |
Connection Form: |
Flange |
Driving Mode: |
Electric |
Nominal Pressure: |
PN1.0-32.0MPa |
Channel: |
Tee Type |
Type: |
Fixed Ball Valve |
Temperature: |
High Temperature |
Application: |
Industrial Usage, Water Industrial Usage |
Dead Zone: |
Less Than 0.2% |
Structure: |
Fixed Ball Valve |
Function: |
Bypass-Valve |
Standard: |
DIN |
Size: |
Dn15~200 |
Modulation Accuracy: |
Less Than 0.3% |
HS Code: |
8481804090 |
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Place Of Origin: |
Wuhan, Hubei, China |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Water |
Material: |
Stainless Steel |
Connection Form: |
Flange |
Driving Mode: |
Electric |
Nominal Pressure: |
PN1.0-32.0MPa |
Channel: |
Tee Type |
Type: |
Fixed Ball Valve |
Temperature: |
High Temperature |
Application: |
Industrial Usage, Water Industrial Usage |
Dead Zone: |
Less Than 0.2% |
Structure: |
Fixed Ball Valve |
Function: |
Bypass-Valve |
Standard: |
DIN |
Size: |
Dn15~200 |
Modulation Accuracy: |
Less Than 0.3% |
HS Code: |
8481804090 |
Ultra Short Face-to Face Dimension High Temperature Fixed Ball Valve Electric Ball Valve
Product Description:
Ultra Short Face-to Face Dimension Electric Ball Valve/IP67/ Fixed Ball Valve
Description:
Ultra short face-to-face dimension electric ball valve consists of the EA series electric actuator and
ultra short face-to-face dimension ball valve. The series of products adopt an integrated structure,
whose operation can be controlled by single phase power of three-wire-system, and which have strong
function, small volume, light weight, reliable performance, simple configurement, large flow capacity etc.
Compared with the ordinary electric ball valve, this products present compact structure, small volume,
light weight, near distance between the valve seat and end flange, small materials retention, superior
seal performance, which is suitable for the occasion of strict seal requirement, and which is widely
applied in the fields of chemical, petroleum, pharmaceutical, light industry and so on.
Features:
* Good seal performance, long service life
* Small flow resistance, big flow capacity, suitable for complex working conditions, easy to install.
* Simple structure, easy to operate, high cost-effective.
* Beautiful appearance, compact structure, various choices of sealed form.
* The new technology for Direct Debugging Switch(DDS) in electric actuators.
Specification:
| Power supply | AC220V,AC380V,DC24V |
| Valve size | DN15-100 |
| Medium Temp | -20ºC ~ +350ºC (+200ºC Special seal) |
| Operating pressure | PN16/PN25/PN40/PN64 |
| Action mode | Switch to cut off |
| Body connections | Flange |
| Body material |
A105/F304/F316/WCB/FZG1Cr18Ni9Ti/ZG1Cr18Ni12Mo2Ti/CF8/CF8M/CF3M |
| Plug material | A105/F304/F316/WCB/FZG1Cr18Ni9Ti/ZG1Cr18Ni12Mo2Ti/CF8/CF8M/CF3M |
| Seat materia | PTFE(room temperature),Specialty PPL(high temperature) |
| Leakage | Compliance with standard ANSIB16.104 5. |
| Seal type | Elastic sealing, high temperature resistant digital polystyrene |
| Applicable medium | Water, oil, gas |
| Protection level |
IP67 |

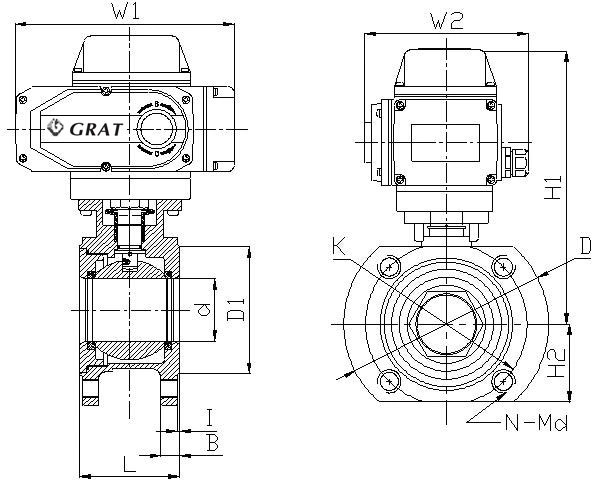

Size
| DN | L | D | K | D1 | N-Md | B | I | H1 | H2 | W1 | W2 |
| 15 | 35 | 95 | 65 | 46 | 4-φM12 | 9 | 2 | 234 | 196 | 145 | 196 |
| 20 | 38 | 100 | 75 | 56 | 4-φM12 | 12 | 2 | 242 | 196 | 145 | 196 |
| 25 | 42 | 110 | 85 | 66 | 4-φM12 | 12.7 | 2 | 218 | 196 | 145 | 196 |
| 32 | 52 | 133 | 100 | 78 | 4-φM16 | 14 | 3 | 231 | 196 | 145 | 196 |
| 40 | 61 | 145 | 110 | 87 | 4-φM16 | 15 | 3 | 238 | 196 | 145 | 196 |
| 50 | 73 | 160 | 125 | 99 | 4-φM16 | 16.7 | 3 | 251 | 196 | 145 | 196 |
| 65 | 92 | 180 | 145 | 118 | 4-φM16 | 17.2 | 3 | 265 | 196 | 145 | 196 |
| 80 | 109 | 195 | 160 | 136 | 8-φM16 | 19 | 3 | 298 | 255 | 184 | 255 |
| 100 | 140 | 215 | 180 | 156 | 8-φM16 | 18.5 | 3 | 310 | 255 | 184 | 255 |
