Stainless Steel Flange Connection Miniature Electric Ball Valve
Product Description:
Ultra Short Face-to Face Dimension Electric Ball Valve/IP67/ Fixed Ball Valve
Description:
This EZ series miniature ball valve with small volume is applied in the technical occasion where the
installation size and the volume are restricted. The series valves are successfully used in many
industrial fields such as air conditioning system, fire-extinguishing system, water treatment system,
pipeline purging, analytical instruments, smoke sampling and so on.
Features:
* More than 100,000 operation life without fault, keep your system operating safely and reliably
* The valve with ultra-miniature volume weights 1.2Kg, whose height is less than 120mm, make
it easy to be installed at any direction of the pipe.
* The valve owns a self-cleaning function, which can effectively guarantee the piping circulating.
* The simple channel, compared with the S channel structure of solenoid valve, has small flow
resistance and no block.
* This valve has the self-lock function. (Self-keeping valve position).
* The valve with simple structure and reliable performance is widely instead of various solenoid
valves with small diameter.
* With the output signal of fully open & fully shut.
Specification:
| Valve size | DN10/DN15/DN20/DN25 |
| Power supply | DC24V,AC110V,AC220V |
| Actuator torque/material | 20Nm/Cast aluminum alloy |
| Temp. | 0~120ºC |
| Ambient temp. | -30ºC-60ºC |
| Body rating | 0.1~6.4MPa |
| Purpose | On-off |
| Action time | 10-15s |
| Application condition | air conditioning system, fire-extinguishing system, water treatment system, pipeline purging, analytical instruments, smoke sampling |
| End connection | NPT,flange,weld,clamp |
| Seal type | Soft seat |
| Body material | SUS304,SUS316 |
| Seal ring material | EPDM,PTFE |
| Protection level | IP67 |
| Installation angle | Install it in any angle. (Prefer to horizontal or inclined installation to extend the service life.) |

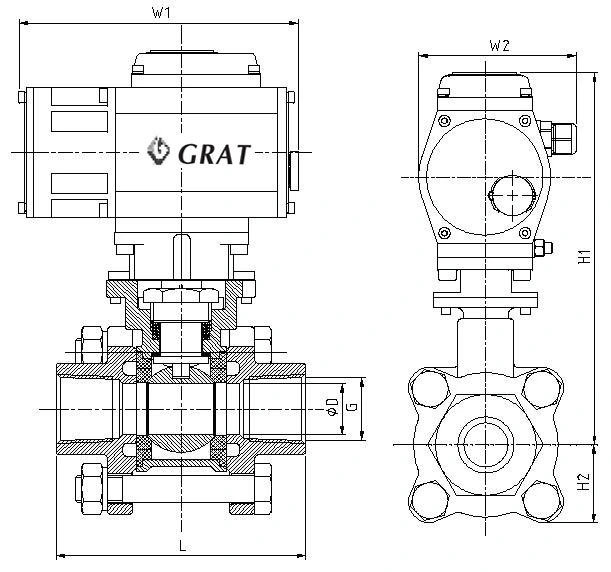

Size
| DN | ΦD | L | Pipe thread | H1 | H2 | W1 | W2 |
| 10 | 10 | 60 | 3/8″ | 152 | 38.8 | 128 | 79 |
| 15 | 15 | 75 | 1/2″ | 152 | 38.8 | 128 | 79 |
| 20 | 20 | 80 | 3/4″ | 159 | 45.4 | 128 | 79 |
| 25 | 25 | 90 | 1″ | 169 | 55.8 | 128 | 79 |
