Product Details
Place of Origin: Wuhan, Hubei, China
Brand Name: Grat
Certification: IP67,CCC, ISO, CE,CNAS
Model Number: EK-000037
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD $10.00-100.00/ Piece
Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case
Delivery Time: 3 working days
Payment Terms: L/C, T/T, D/P, PayPal, Western Union
Supply Ability: 1000PCS/Week
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Place Of Origin: |
Wuhan, Hubei, China |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Water |
Material: |
Stainless Steel |
Connection Form: |
Flange |
Driving Mode: |
Electric |
Nominal Pressure: |
PN1.0-32.0MPa |
Channel: |
Straight Through Type |
Type: |
V Type Ball Valve |
Temperature: |
Normal Temperature |
Application: |
Industrial Usage, Water Industrial Usage, Water, Oil, Nitric Acid, Acetic Acid Etc. |
Structure: |
Fixed Ball Valve |
Function: |
Bypass-Valve |
Standard: |
DIN |
HS Code: |
8481804090 |
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Place Of Origin: |
Wuhan, Hubei, China |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Water |
Material: |
Stainless Steel |
Connection Form: |
Flange |
Driving Mode: |
Electric |
Nominal Pressure: |
PN1.0-32.0MPa |
Channel: |
Straight Through Type |
Type: |
V Type Ball Valve |
Temperature: |
Normal Temperature |
Application: |
Industrial Usage, Water Industrial Usage, Water, Oil, Nitric Acid, Acetic Acid Etc. |
Structure: |
Fixed Ball Valve |
Function: |
Bypass-Valve |
Standard: |
DIN |
HS Code: |
8481804090 |
3 Way Clamp Connection Stainless Steel on-off Type Electric Ball Valve
Product Description:
3 Way Clamp Connection Stainless Steel on-off Type Electric Ball Valve/IP67/ Fixed Ball Valve
Description:
With the excellent regulation performance, V Type electric control ball valve is widely applied in
various industrial fields of petroleum and chemical, fine chemical, papermaking, metallurgy, boiler
feed water to realize the high precision regulation.
Features:
* Control characteristics
* 100000 times long service life
* The patent positioning technology
* Miniature design
* Good seal performance
* The valve owns a self-cleaning function to effectively guarantee the piping circulating
* High modulation precision
Specification:
| Valve size | DN15-DN200 |
| Body rating | PN1.6~6.4MPa |
| Body connections | Flange |
| Seat type | PTFE Soft seal |
| Body material | SUS304/SUS316/WCB |
| Plug material | SUS304/SUS316/WCB |
| Action time | 15S/30S |
| Power supply | AC220V/AC380V/DC24V |
| Control signal | 4~20mA/0~5V |
| Output signal | 4~20mA/0~5V |
| Operating pressure | PN1.6Mpa/PN2.5Mpa/PN6.4Mpa |
| Medium Temp | ≤220ºC |
| Ambient Temp | ≤50ºC |
| Flow coefficient(CV) | Please download the data on our website for reference |
| Applicable medium | Food, lubrication, fibrous liquid, water, oil, gas |
| Dead zone | 0.5% |
| Repeatability error | 0.5% |

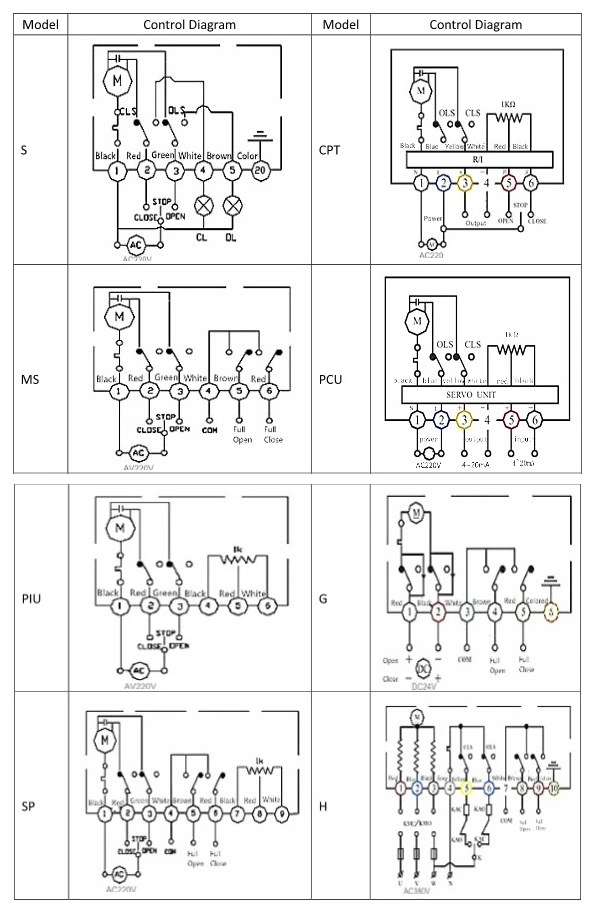

Installation Diagram
Packing & Shipping:
