Carbon Steel ANSI600lb Flange Connection Automatic Ball Valve
Product Description:
Carbon Steel ANSI600lb Flange Connection Automatic Ball Valve/IP67/Fixed Ball Valve
Description:
Flange electric ball valve is a rotating ball valve with the angle range from 0 degree to 90 degree, which
presents good seal performance, large flow capacity, small flow resistance coefficient, simple structure,
convenient maintenance, long service life.
Specification:
| Power supply | AC220V AV380V DC24V |
| Valve size | DN15-200 |
| Medium Temp | from -20°C to +350°C (+200°CSpecial seal). |
| Working pressure | PN16~PN100 |
| Input signal | 4-20mA |
| Output signal | 4-20mA |
| Connection | Wafer |
| Body material | A105,F304,F316,WCB,FZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti,CF8,CF8M,CF3M |
| Seat material | PTFE(room temperature),Specialty PPL(high temperature),Metal seal(high temperature) |
| Leakage | complied with the standards of ANSIB16.104 5 grade |
| Seal type | Springiness seal, digital polystyrene seal of high temperature resistance, hard alloy seal and industrial ceramics seal |
| Applicable medium | Water, oil, nitric acid, acetic acid, viscous liquid, slurry , strong oxidizing medium |
| Protection levels | IP67 |
| Manufacture standard | JB/T8692-1998 |
| Design standards | GB12237-89 AP16D |
| Flange standards | JB79 GB9113 ANSI B16.5 JIS B2212 |
| Structure length standards | GB1221-89 |
| Inspection standards | JB/T 9092 API598 |

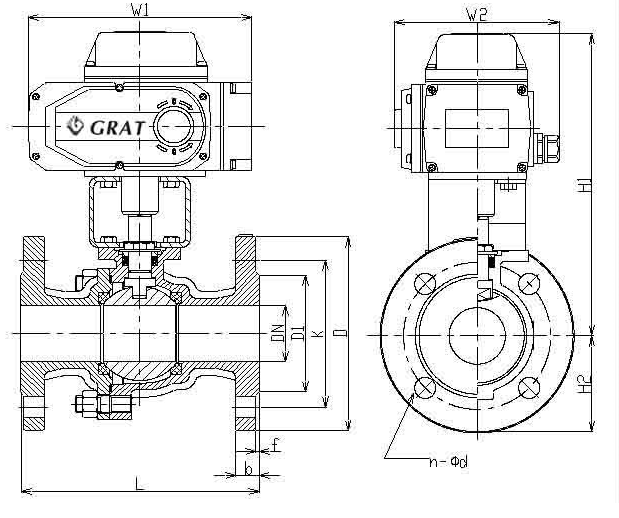

Installation size drawing
|
DN(mm) 1.6Mpa |
L |
D |
K |
D1 |
n-Φd |
b |
f |
H1 |
H2 |
W1 |
W2 |
Weight |
|
15 |
130 |
95 |
65 |
46 |
4-Φ14 |
14 |
2 |
250 |
50 |
196 |
145 |
|
|
20 |
140 |
105 |
75 |
56 |
4-Φ14 |
16 |
2 |
255 |
55 |
196 |
145 |
|
|
25 |
150 |
115 |
85 |
65 |
4-Φ14 |
16 |
2 |
260 |
60 |
196 |
145 |
|
|
32 |
165 |
135 |
100 |
76 |
4-Φ18 |
18 |
3 |
270 |
70 |
196 |
145 |
|
|
40 |
180 |
145 |
110 |
84 |
4-Φ18 |
18 |
3 |
275 |
75 |
196 |
145 |
|
|
50 |
200 |
160 |
125 |
99 |
4-Φ18 |
20 |
3 |
285 |
85 |
196 |
145 |
|
|
65 |
220 |
180 |
145 |
118 |
4-Φ18 |
20 |
3 |
350 |
95 |
255 |
184 |
|
|
80 |
250 |
195 |
160 |
132 |
8-Φ18 |
20 |
3 |
360 |
100 |
255 |
184 |
|
|
100 |
280 |
215 |
180 |
156 |
8-Φ18 |
22 |
3 |
370 |
110 |
255 |
184 |
|
|
125 |
320 |
245 |
210 |
184 |
8-Φ18 |
22 |
3 |
380 |
125 |
255 |
184 |
|
|
150 |
360 |
280 |
240 |
211 |
8-Φ22 |
24 |
3 |
390 |
140 |
255 |
184 |
|
|
200 |
400 |
335 |
295 |
266 |
12-Φ22 |
24 |
3 |
420 |
170 |
255 |
184 |

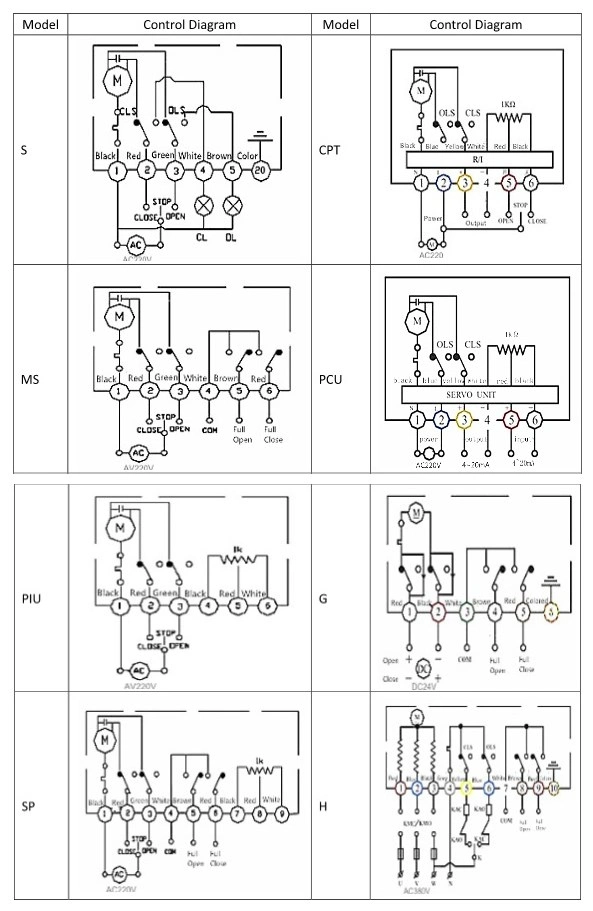

Control Diagram
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
| PIU | ON/OFF,output 0~1000Ω signal | G | ON/OFF,output passive contact signal |
| SP | ON/OFF,middle position control | H | ON/OFF,output passive contact signa |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
