3 Way Multi Control Stainless Steel Ball Valve with Electricity Motorized Actuator
Product Description:
3 Way Multi Control Stainless Steel Ball Valve with Electricity Motorized Actuator /IP67/ V Type Ball Valve
Description:
With the excellent regulation performance, V Type electric control ball valve is widely applied
in various industrial fields of petroleum and chemical, fine chemical, papermaking, metallurgy,
boiler feed water to realize the high precision regulation.
Features:
* Control characteristics
* 100000 times long service life

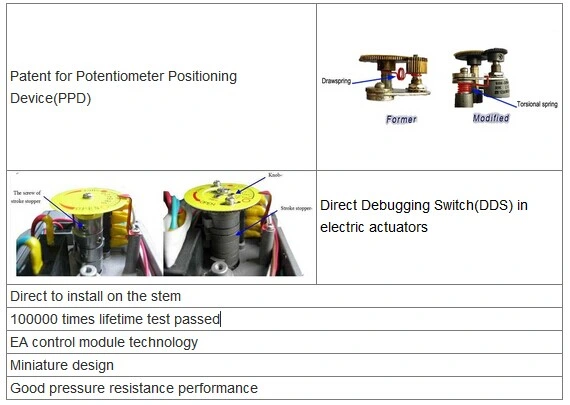

* The patent positioning technology
* Miniature design
* Good seal performance
* The valve owns a self-cleaning function to effectively guarantee the piping circulating
* High modulation precision
Specification:
| Valve size | DN15-DN200 |
| Body rating | PN1.6~6.4MPa |
| Body connections | Flange |
| Seat type | PTFE Soft seal |
| Body material | SUS304/SUS316/WCB |
| Plug material | SUS304/SUS316/WCB |
| Action time | 15S/30S |
| Power supply | AC220V/AC380V/DC24V |
| Control signal | 4~20mA/0~5V |
| Output signal | 4~20mA/0~5V |
| Operating pressure | PN1.6Mpa/PN2.5Mpa/PN6.4Mpa |
| Medium Temp | ≤220ºC |
| Ambient Temp | ≤50ºC |
| Flow coefficient(CV) | Please download the data on our website for reference |
| Applicable medium | Food, lubrication, fibrous liquid, water, oil, gas |
| Dead zone | 0.5% |
| Repeatability error | 0.5% |

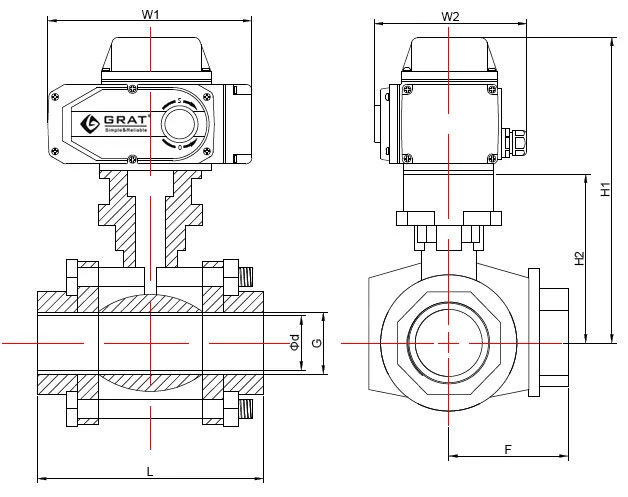

Installation Size
| Diameter (DN) |
L | G | Φd | F | H1 | H2 | W1 | W2 |
| 12 | 70 |
Thread Standard: BSP DIN etc |
12 | 40 | 196 | 38 | 196 | 145 |
| 15 | 83 | 15 | 42 | 198 | 40 | 196 | 145 | |
| 18 | 89 | 18 | 54 | 208 | 50 | 196 | 145 | |
| 25 | 116 | 25 | 60 | 217 | 59 | 196 | 145 | |
| 32 | 134 | 32 | 68 | 228 | 70 | 196 | 145 | |
| 38 | 152 | 38 | 84 | 232 | 74 | 196 | 145 | |
| 50 | 200 | 50 | 98 | 251 | 93 | 196 | 145 | |
| 65 | 240 | 65 | 106 | 302 | 110 | 255 | 182 | |
| 80 | 278 | 80 | 114 | 325 | 133 | 255 | 182 |

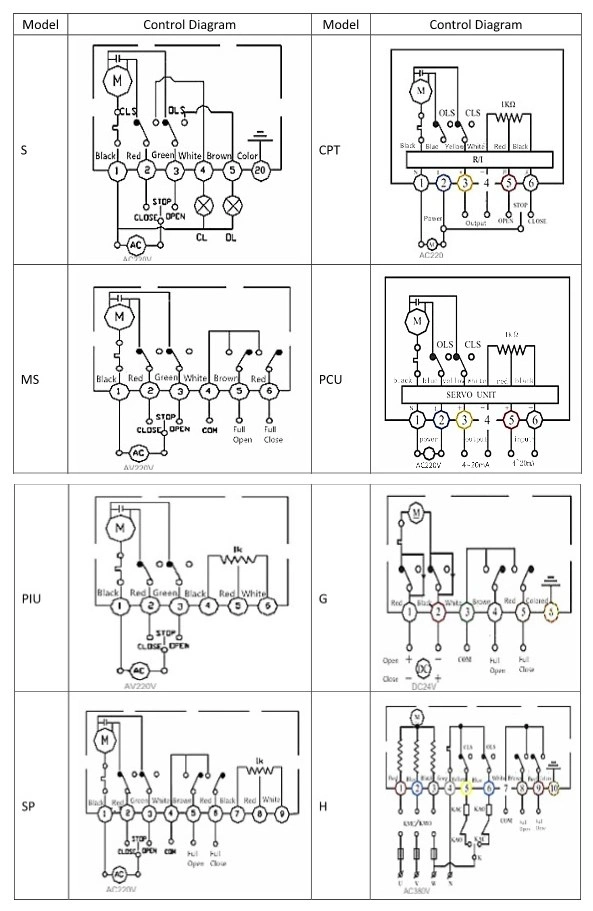

Installation Diagram
