Wuhan Grat Control Valve Co., Ltd. nukiz@grat.com.cn 86-027-6070-6977
Product Details
Place of Origin: Wuhan, Hubei, China
Brand Name: Grat
Certification: IP67,CCC, ISO, CE,CNAS,SIL
Model Number: EV-1001
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD $100.00/ Piece
Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case
Delivery Time: 3 working days
Payment Terms: L/C, T/T, D/P, PayPal, Western Union
Supply Ability: 1000PCS/Week
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Place Of Origin: |
Wuhan, Hubei, China |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Oil |
Material: |
Stainless Steel |
Connection Form: |
Thread |
Driving Mode: |
Electric |
Nominal Pressure: |
PN1.0-32.0MPa |
Channel: |
Straight Through Type |
Type: |
Fixed Ball Valve |
Temperature: |
Normal Temperature |
Application: |
Industrial Usage, Water Industrial Usage |
Medium: |
Water, Oil, Gas |
Specification: |
DN15~DN100 |
Structure: |
Fixed Ball Valve |
Function: |
Bypass-Valve |
Standard: |
ISO |
Input Signal: |
4-20mA |
Output Signal: |
4-20mA |
HS Code: |
8481804090 |
Brand Name: |
GRAT |
Minimum Order Quantity: |
1 Pc |
Place Of Origin: |
Wuhan, Hubei, China |
Delivery Time: |
3 Working Days |
Packaging Details: |
Carton/Wooden Box |
Payment Terms: |
LC, T/T, D/P, PayPal, Western Union |
Media: |
Oil |
Material: |
Stainless Steel |
Connection Form: |
Thread |
Driving Mode: |
Electric |
Nominal Pressure: |
PN1.0-32.0MPa |
Channel: |
Straight Through Type |
Type: |
Fixed Ball Valve |
Temperature: |
Normal Temperature |
Application: |
Industrial Usage, Water Industrial Usage |
Medium: |
Water, Oil, Gas |
Specification: |
DN15~DN100 |
Structure: |
Fixed Ball Valve |
Function: |
Bypass-Valve |
Standard: |
ISO |
Input Signal: |
4-20mA |
Output Signal: |
4-20mA |
HS Code: |
8481804090 |

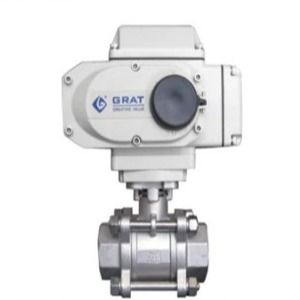

Stainless Steel SS316 BSP Inner Thread DC24V Electrical Control Valve
Product Description:
Stainless Steel SS316 BSP Inner Thread DC24V Electrical Control Valve/IP67/ Fixed Ball Valve
Description:
Electric screw ball valve lock covers the services of large pressure drops and easy blocking to quickly switch
and cut off the medium of pipeline, whose superior product performance and cost-effective far exceeds
the competitive products of solenoid valve.
Specification:
| Power supply | AC220V 50/60HZ |
| Body ratings | DN15-100 |
| Medium Temp | ≤220°C |
| Ambient Temp | ≤50°C |
| Operating pressure | PN16, PN25, PN40 |
| Action mode | Switch to cut off |
| Body connections | Flange type, connecting thread |
| Body material | Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB |
| Plug material | Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB |
| Leakage | Compliance with the standards ANSIB16.104 5 |
| Seal type | Two-sided sphere seal |
| Applicable medium | Water, oil, gas |
| Protection level | IP67 |
| Dead zone | 0.5% |
| Repeatability error | 0.5% |
| Manufacturing standards | JB/T8692-1998 |

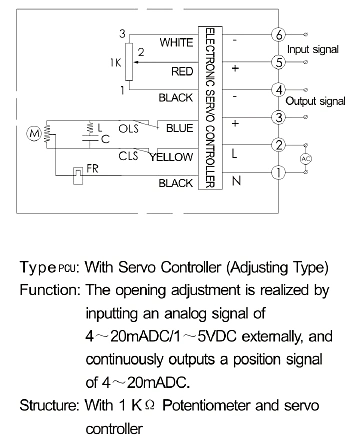

Constrol Diagram
Packing & Shipping:
