ISO 5211 High Pad Electric Actuated Ball Valve Stainless Steel Thread Connection

Product Details

Place of Origin: Wuhan, Hubei, China

Brand Name: Grat

Certification: IP67,CCC, ISO, CE,CNAS

Model Number: EV-0000176

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: USD $100.00/ Piece

Packaging Details: Inner with bubble wrap, outer with cardboard box and wooden case

Delivery Time: 3 working days

Payment Terms: L/C, T/T, D/P, PayPal, Western Union

Supply Ability: 1000PCS/Week

Get Best Price
Product Details
Highlight:

ISO 5211 Electric Actuated Ball Valve

,

High Pad Electric Actuated Ball Valve

Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Place Of Origin:
Wuhan, Hubei, China
Delivery Time:
3 Working Days
Packaging Details:
Carton/Wooden Box
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Water
Material:
Stainless Steel
Connection Form:
Thread
Driving Mode:
Electric
Nominal Pressure:
PN1.0-32.0MPa
Channel:
Straight Through Type
Type:
Fixed Ball Valve
Temperature:
Normal Temperature
Application:
Industrial Usage, Water Industrial Usage
Input Signal:
Switch Signal/4-20mA
Size:
Dn15-250
Structure:
Fixed Ball Valve
Function:
Bypass-Valve
Standard:
ISO
HS Code:
8481804090
Brand Name:
GRAT
Minimum Order Quantity:
1 Pc
Place Of Origin:
Wuhan, Hubei, China
Delivery Time:
3 Working Days
Packaging Details:
Carton/Wooden Box
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Water
Material:
Stainless Steel
Connection Form:
Thread
Driving Mode:
Electric
Nominal Pressure:
PN1.0-32.0MPa
Channel:
Straight Through Type
Type:
Fixed Ball Valve
Temperature:
Normal Temperature
Application:
Industrial Usage, Water Industrial Usage
Input Signal:
Switch Signal/4-20mA
Size:
Dn15-250
Structure:
Fixed Ball Valve
Function:
Bypass-Valve
Standard:
ISO
HS Code:
8481804090
Product Description

Stainless Steel ISO 5211 High Pad Electricity Driven Ball Valve​


Product Description:



Stainless Steel ISO 5211 High Pad Electricity Driven Ball Valve/IP67/Fixed Ball Valve



Description:
Flange Connection Wcb Electric Regulating Ball Valve



With the performance of small flow regulating and high precision control, electric mini ball valve can

be controlled by control signal and single phase power to satisfy various regulating requirement for

tiny flow in pressure, flow, temperature, and the level of liquid etc.



Specification:




Valve size DN15-DN250
Body ratings PN1.6MPa
Body connections Wafer,Flange
Seat type Stainless steel moveable metal seal,PTFE soft seal
Action time 30 S(0-90°)
Power supply  AC220V
Control signal  4~20mA 0~5V
Output signal  4~20mA 0~5V
Operating pressure PN1.6Mpa PN2.5Mpa
Medium Temp ≤350°C
Ambient Temp ≤50°C
Flow coefficient(CV):   Please download the data on our website for reference
(Custom flow coefficient depends on the customer's requirement.)

Applicable medium Mine pulp, coal pulp, paper pulp, water, oil, gas
Dead zone  0.5%
Repetition error 0.5%
Body material SUS304 SUS316 WCB

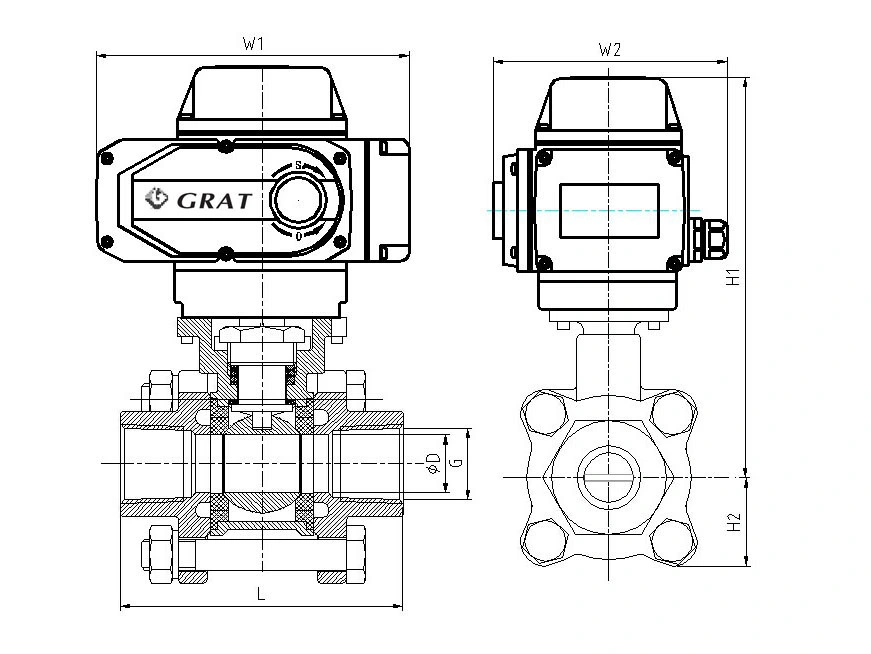

Figure and connection size
Stainless Steel ISO 5211 High Pad Electricity Driven Ball Valve

Valve  size DN(mm)



A



φd



H1



H2



H



F

15

62

54

74

75

390

210

20

62

54

74

75

390

210

25

62

54

74

75

390

210

32

62

78

80

75

400

210

40

62

82

85

75

405

210

50

75

100

87

95

430

210

65

80

120

105

115

460

210

80

100

131

115

125

520

270

100

115

158

125

125

530

270

125

130

180

140

155

570

270

150

160

216

153

165

600

270

200

200

260

200

195

680

270

250

240

325

225

225

730

270


The material of standard structure



Part name

Material

Body

Carbon steel ASTM A216 WCC

Body lining

high-chromium steel ASTM A532 Grade III Type A

"V" ball

high-chromium steel ASTM A532 Grade III Type A

Seal ring

high-chromium steel ASTM A532 Grade III Type A

Fixed seal ring

Carbon steel ASTM A105

Bearing guard

high-chromium steel ASTM A532 Grade III Type A

Bearing

44oC58Rc

Driving shaft

17-4PH Cond.H1025

Driven shaft

17-4PH Cond.H1025

Pin

Carbon steel, zincification

Gasket

Graphite stainless steel wire

Packing

PTFE, filling carbon

Stuffing box ring and guard

316 SST

Bolt

SA-193-B7

Nut

SA-194-2H

Fixed ring bolt and lock

316 SST

(optional)Seal ring lining

PSZ Ceramic

"V" ball(optional)

PSZ Ceramic


Maximum allowable leakage



Valve size DN(mm)

Metal seat

Soft seat

15

1.1ml/min

0.12ml/min

20

1.5ml/min

0.16ml/min

25

2.0ml/min

0.20ml/min

32

2.4ml/min

0.24ml/min

40

3.0ml/min

0.30ml/min

50

3.8ml/min

0.38ml/min

65

5.2ml/min

0.52ml/min

80

6.2ml/min

0.62ml/min

100

7.6ml/min

0.76ml/min

125

9.6ml/min

0.96ml/min

150

12.0ml/min

1.20ml/min

200

15.4ml/min

1.54ml/min

250

19.2ml/min

1.92ml/min

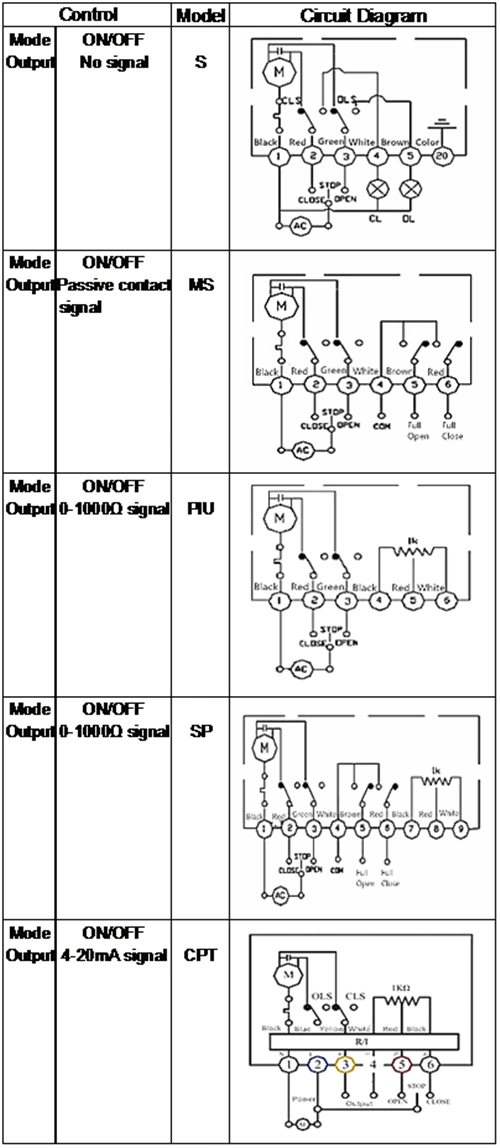

Control Diagram



Stainless Steel ISO 5211 High Pad Electricity Driven Ball Valve



Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
